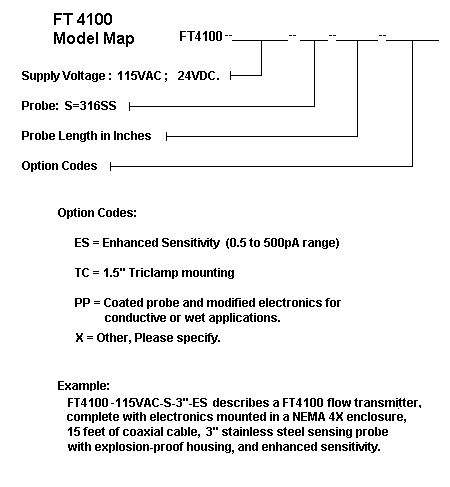

Ordering Information

Brochure

FT 4100 Flow Transmitter

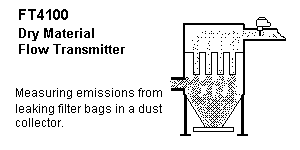

The FT4100 allows simple, no calibration, "plug and play" monitoring of filter conditions in a baghouse or dust collector. The solid 316SS probe is placed in the discharge duct of the dust collector. Dust particles passing by the probe induce an electrical charge that is carried along the low noise coaxial cable to the control unit. The control unit displays the sensed values, alarms and provides a 4-20mA output proportional to the level of emissions. For applications that have electrically conductive dusts, condensate or moisture which would cause a build-up on the sensing probe we offer a system with a coated probe that will be unaffected by such conditions; please specify option "PP" when ordering for this option. LCD Display A semi-circular bar graph displays the dust leakage levels on a logarithmic scale (field selectable linear scale is also standard). The bar graph corresponds to a real time digital readout. A flashing "Alarm" and "Pre-Visible" message signals when set. points have been exceeded. One segment of the bar graph will hold the peak value reading allowing operators to observe the peak value in a fast changing environment. Alarms and Outputs Dust emissions occur at two different times and at two different levels in a dust collector. The first is the baseline emission level, which is the normal leakage whenever the collector is in operation. Typically a higher emission level occurs when the filters are being pulsed or cleaned by reverse air.

The FT4100 allows the operator to precisely set the alarm setpoint when the baseline leakage increases, when the peak levels during cleaning increase or both! A time delay (0-60 seconds) is user programmable via the keypad to filter out nuisance alarms for both setpoints. One on-board relay is the output for both alarm signals. A 4-20mA signal proportional to the dust leakage is provided for recording or remote monitoring of the dust filters condition.

No Calibration - Auto-Ranging
2 Setpoints for Alarm
4-20mA Output for Recording
LCD Bar-Graph Display
Real-Time Digital Readout
Peak Value Capture Display
Lockable Keypad

Comply with EPA Filter Leak Regulations
Monitor Filter Performance without Prior Baseline Data
Protect Downstream Equipment Eliminate Unplanned Shutdowns
Prevent Product Loss and Cleanup

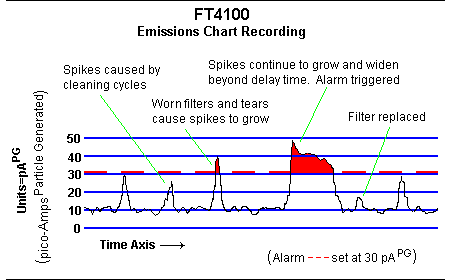

Emission Detection Example The following illustration shows how a chart recorder can be used to record emission history and predict bag house or cartridge filter failure.
