LS-6000 Level Switch |
 |
Product
Description Calibration Construction Specifications Ordering Information |
 |
Operation and Maintenance
Manual |
| Description |
| The LS6000 is a basic, general-purpose level switch that can measure virtually any liquid, dry material or interface of electrically conductive or non-conductive products. The proprietary radio frequency (RF) balanced impedence bridge has exceptional temperature stability, thus eliminating the need to recalibrate the unit from season to season. |
| Calibration |
| All
the necessary calibration indicators are on-board so all you need
to calibrate the LS6000 is a small screwdriver. When the probe is installed, it is calibrated in absence of material touching the probe. When the desired material comes in contact with the probe, the LS6000 is activated and gives the desired output. If the probe you ordered is too long, simply cut it off to the desired length with a saw. If you need to add length, just weld on additional rods. Probes of all lengths are available from the factory. Fail-safe electronics provide peace of mind. The modular electronics make trouble shooting and repair a snap. The entire unit is backed by our two year warranty. |
| Construction |
| The probe is made of solid 316 stainless steel rod and the insulator is made of Delrin. The seals are made with Viton "O" rings. All the electronics are housed in a cast aluminum explosion-proof enclosure. |
| Specifications |
| Power: | 120VAC (+/- 15%) 50/60Hz, 2 watts, standard. 230VAC, 12VDC and 24VDC are optional. |
| Output: | 2 Form C contacts, DPDT relay, 5Amp resistive at 125VAC, 230VAC; 30VDC. |
| Fail Safe: | Selectable high or low level. |
| RF Frequency: | Approximately 1.3 MHz. |
| Vessel Entry: | 1 NPT |
| Conduit Entry: | 1 NPT |
| Hazardous Area: | Class I, Group C, D. Class II, Group E,F,G. |
| Temperature: | Probe:
-30 deg F to +250 deg F Electronics: -40 deg F to 385 deg F Note - High temperature ratings are available, contact the factory with your application data. |
| Pressure: | 1500
psi @ 75 deg F. Note - High pressure ratings are available, contact the factory with your application data. |
| Construction: | Probe:
All wetted parts 316SS, Delrin and Viton. Electronics: Housed in cast aluminum explosion-proof enclosure. |
| Specifications are subject to change without notice. | |
|
|
|

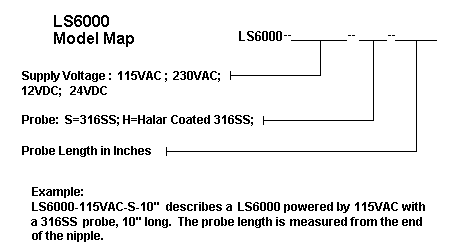

| ORDERING CHART | ||
| P/N | Description |
Order
Now!
|
| BA LS6000-115VAC-H-10 | Babbitt LS 6000-115VAC-H-10 Level Switch |
 |
| BA LS6000-115VAC-HRK-24 | Babbitt LS 6000-115VAC-HRK-24" Hot Removal Kit |
|
| BA LS6000-115VAC-S-10 | Babbitt LS 6000-115VAC-S-10 Level Switch |
|
| BA LS6000-E-115VAC | Babbitt LS6000-ELECTRONICS-115VAC |
|
| BA LS6000-E-12VDC | Babbitt LS6000-ELECTRONICS-12VDC |
|
| BA LS6000-E-240VAC | Babbitt LS6000-ELECTRONICS-240VAC |
|
| BA LS6000-E-24VDC | Babbitt LS6000-ELECTRONICS-24VDC |
|
| BA LS6000-HOUSING | Babbitt LS6000 HOUSING |
|
| BA LS6000-H-PROBE-10 | Babbitt LS6000-H-PROBE ASSEMBLY 10" |
|
| BA LS6000-S-PROBE-10 | Babbitt LS6000-S-PROBE ASSEMBLY 10" |
|
| Part # |
Description |
|
| LS6000115ACS10 | Level Switch LS6000, 115VAC, 10" 316SS Probe | |
| LS6000115ACH10 | Level Switch LS6000, 115VAC, 10" Halar Probe | |
| 12VDC, 24VDC & 240VAC Option | ||
| EXTENDED PROBES | ||
| 1/2" Dia. | 316SS |
|
| Halar Coated Probe |
|
|
| OPTIONS | ||
| LS6000TINSUL | Teflon Insulator (replaces DELRIN) |
|
| LS600075X10 | 3/4" dia. x 10" Probe |
|
| SPARE PARTS | ||
| LS6000ELEC | Electronics Module LS6000 (Specify Voltage) | |
| LS6000SPROBE10 | Probe Assembly LS6000 10" 316SS | |
| LS6000HPROBE10 | Probe Assembly LS6000 10" Halar Coated | |
| LS6000HOUSING | Housing LS6000, CL1, Gp C, D, CL II, Gp E, F, G, CL III | |
|
APPLICATION NOTES: |
|
 |
Delrin Insulator is standard. |
|
Do not use Delrin in applications with steam. |
|
Cable probes and special materials of construction available. |
|
3/4"NPT process connection is optional at no charge. |
