Model LS8000/2 Multi-Point Level Switch |
 |
OWNERS MANUAL
|
Go back |
 |
 |
 |
 |
 |
 |
 |
|

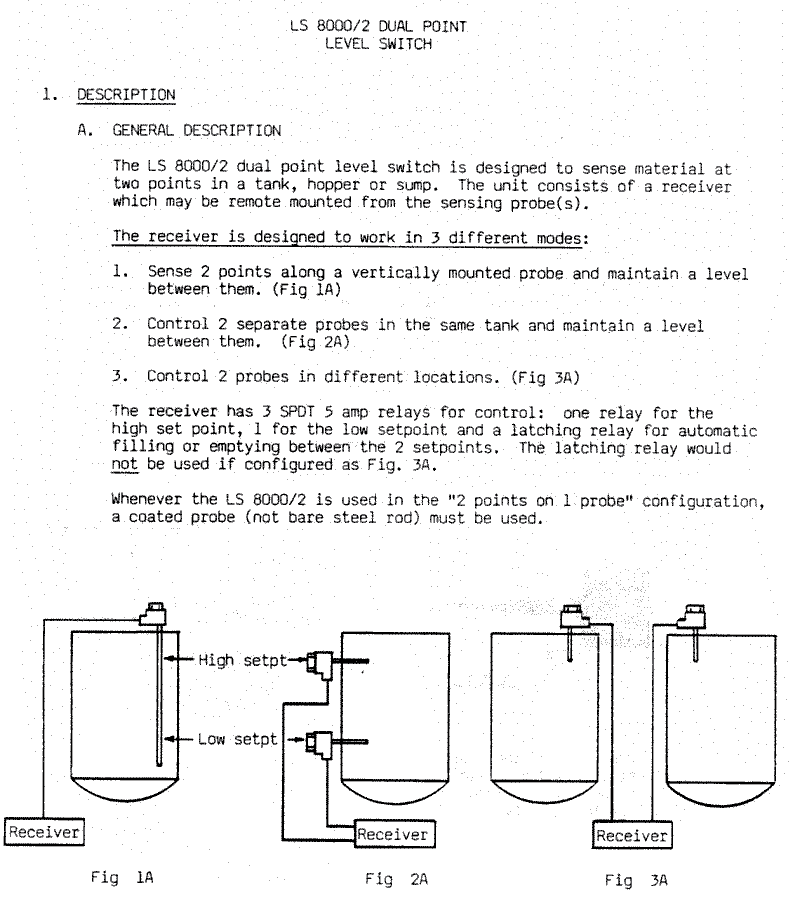

LS8000/2
O&M Page 1
|

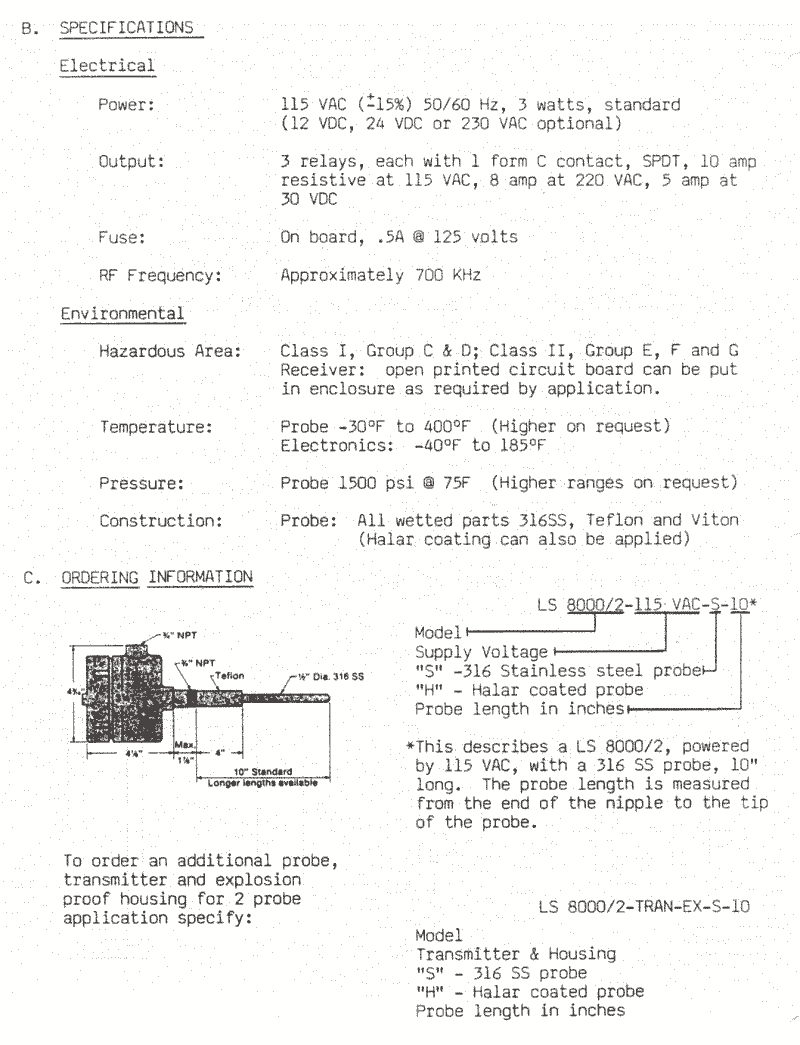

LS8000/2
O&M Page 2
|

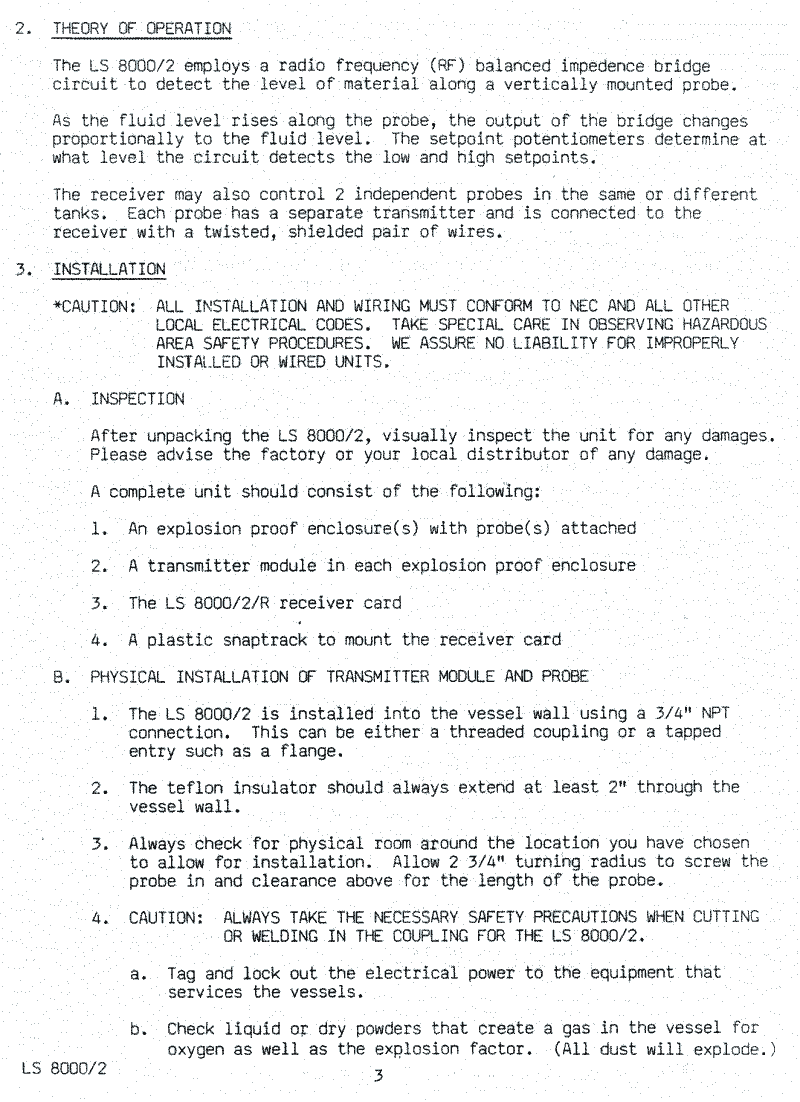

LS8000/2
O&M Page 3
|

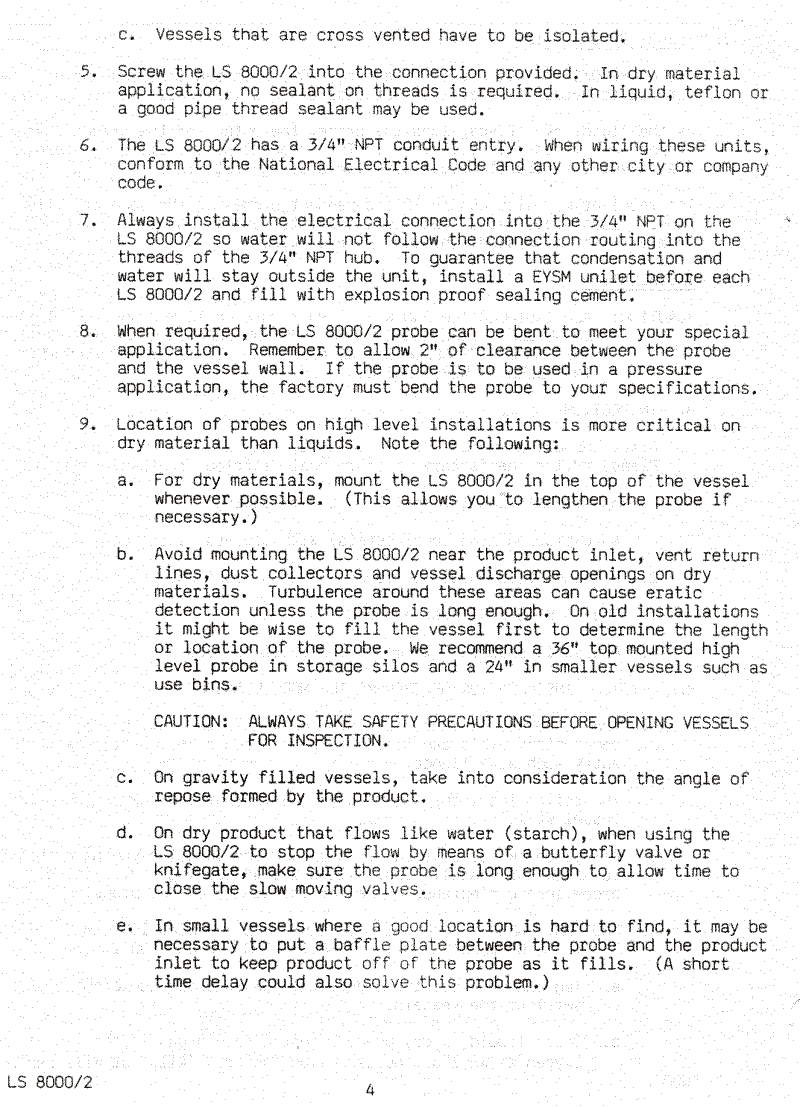

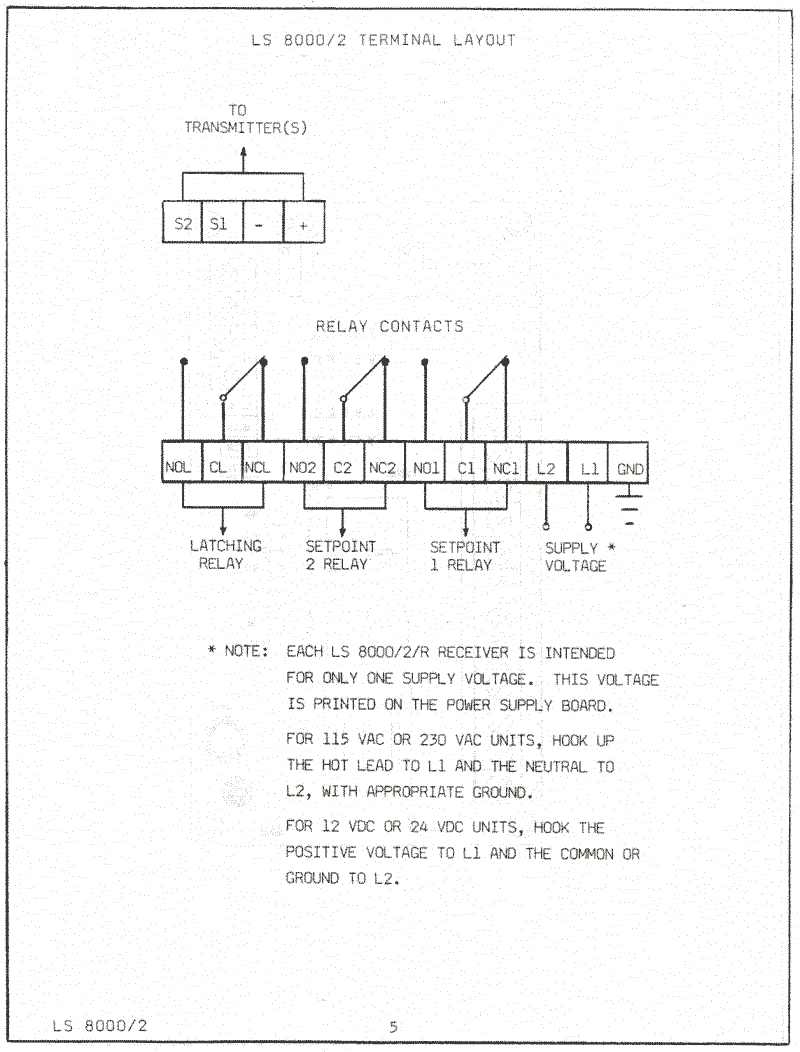

LS8000/2 O&M Page 4 | LS8000/2 O&M Page 5 |

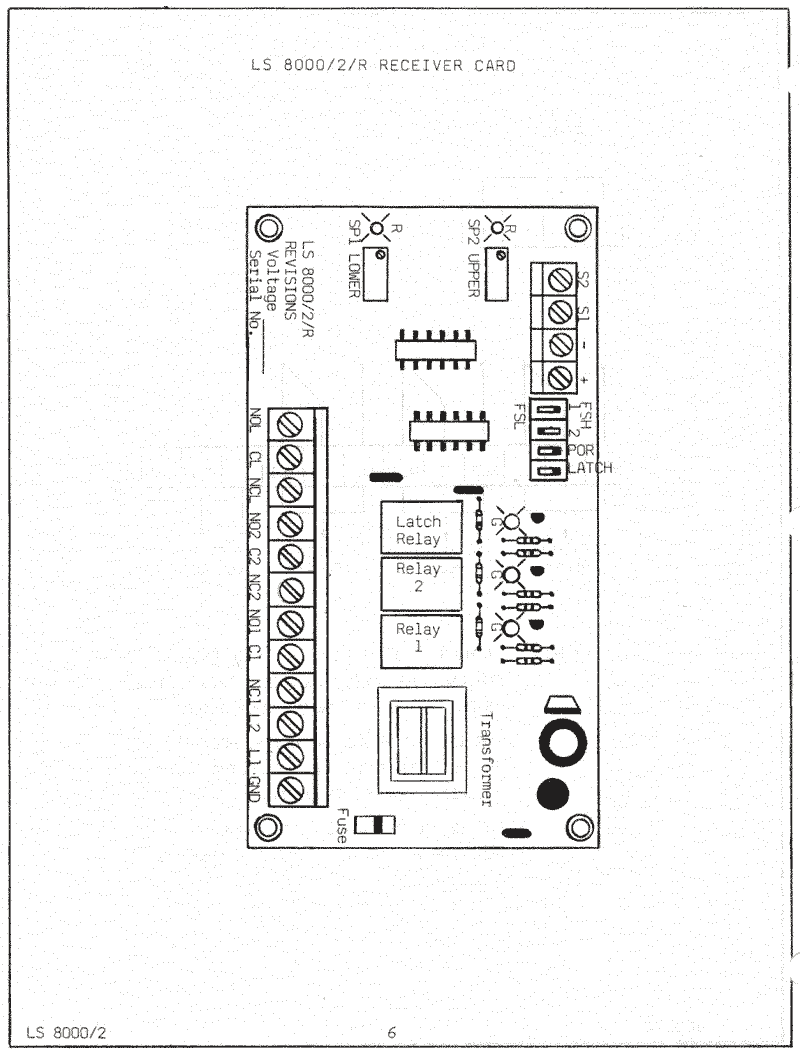

LS8000/2
O&M Page 6
|
 |
 |
 |
 |
 |
 |
|

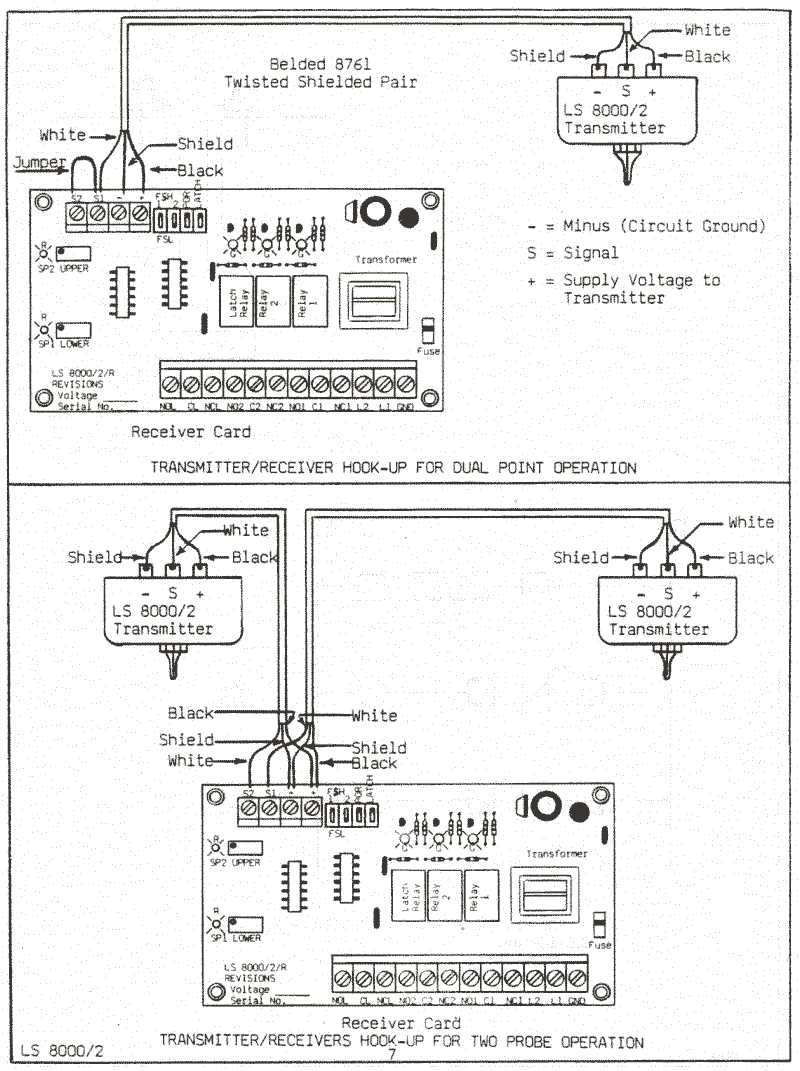

LS8000/2
O&M Page 7
|

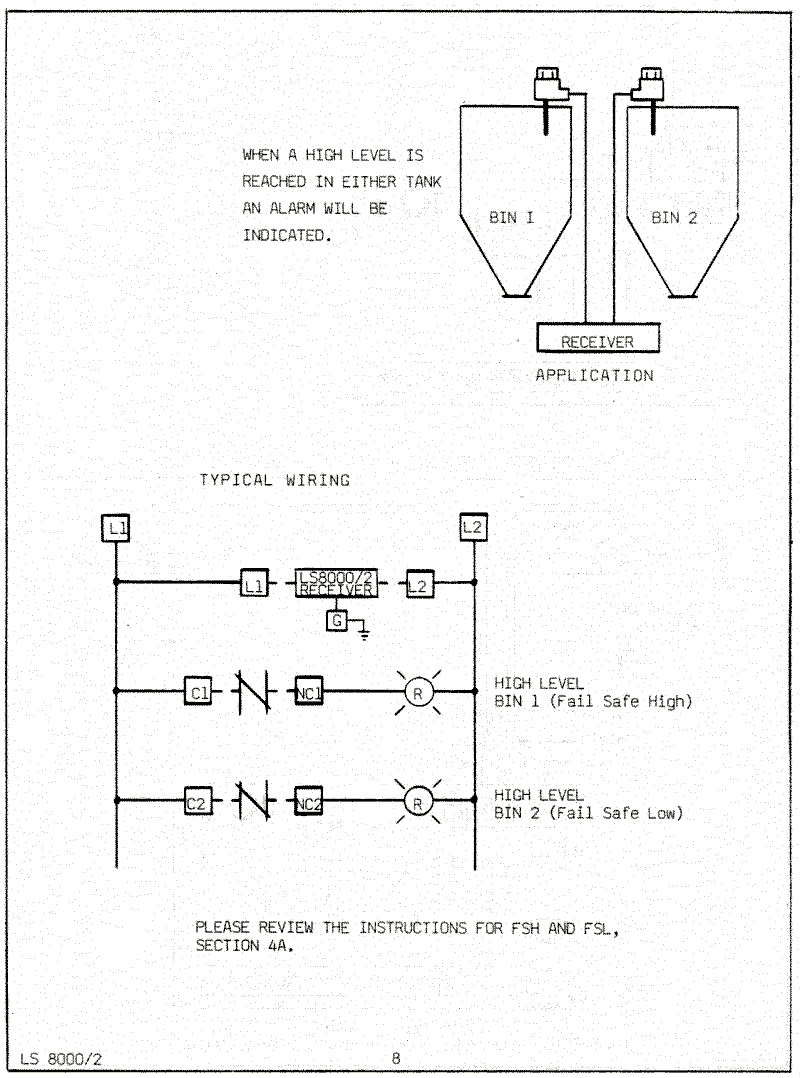

LS8000/2
O&M Page 8
|

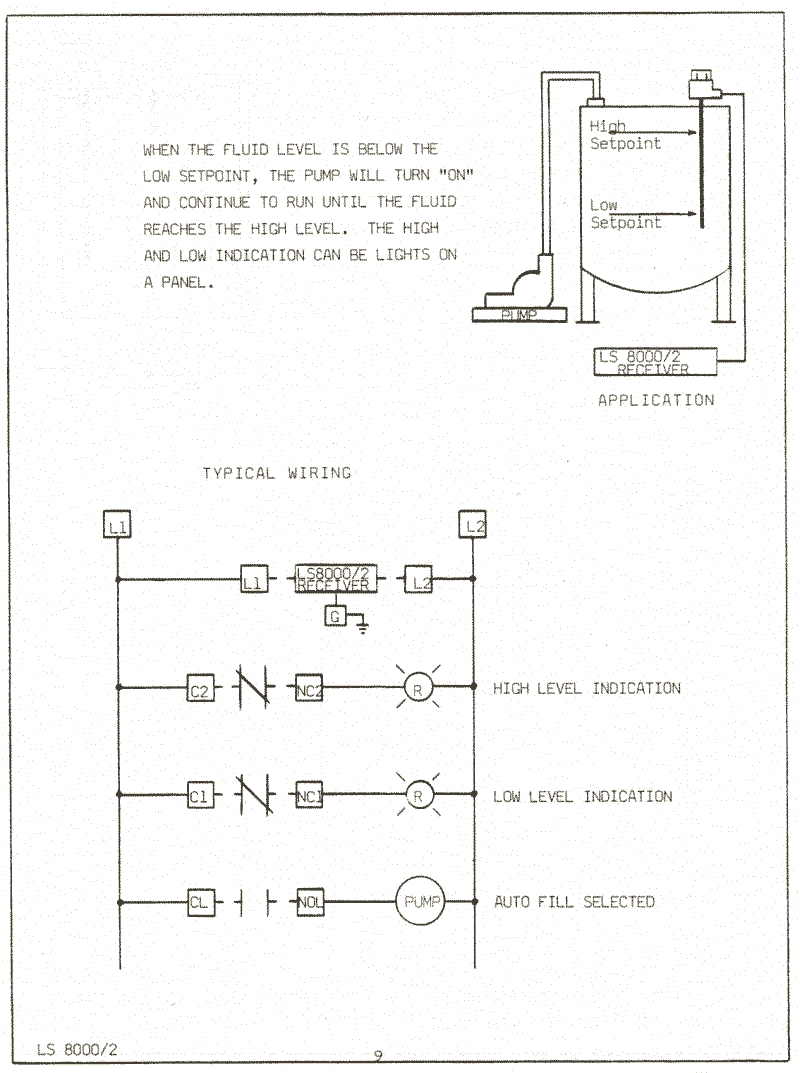

LS8000/2
O&M Page 9
|

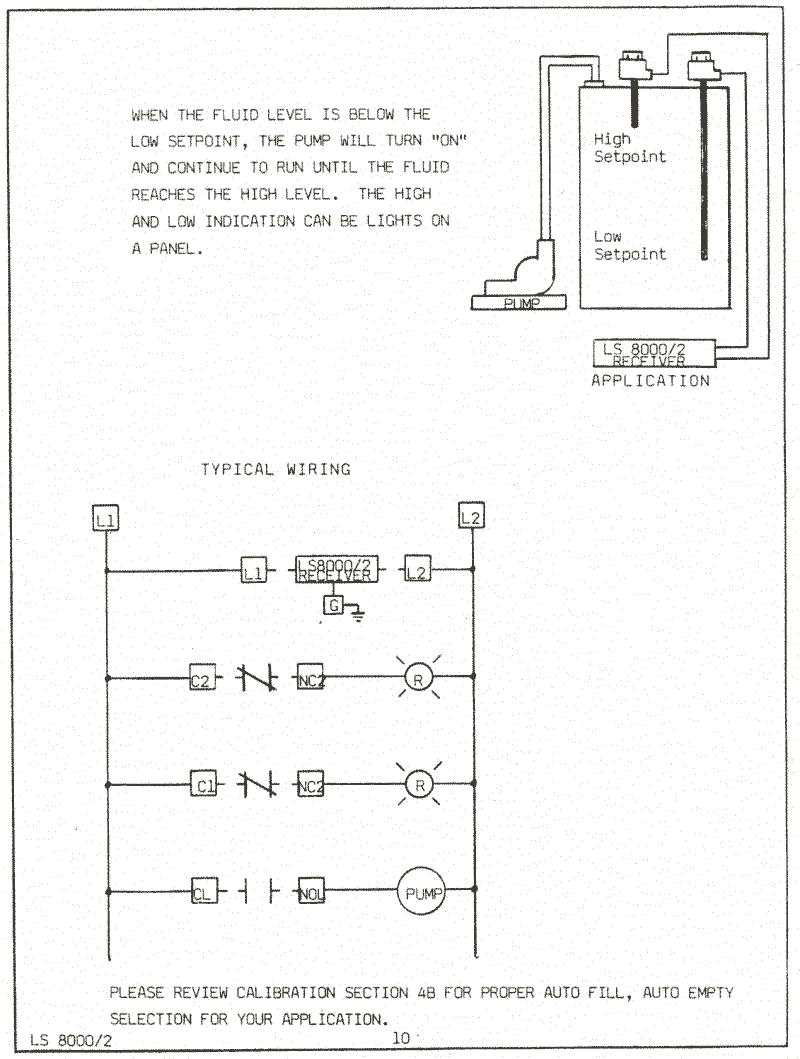

LS8000/2
O&M Page 10
|

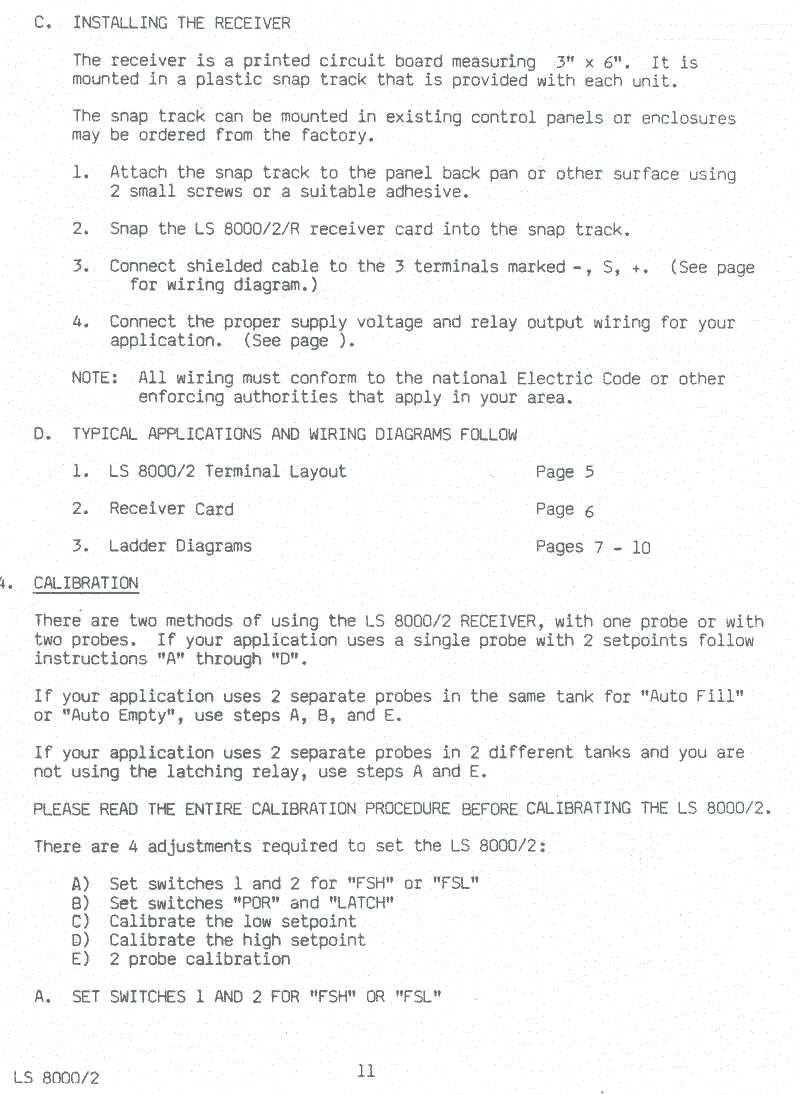

LS8000/2
O&M Page 11
|

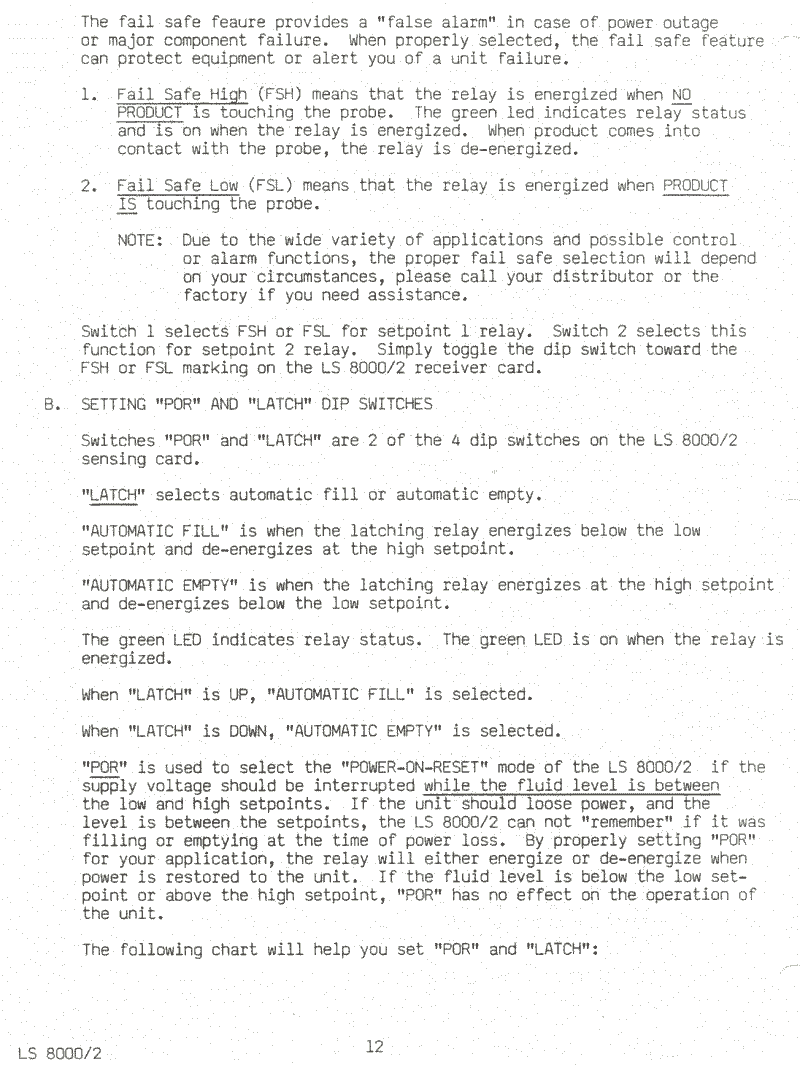

LS8000/2
O&M Page 12
|
 |
 |
 |
 |
 |
|
|

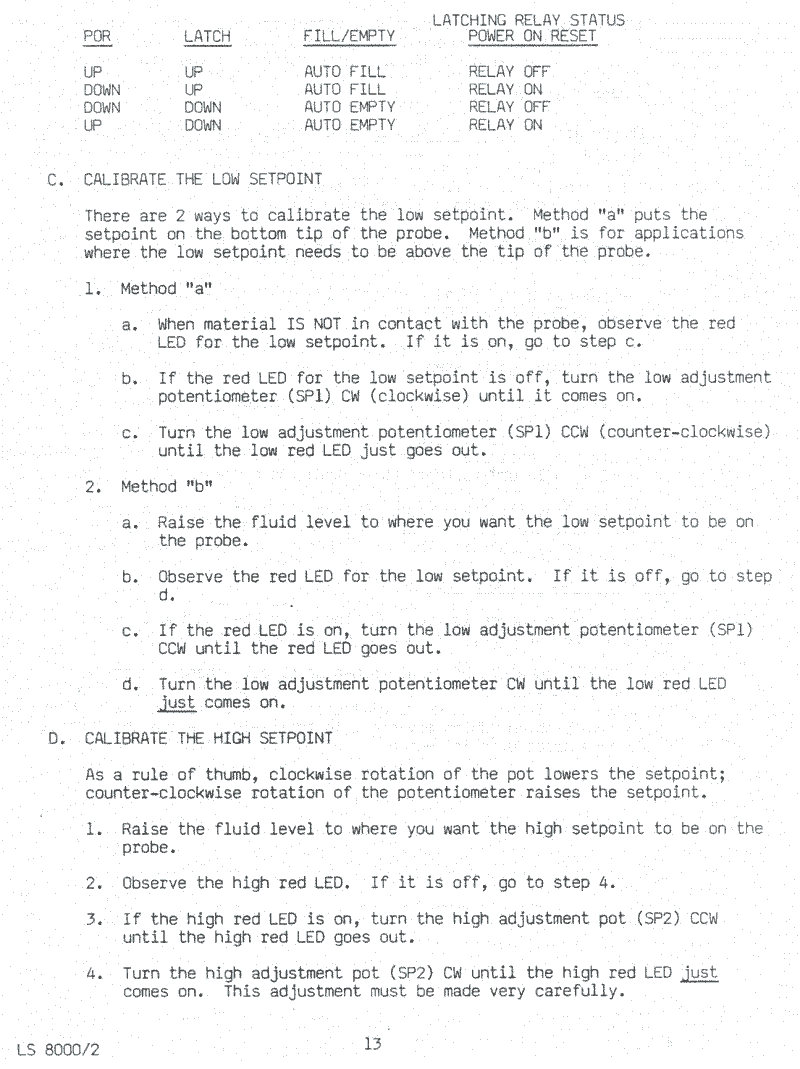

LS8000/2
O&M Page 13
|

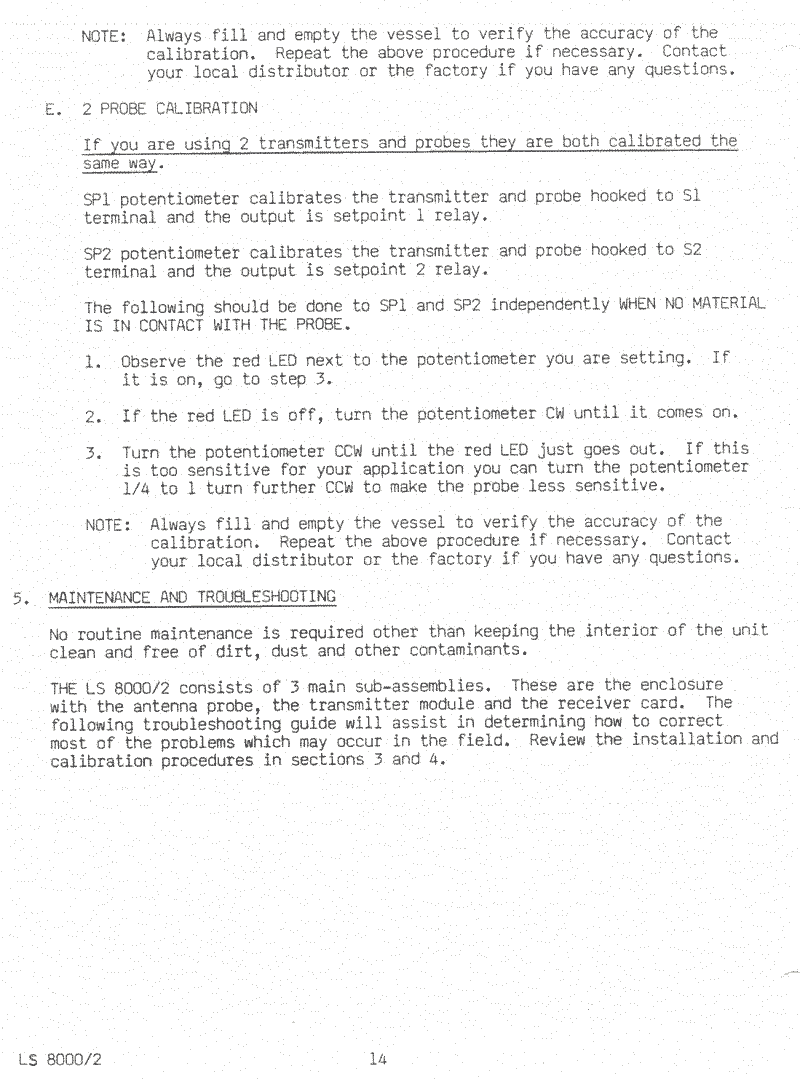

LS8000/2
O&M Page 14
|

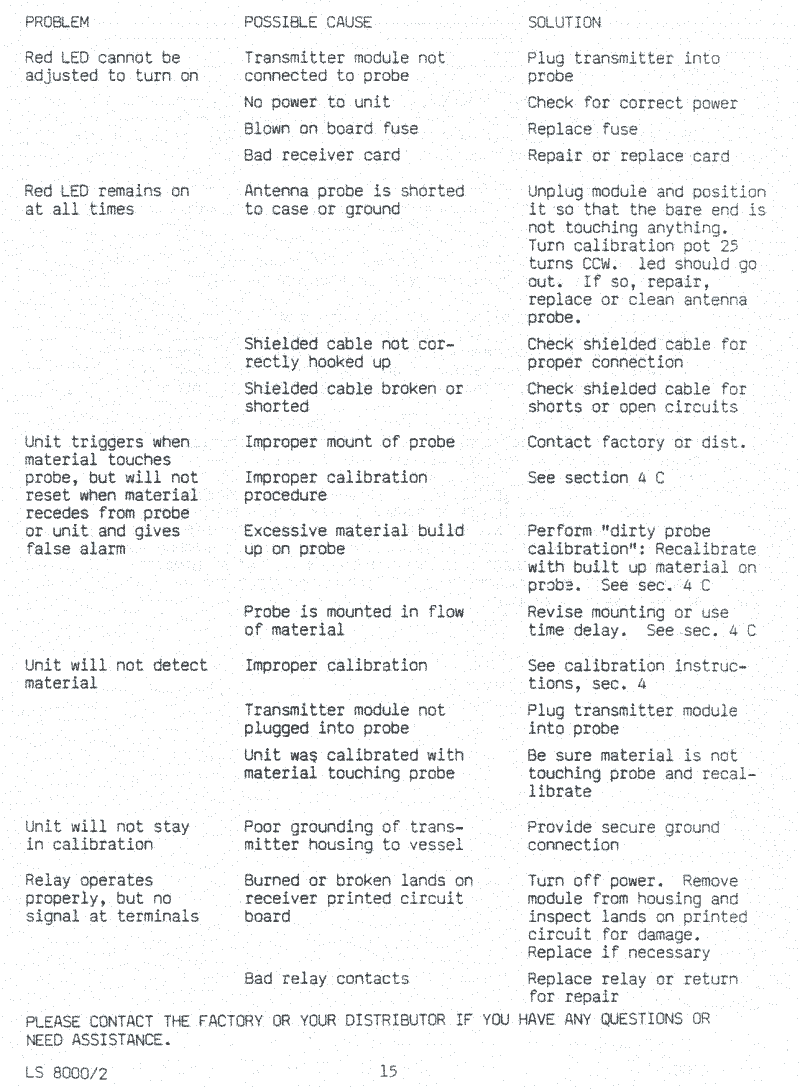

LS8000/2
O&M Page 15
|

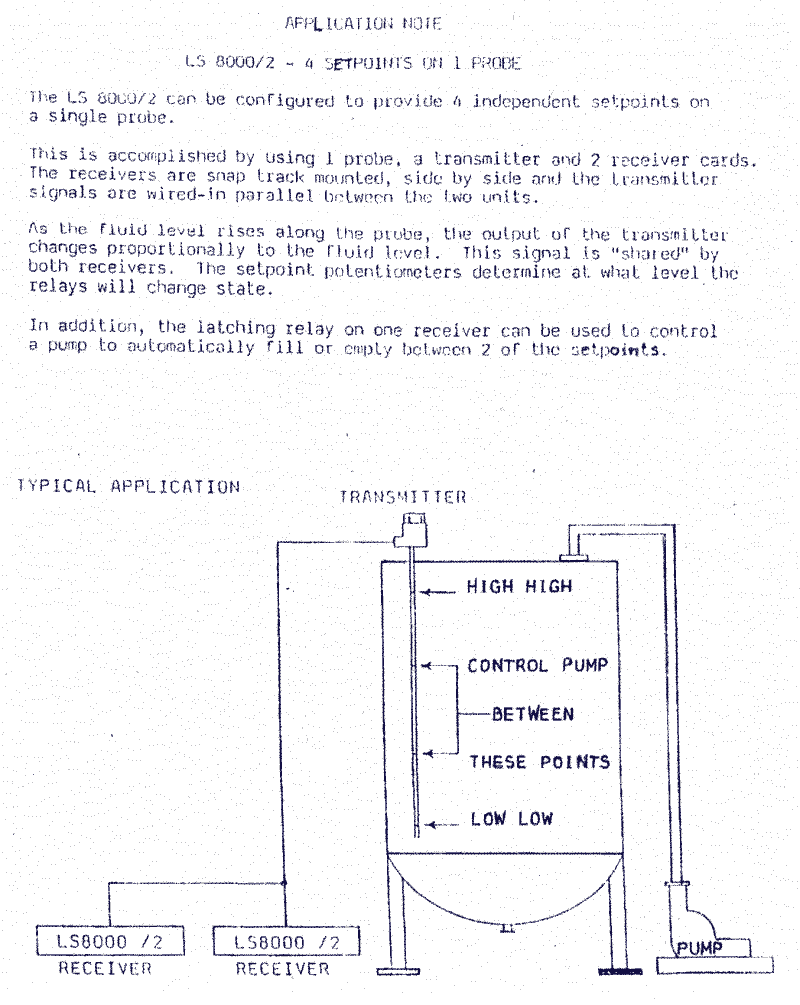

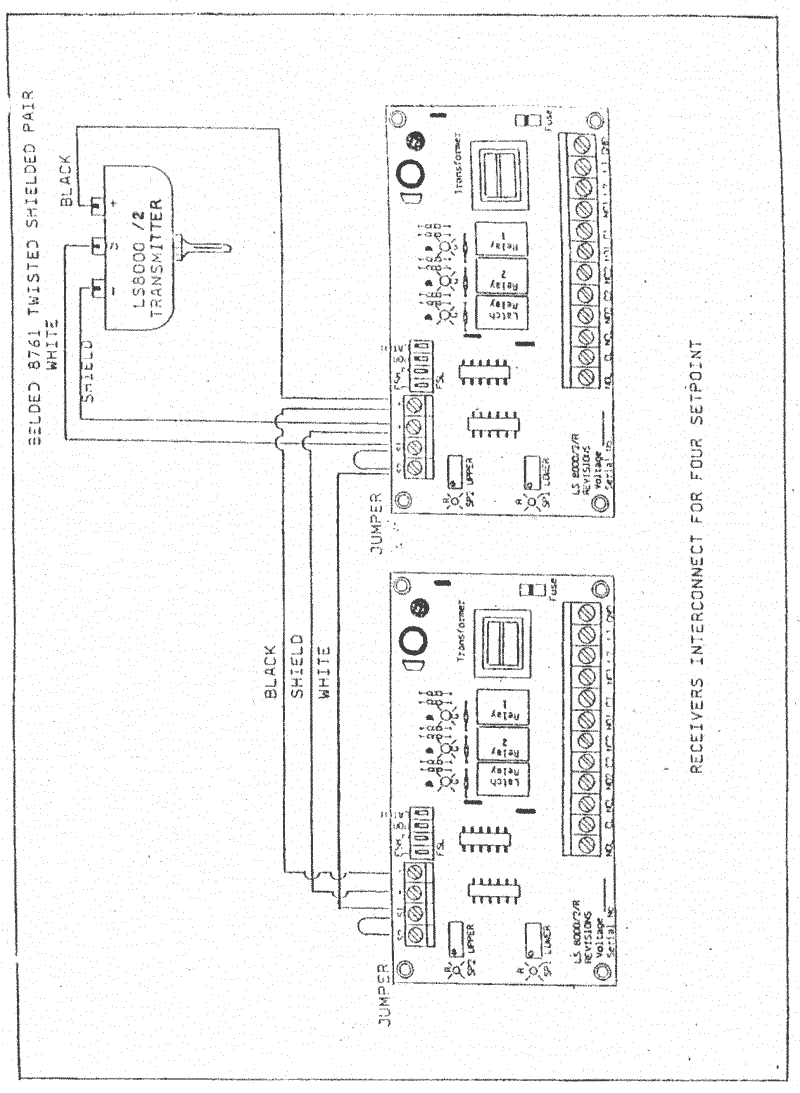

LS8000/2
Application Notes for 4 points
|
LS8000/2
Application Notes for 4 points
|
|
|
Go Back |
| ORDERING CHART | ||
| P/N | Description |
Order
Now!
|
| BA LS8000/2-115VAC-H-10 | Babbitt LS 8000/2-115VAC-H-10 Remote Mounted Dual Point Level Switch |
 |
| BA LS8000/2-115VAC-S-10 | Babbitt LS 8000/2-115VAC-S-10 Remote Mounted Dual Point Level Switch |
|
| BA LS8000/2-R-115VAC | Babbitt LS 8000/2-R-115VAC Receiver Card |
|
| BA LS8000/2-R-240VAC | Babbitt LS 8000/2-R-240VAC Receiver Card |
|
| BA LS8000/2-R-24VDC | Babbitt LS 8000/2-R-24VDC Receiver Card |
|
| BA LS8000/2-TRAN-EX-H-10 | Babbitt LS 8000/2-TRAN-EX-H-10 Probe Only for 2-Probe applications |
|
| BA LS8000/2-TRAN-EX-S-10 | Babbitt LS 8000/2-TRAN-EX-S-10 Probe Only for 2-Probe applications |
|
|
|
|
