Model LS8000 RemoteLevel Switch
LS8000 Level Switch

OWNERS MANUAL

  • INSTALLATION
  • CALIBRATION
  • TROUBLESHOOTING
  • APPLICATION NOTE
Operation and Maintenance Manual
GO back to LS8000/2 page Go back

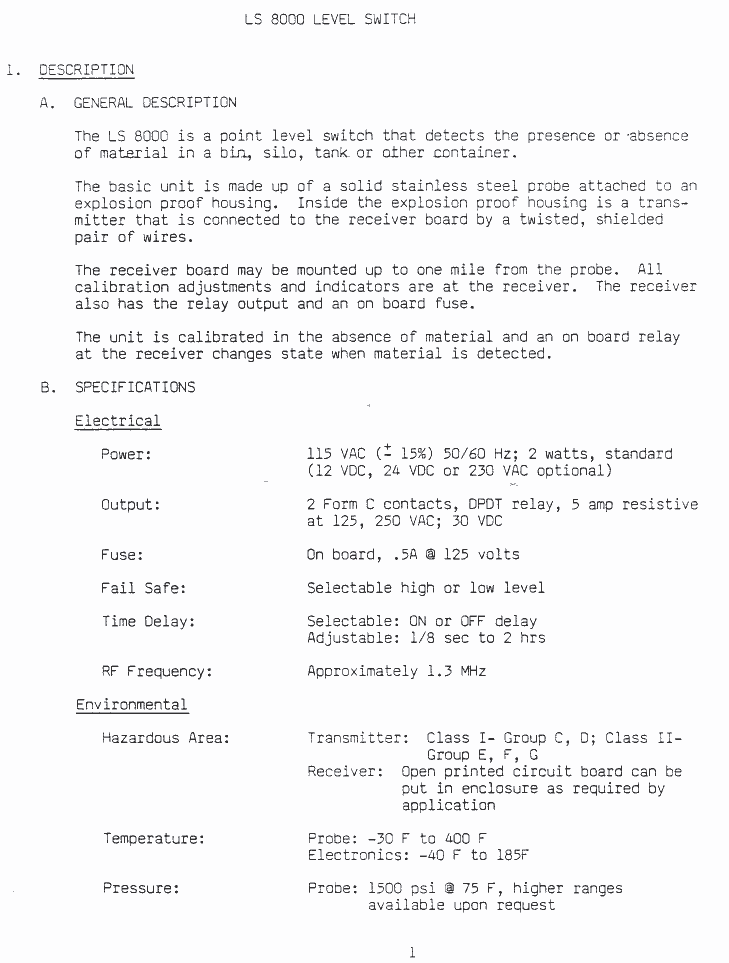

LS8000 O&M Page 1

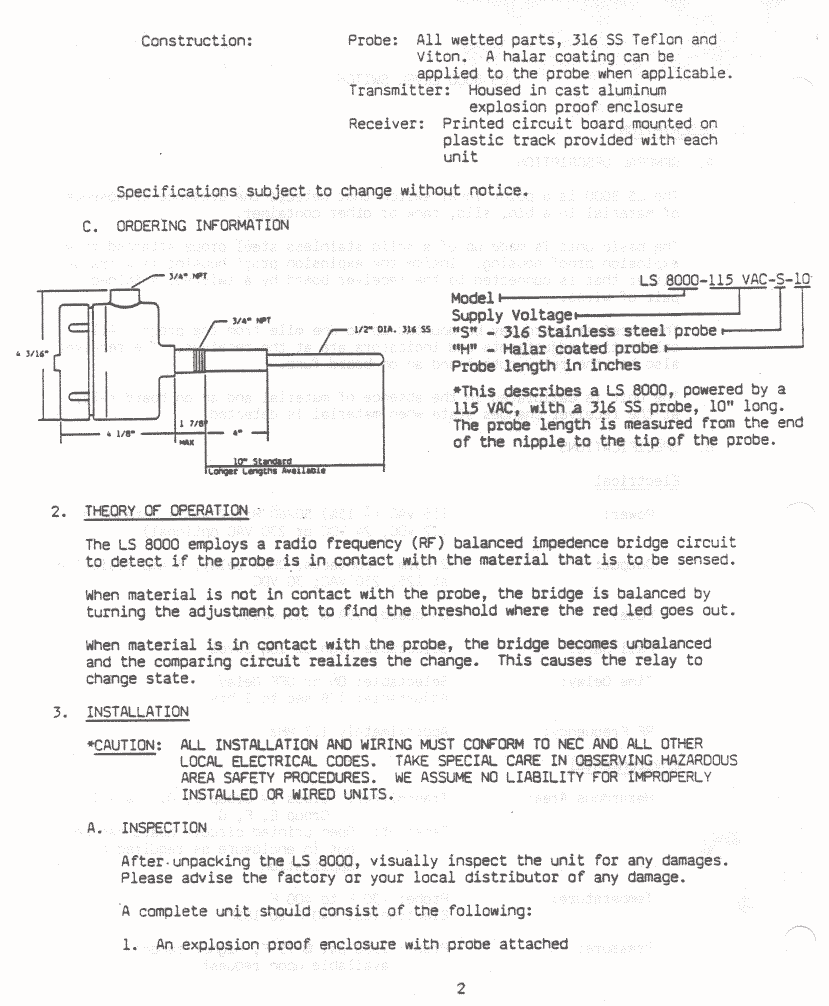

LS8000 O&M Page 2

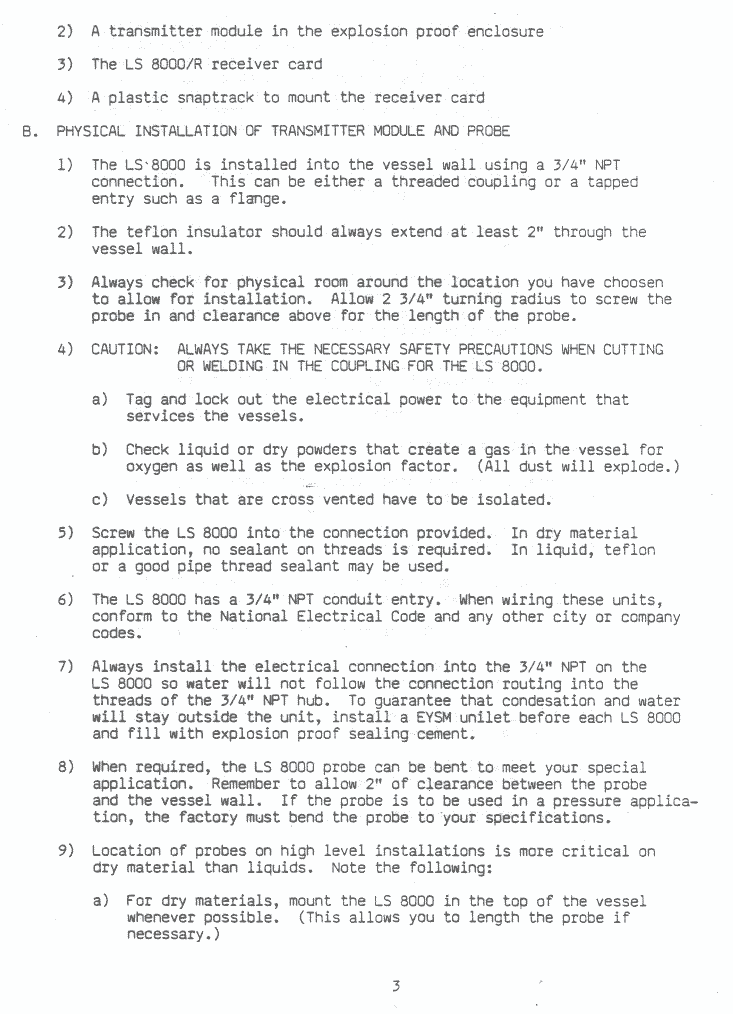

LS8000 O&M Page 3

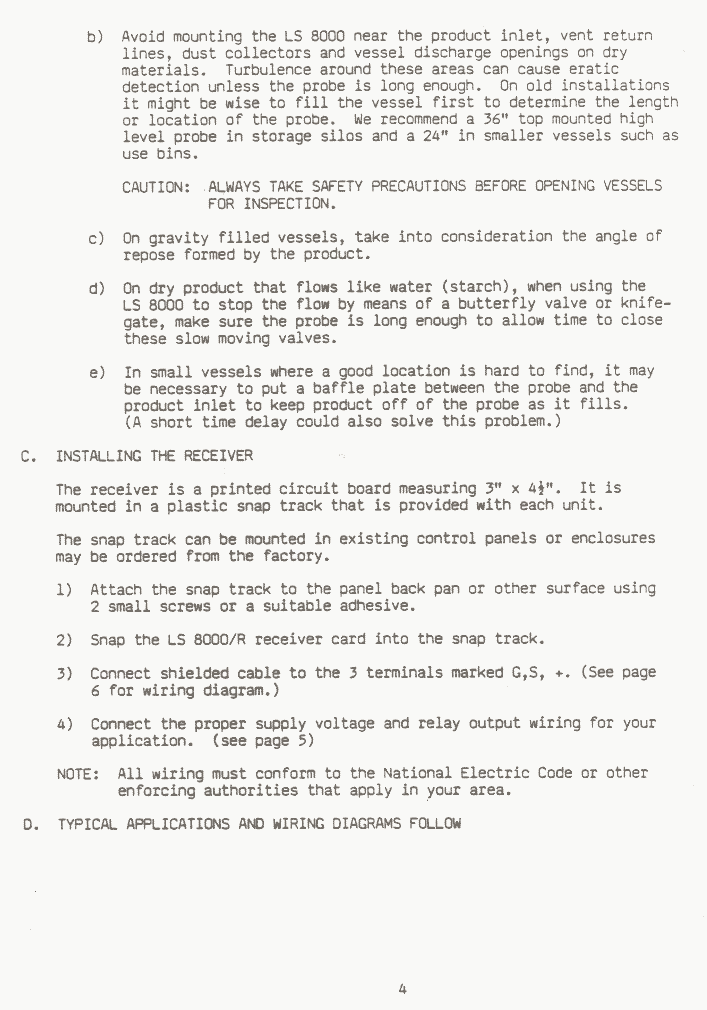

LS8000 O&M Page 4

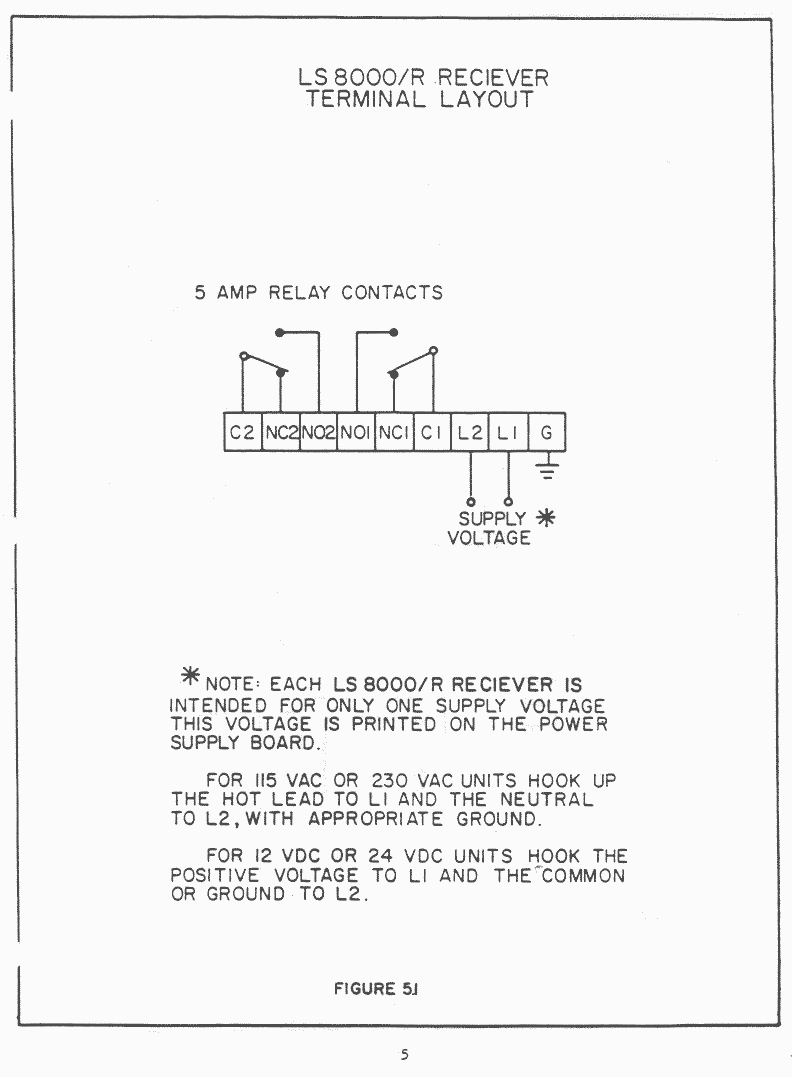

LS8000 O&M Page 5

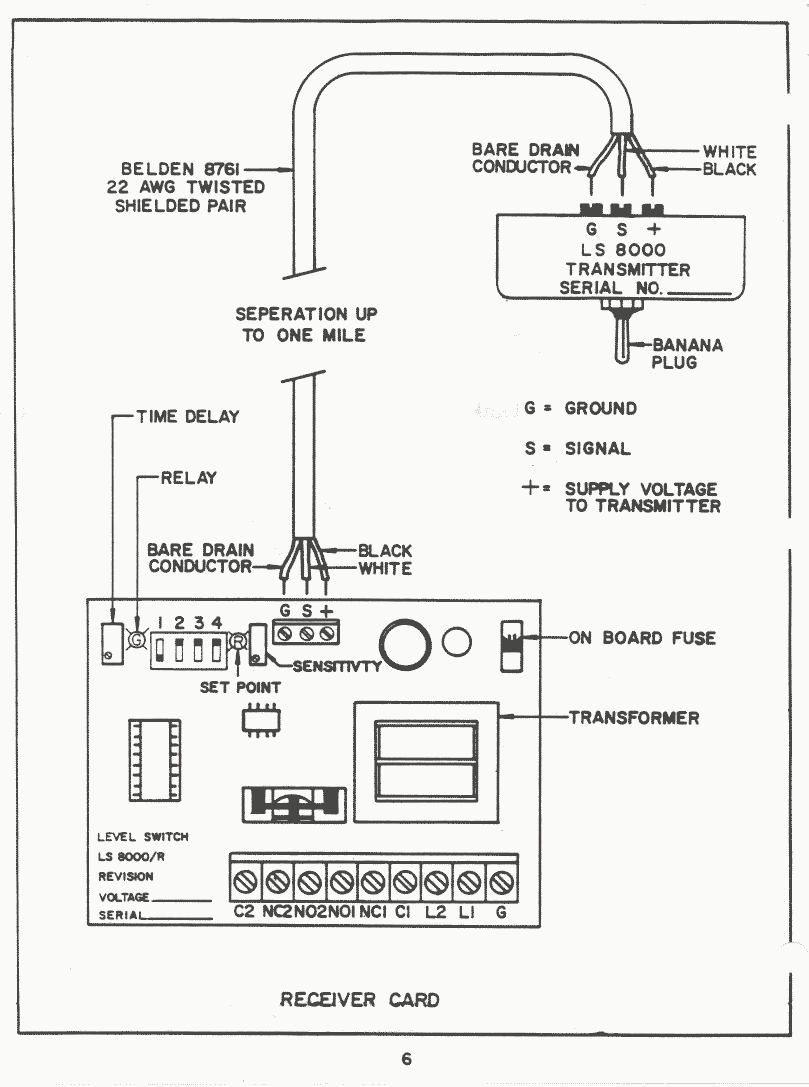

LS8000 O&M Page 6
LS8000 O&M 1
LS8000 O&M 2
LS8000 O&M 3
LS8000 O&M 4
LS8000 O&M 5
LS8000 O&M 6

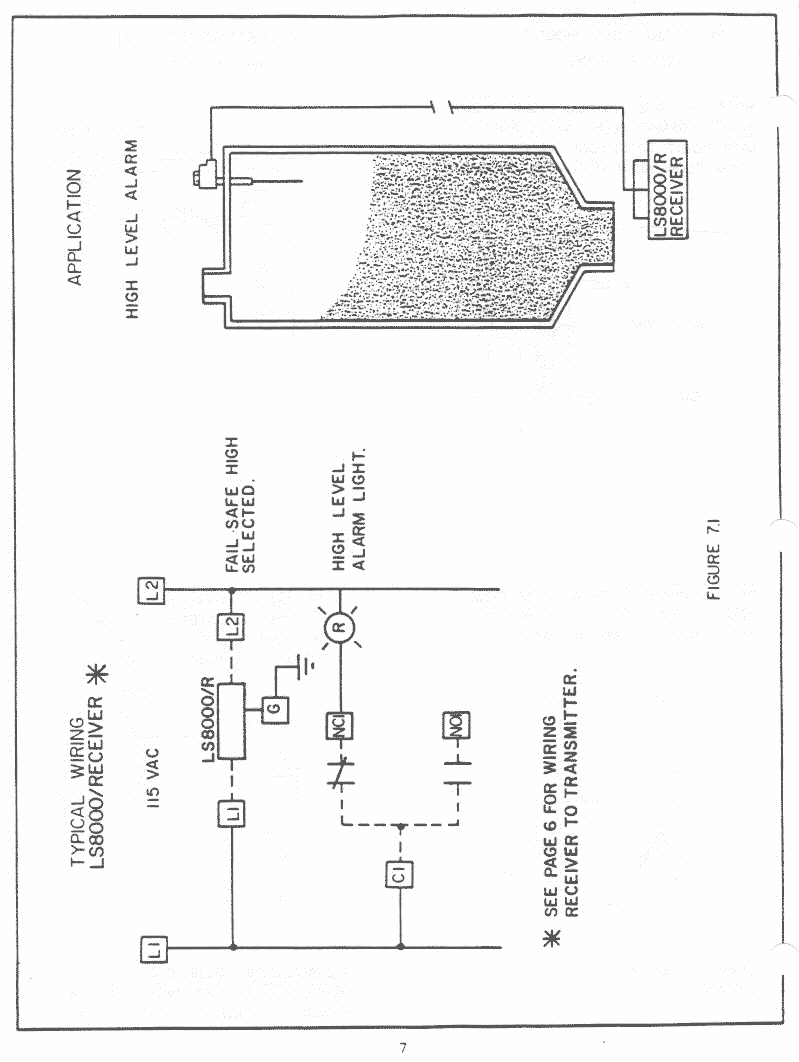

LS8000 O&M Page 7

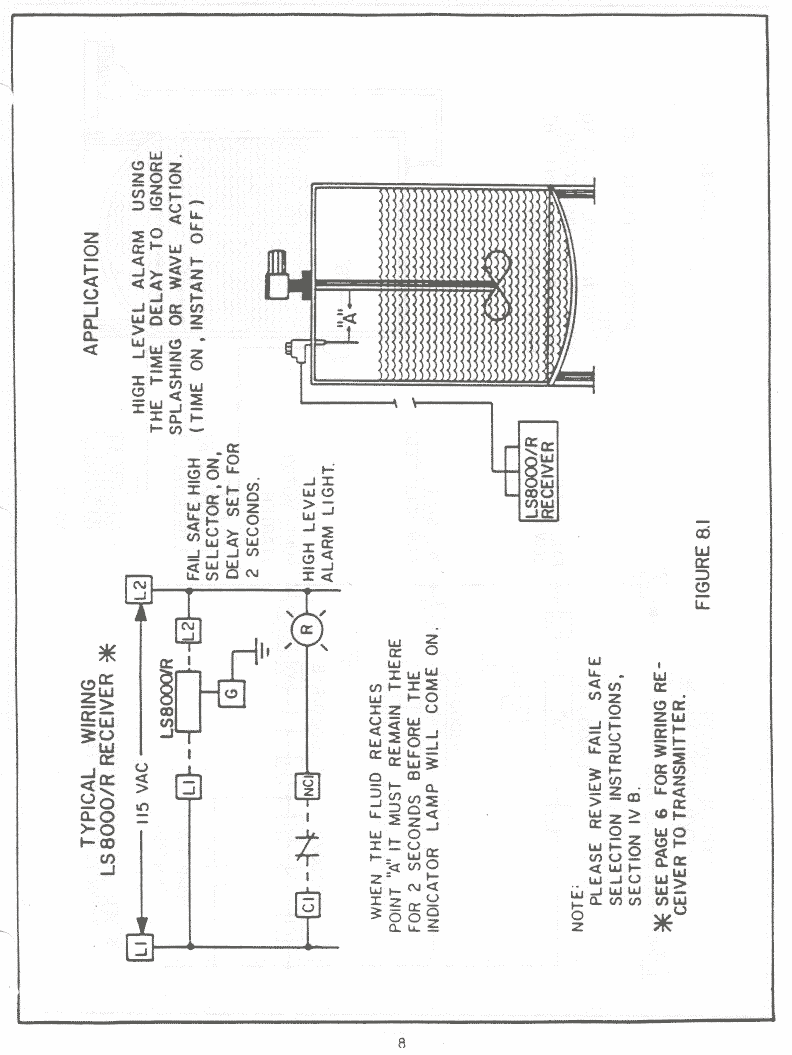

LS8000 O&M Page 8

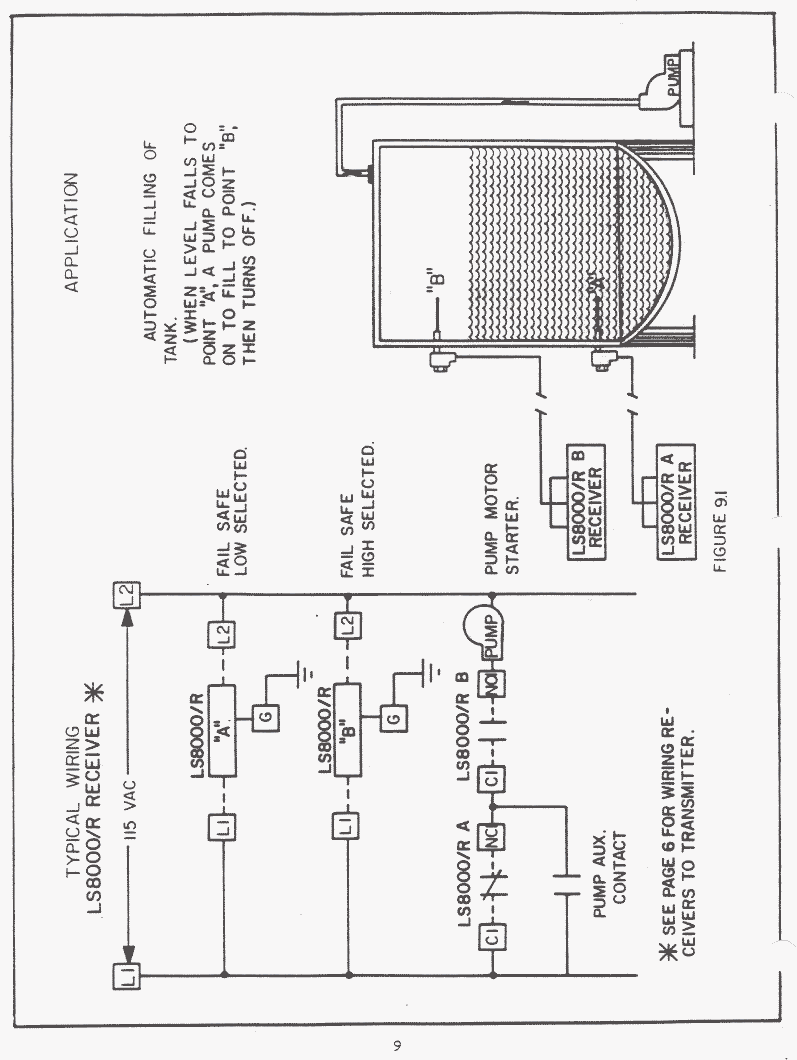

LS8000 O&M Page 9

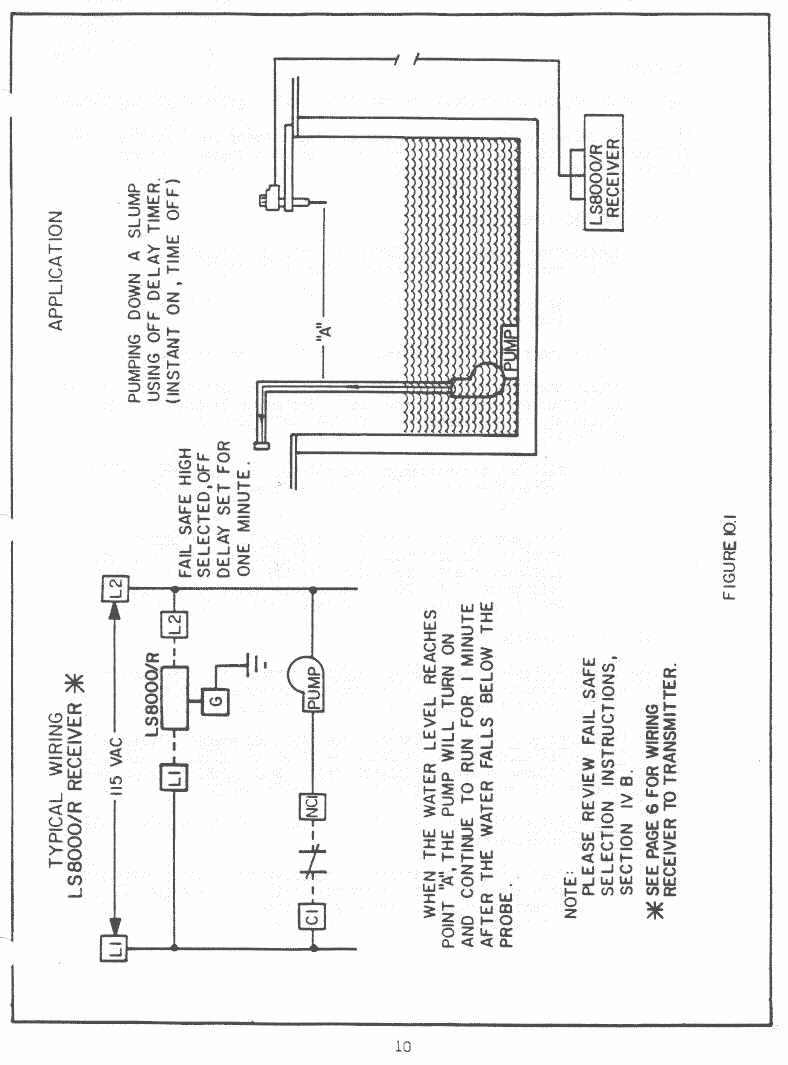

LS8000 O&M Page 10

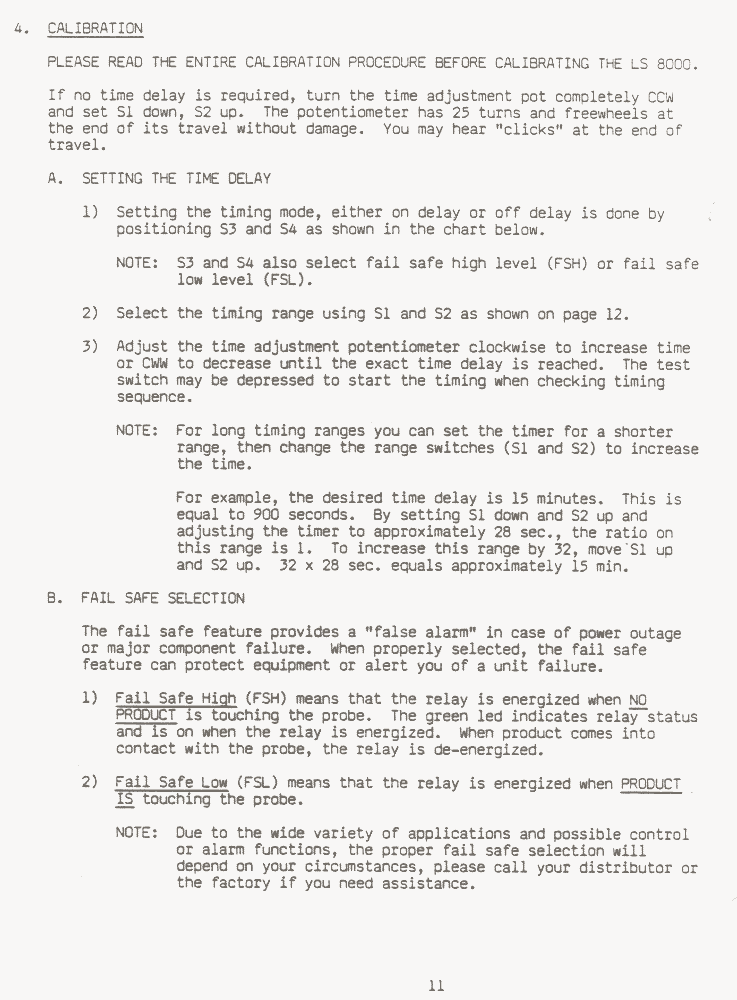

LS8000 O&M Page 11

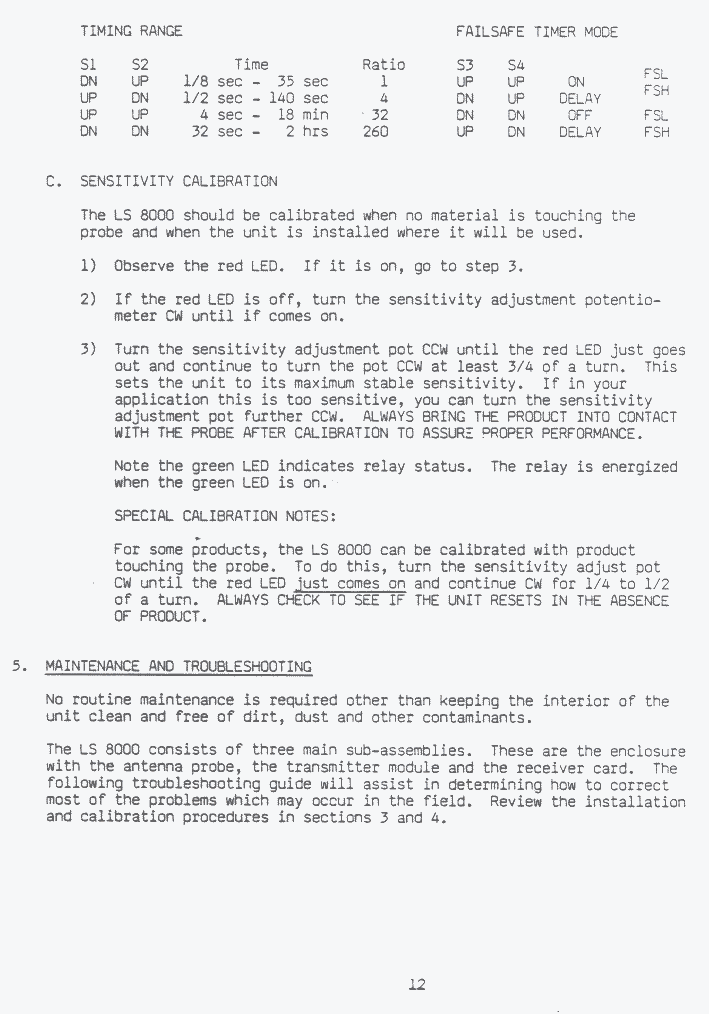

LS8000 O&M Page 12
LS8000 O&M 7
LS8000 O&M 8
LS8000 O&M 9
LS8000 O&M 10
LS8000 O&M 11
LS8000 O&M 12

GO back to LS8000/2 page Go Back

ORDERING CHART
P/N Description
Order Now!
BA LS8000-115VAC-S-10 Babbitt LS 8000-115VAC-S-10 Remote Mounted Level Switch
Click here to order online!
BA LS8000-115VAC-H-10 Babbitt LS 8000-115VAC-H-10 Remote Mounted Level Switch
Click here to order online!
BA LS8000-115VAC-HRK-24 Babbitt LS8000-115VAC-HRK-24" Hot Removal Kit
Click here to order online!
BA LS8000-FUSE Babbitt LS 8000 Fuse ( 1/2 AMP )
Click here to order online!
BA LS8000-HOUSING Babbitt LS 8000-HOUSING
Click here to order online!
BA LS8000-H-PROBE-10 Babbitt LS 8000-H-PROBE ASSEMBLY 10"
Click here to order online!
BA LS8000-R-115VAC Babbitt LS8000-R-115VAC Receiver Card
Click here to order online!
BA LS8000-R-12VDC Babbitt LS8000-R-12VDC Receiver Card
Click here to order online!
BA LS8000-R-240VAC Babbitt LS8000-R-240VAC Receiver Card
Click here to order online!
BA LS8000-R-24VDC Babbitt LS8000-R-24VDC Receiver Card
Click here to order online!
BA LS8000-S-PROBE-10 Babbitt LS8000-S-PROBE ASSEMBLY 10"
Click here to order online!
BA LS8000-T-BIG Babbitt LS8000-T Transmitter (Big)
Click here to order online!
BA LS8000-T-STD Babbitt LS8000-T Transmitter (Standard)
Click here to order online!
