Adjustable
Air Amplifiers™ |
|
|
Adjustable
Air Amplifiers have good amplification ratios and are very easy
to
use. The air gap is infinitely adjustable which regulates the
consumption  and
outlet flow from a "breeze"
to a "blast". They are available in aluminum or in stainless
steel for food service, higher temperatures (400°F/204°C), and corrosive
applications. High Temperature Stainless Steel Air Amplifiers for
temperatures up to 700°F (374°C) are available. Please contact an
Application Engineer.
|
|
A Model 6042 2" (51mm)
Aluminum Adjustable Air
Amplifier dries a hose as
it exits a rinse operation.
|
| Force
and flow for the Adjustable Air Amplifier is changed by turning the
exhaust end (with the knurled ring loose) to open or close the continuous
air gap. When desired performance is obtained, the knurled ring can
be tightened to lock the flow at that setting. In most cases, a .002"
to .004" (.05mm to .10mm) air gap is ideal. |

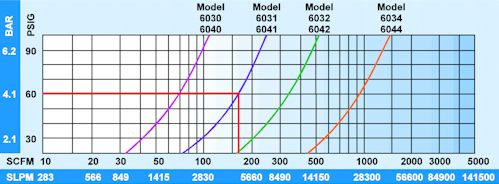

Performance
|
Total Output Flow
with .002" (.05mm) thick gap setting.
Excludes downstream entrainment.
|
|
|
| Standard
Air Amplifier Performance at 80 PSIG (5.5 Bar) |
| |
Air
Consumption |
Amplification |
Air
Volume
at outlet |
Air
Volume
at 6" (15cm) |
Sound
Level |
| Model |
SCFM |
SLPM |
Ratio |
SCFM |
SLPM |
SCFM |
SLPM |
dBA |
| 6030,
6040 |
8.9 |
252 |
10 |
89 |
2430 |
267 |
7556 |
78 |
| 6031,
6041 |
12.9 |
365 |
16 |
206 |
5635 |
618 |
17,489 |
81 |
| 6032.
6042 |
21.5 |
608 |
20 |
430 |
11,739 |
1290 |
36,507 |
82 |
| 6034,
6044 |
50 |
1415 |
24 |
1200 |
33,960 |
3600 |
101,880 |
84 |
|
|
How
To Determine Adjustable Air Amplifier Total
Output Flow And Air Consumption
Total Airflow:
From
the performance curves (above), determine total output
flow for any Adjustable Air Amplifier at any pressure.
Example: A Model
6031 at 60 PSIG (4.1 BAR) supply air pressure has a total
output flow of 165 SCFM (4672 SLPM).
Air Consumption:
Divide
the total output flow by the amplification ratio (shown
in the chart above) to determine air consumption for any
Adjustable Air Amplifier at any air pressure.
In the example above,
the Model 6031 at 60 PSIG (4.1 BAR) supply air pressure
has a total ouput flow of 165 SCFM (4672 SLPM). Dividing
this total output flow by its amplification ratio of 16
gives an air consumption of 10.3 SCFM (292 SLPM).
|
|
|

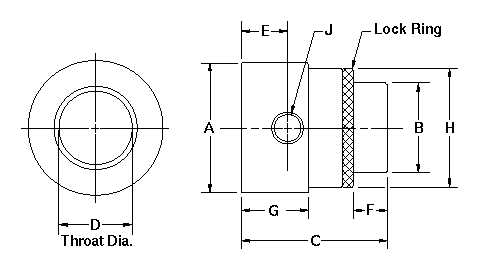

| Dimensions |
|
|
Standard Air Amplifier
Dimensions
|
| Model
# |
|
A |
B |
C |
D |
E |
F |
G |
H |
J |
| 6030,
6040 |
in |
1.15 |
0.75 |
2.22 |
0.45 |
0.72 |
0.56 |
1.06 |
1.25 |
1/8
NPT |
| mm |
38 |
19 |
57 |
11 |
18 |
14 |
27 |
32 |
| 6031,
6041 |
in |
2.0 |
1.25 |
2.88 |
0.84 |
1.0 |
0.75 |
1.38 |
1.75 |
1/4
NPT |
| mm |
51 |
32 |
73 |
21 |
25 |
19 |
35 |
44 |
| 6032,
6042 |
in |
3.13 |
2.0 |
3.25 |
1.64 |
1.06 |
0.75 |
1.5 |
2.75 |
3/8
NPT |
| mm |
79 |
51 |
83 |
42 |
27 |
19 |
38 |
70 |
| 6034,
6044 |
in |
5.0 |
4.0 |
5.0 |
3.02 |
1.5 |
1.75 |
2.13 |
4.5 |
1/2
NPT |
| mm |
127 |
102 |
127 |
77 |
38 |
44 |
54 |
114 |
|
|
|
Adjustable
Air Amplifier Systems
|
Aluminum Adjustable
Air Amplifier Only
|
|
Model
#
|
Description
|
Order
Now!
|
|
|
Exair 6040 3/4" (19mm) Aluminum Adjustable
Air Amplifier |
|
|
|
Exair 6041 1-1/4" (32mm) Aluminum Adjustable
Air Amplifier |
|
|
|
Exair 6042 2" (51mm) Aluminum Adjustable
Air Amplifier |
|
|
|
Exair
6044 4" (102mm) Aluminum Adjustable Air
Amplifier |
|
|
|
|
|
|
Aluminum Adjustable
Air Amplifier Kits
|
|
|
|
Kits include an Aluminum
Adjustable Air Amplifier, shim set,
filter separator and pressure regulator.
|
Model
#
|
Description
|
Order
Now!
|
|
|
Exair 6240 3/4" (19mm) Aluminum Adjustable
Air Amplifier Kit |
|
|
|
Exair 6241 1-1/4" (32mm) Aluminum Adjustable
Air Amplifier Kit |
|
|
|
Exair 6241 1-1/4" (32mm) Aluminum Adjustable
Air Amplifier Kit |
|
|
|
Exair
6244 4" (102mm) Aluminum Adjustable Air
Amplifier Kit |
|
|
|
|
|
|
Stainless Steel Adjustable
Air Amplifier Only
|
Model
#
|
Description
|
Order
Now!
|
|
|
Exair
6030 3/4" (19mm) Stainless Steel Adjustable
Air Amplifier |
|
|
|
Exair 6031 1-1/4" (32mm) Stainless Steel
Adjustable Air Amplifier |
|
|
|
Exair 6032 2" (51mm) Stainless Steel Air
Amplifier |
|
|
|
Exair
6034 4" (102mm) Stainless Steel Adjustable
Air Amplifier |
|
|
|
|
|
|
Stainless Steel Adjustable
Air Amplifier Kits
|
|
|
|
Kits include a Stainless
Steel Adjustable Air Amplifier, shim set,
filter separator and pressure regulator.
|
|
Model
#
|
Description
|
Order
Now!
|
|
|
Exair
6230 3/4" (19mm) Stainless Steel Adjustable
Air Amplifier Kit |
|
|
|
Exair 6231 1-1/4" (32mm) Stainless Steel
Adjustable Air Amplifier Kit |
|
|
|
Exair 6232 2" (51mm) Stainless Steel Adjustable
Air Amplifier Kit |
|
|
|
Exair
6234 4" (102mm) Stainless Steel Adjustable
Air Amplifier Kit |
|
|
|
|
|
|
Accessories
|
Model
#
|
Description
|
Order
Now!
|
|
|
Exair
9001 Automatic Drain Filter Separator, 1/4
NPT, 73 SCFM (2067 SLPM) |
|
|
|
Exair 9002 Automatic Drain Filter Separator,
3/4 NPT, 220 SCFM (6230 SLPM) |
|
|
|
Exair 9008 Pressure Regulator with Gauge,
1/4 NPT, 50 SCFM (1416 SLPM) |
|
|
|
Exair
9009 Pressure Regulator with Gauge, 3/4
NPT, 220 SCFM (6230 SLPM) |
|
|
|
|
|
|
