NOTE: All housings individually boxed. Filter housings supplied with non-lubricated O-rings. O-rings must be lubricated with compatible liquid prior to installation.

Teflon™ and Viton™ are trademarks of DuPont Corporation.

DOE = Double Open End

SOE = Single Open End

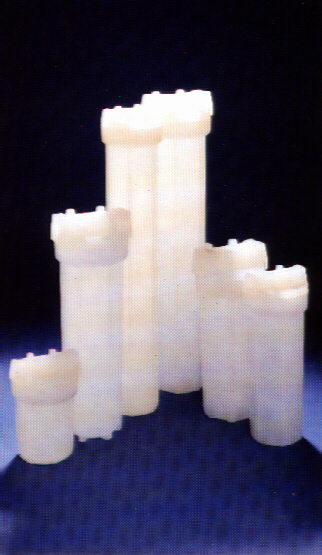

AMETEK's pure virgin polypropylene filter housings mean purity in your production

Applications:

All natural, pure polypropylene filter housings can be used in an extremely wide variety of applications where purity, quality, minimal extractables and filtration economy are required. After your expensive cartridge, the last thing your liquid or gas is in contact with before going downstream is your filter housing. Use the AMETEK® all natural housings as added insurance against additional contamination.

Industrial Applications Include:

• Deionized and reagent grade water
• Electronic grade chemicals
• Reagent grade chemicals
• Pharmaceutical grade solvents
• Reaction solvents for cosmetic, pharmaceutical or polyester production
• Most gases: nitrogen, argon, ammonia
• Freons (TF, 113)
• Electronic etching solutions
• Magnetic coatings (tape, disc or card)
• Reverse osmosis or ultrafiltration final filters
• Laboratory equipment

#20 ALL NATURAL
3/4" (19 mm) inlet/outlet pure polypropylene filter housing for 20" (508 mm) overall length cartridges. Viton 0-ring and two Viton 0-ring sealed vent plugs standard. Sump, caps, and 0-rings interchangeable when purchased as components.

PART NO. 150135
For use with 20" (508mm) long DOE cartridges. Two 10" (254mm) DOE with 155093 coupler. Two 9 3/4" (248mm) DOE with 155003 coupler. SOE 20" (508mm) long with internal 119 0-ring or gasket and recess in closed end. SOE 19 5/16" (491mm) long with internal 119 0-ring or gasket and flat bottom. (Domnick Hunter Code N. 119 Nuclepore Code AM. P)

PART NO. 150158
For use with: SOE 222 0-ring sealing cartridges with overall lengths less than 209" (531 mm) (ie. Nuclepore Code M, and Brunswick Tech, etc.). Two DOE 9 3/4" (248 mm) cartridges with 157189-01 adapter, 157191 stacking coupler, and 157192 pIug. Any 18.875" (479 mm) SOE with 157190-01 adapter or DOE with 157190-01 adapter and 157192 plug.

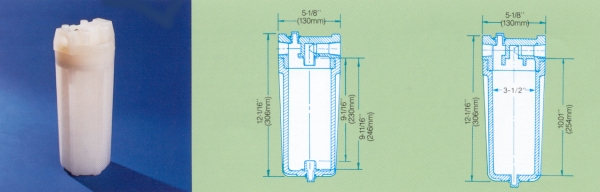

#10 ALL NATURAL
3/4" (19mm) inlet/outlet pure polypropylene filter housings for 10" (254mm) nominal overall length cartridges, and vent plugs (Viton 0-ring sealed) standard. Sumps caps, and 0-rings are interchangeable when purchased as components.

PART NO. 150132
For use with: DOE 9 3/4" (248mm) to 9 7/8" (251mm) cartridges, all manufacturers. SOE 9 3/4" (248mrn) to 9 7/8" (251mm) cartridges with internal 119 0-ring one end and recess on closed end. SOE cartridges 9 3/16" (233mm) or less with internal 119 0-ring and flat bottom closed end. (Pall Code "P', Nuclepore Code AM, P, Gelman Nyaflo, Preflow w/gaskets, all Domnick Hunter DOE w/gaskets and Code N, Filterite DOE.).

PART NO. 150133
For use with: SOE 222 0-ring sealing cartridges with overall lengths less than 10.01" (254mm) DOE cartridges 9.3" (236mm) or less when assembled with 157189 adapter and 155091 plug, 8 9/16" (218mm) or less when assembled with 157190 adapter and 155091 plug.

#12 ALL NATURAL PART NO. 150134
3/4" (19mm) inlet/outlet pure polypropylene filter housing for 13" (330mm) nominal overall length cartridges. Viton 0-ring and two Viton 0-ring sealed vent plugs standard. Sumps, caps, and 0-rings interchangeable when purchased as components. For use with: SOE 222 0-ring sealing cartridges with overall lengths less than 13" (330mm) long i.e. Pall Code [3] & 8; Millipore Code [0] & 5; Sartorius Code [07] & 06; Nucleopore Code [Ps &, M] & P8; and CUNO [70012, 70025, & 70002]).

NOTE: Code in [ ] require 157209 sump extension. All SOE Gelman nominal 10" (254mm) with 157190 adaptor, 157192 plug, and 157209 sump extension. All DOE 10" (254mm) with 157189 adaptor, 155192 plug, and 157209 sump extension.
