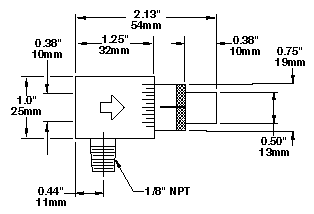

Air Jets and Air Nozzles Air Jets Model 6010 High Flow Air Jet High Flow Air Jets provide maximum flow and moderate thrust at minimum air consumption. Best choice for light blowoff applications and part cooling. Material: Brass Force: 6.5 oz.* Force measured at 80 PSIG (5.5 BAR), 12" (30cm) from target Model 6013 High Velocity Air Jet High Velocity Air Jets provide maximum thrust.   Confined, directed air stream. Best choice for part ejection, chip removal and part drying. Material: Brass Force: 13.9 oz. Force measured at 80 PSIG (5.5 BAR), 12" (30cm) from target   Model 6019 Adjustable Air Jet Adjustable version of the Model 6013 High Velocity Air Jet.  Airflow and thrust are easily adjusted using micrometer gap indicator. Material: Brass Force: 12.9 oz.* [.006" (.15mm) gap setting]   Force measured at 80 PSIG (5.5 BAR), 12" (30cm) from target Air Nozzles Air Nozzles are available in the most popular pipe and tubing size connections for easy retrofit to existing blowoffs. Simply select the nozzle with the same fitting size as your existing compressed air blowoff pipe or tube. Pipe Size Nozzles Safety Air Nozzles Model 1001 - 1/8 FNPT Brass Model 1002 - 1/4 FNPT Brass Model 1002SS 1/4 FNPT Stainless Steel Model 1003 - 3/8 FNPT Brass         Tube Size Nozzles Super Air Nozzles Model 1004 3/8 NPT Zinc Aluminum Alloy Model 1004SS 3/8 FNPT Stainless Steel Model 1005 3/8 MNPT Zinc Aluminum Alloy Model 1005SS 3/8 MNPT Stainless Steel Model 1006 1/2 FNPT Zinc Aluminum Alloy Model 1006SS 1/2 FNPT Stainless Steel         Adjustable Air Nozzles Adjustable Air Nozzles Model 1009 1/8 MNPT Aluminum Model 1009SS 1/8 MNPT 303 Stainless Steel   Air Jet and Nozzle Technical Data

Code	Name	Price
EX1001	Exair 1001 Air Nozzle, 1/8NPT	$22.00
EX1002SS	Exair 1002SS Air Nozzle, 1/4 NPT	$45.00
EX1003	Exair 1003 Air Nozzle, 3/8 NPT	$28.00
EX1009	Exair 1009 Adjustable Nozzle, 1/8 NPT	$17.00
EX1009SS	Exair 1009SS Adjustable Air Nozzle, 1/8 NPT	$39.00
EX1909	Exair 1909 Blowoff Kit	$232.00
EX1909SS	Exair 1909SS Stainless Steel Blowoff Kit	$239.00
EX6013	Exair 6013 High Velocity Air Jet, 1/2" (13mm) diameter outlet	$62.00
EX6019	Exair 6019 Adjustable Air Jet, 1/2" (13mm) diameter outlet	$65.00
EX6313	Exair 6313 Air Jet Shim Set	$15.00
