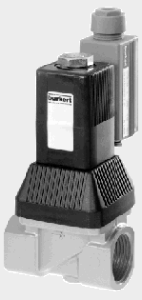

Burkert 6223 Flow Control Solenoid Valve
 |
6223
Proportional Solenoid Control Valve - High Flow |
 |
2/2-Way; servo-assisted
3/8" NPT - 1" NPT; PN 7-145 PSI
G3 /8 "- G 1";
PN 0,5-10 bar
|
| |
- Optimization
of process and product quality through continuous regulation
- Increase
of efficiency
- Extremely
high control accuracy:
- low hysteresis
- high repeatability and responsivity
- Particularly
good turn down ratio and thereby usage of an optimal control
range
- Fail
safe (self-closing in case of power failure)
- A
complete control system "all from one" with Burkert sensors
and controllers
|
|
|
|
|
|
 |
| Type
6223 is a servo-assisted solenoid control valve for K Vs flow
rates from 1.4 to 5 m 3 /h. The variable opening of the cross-section
is continually changed proportional to the standard elec-trical
input signal. The characteris-tic curve of the valve is practically
linear; regulation deviations are extremely low. With < 1%,
the valve has a high sensitivity, due to a higher frequent
pulse-width modulation. The solenoid control valve consists
of the basic components of arma-ture, push-over coil and electronic
control unit, and can be mounted in any position. The electronic
control unit is integrated into the DIN 43650A cable plug,
but can also be supplied as a standard DIN-rail mounting version. |
- Adjustable
ramp function from 0-10 s cushions set-point jumps
- Standard
input signals 4-20 mA, 0-10V
- Monitor
signal to assist set-up and indicaton of coil current
- Tight
shut-off due to zero-point suppression
- Compensation
of the coil heating
- Start
of opening and max. open-ing adjustable
- Simple
ordering procedure with one order number for valve and
control electronics
|
|
Continuous control
of larger flow rates of neutral and slightly aggressive
media.
• General machine
construc-tion (in particular control for cooling circulations)
• Process technology in the chemical industry
• Paper and printing machines (e.g., damp control)
• Filling systems
• Machinery and plants for food and beverage industries
• Water treatment
• Medical technology (sterilization)
• Textile industry (dyeing, washing, drying)
|
|
|
| Code
| Name | Price |
|
| |
BU00457140 | Burkert Type 6223, 1/2"NPT, 24VDC |
$285.00 |
|
BU00458405 | Burkert Type 6223, 1/2"NPT, 24VDC, SS |
$339.00 |
|
BU00457141 | Burket Type 6223, 3/4"NPT, 24VDC |
$285.00 |
|
BU00457142 | Burkert Type 6223, 3/4NPT, 24VDC |
$398.00 |
|
BU00458406 | Burkert Type 6223, 3/4"NPT, 24VDC, SS |
$466.00 |
|
BU00132640 | Burkert Type 6223 G3/4, 24VDC |
$290.00 |
|
BU00457143 | Burkert Type 6223 1"NPT, 24VDC |
$398.00 |
|
BU00458407 | Burkert Type 6223, 1"NPT, 24VDC, SS |
$484.00 |
|
