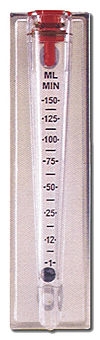

FM10 Direct Reading Flowmeters

Install these small, compact variable area flow meters anywhere to provide a quick indication of flow. Direct reading scales are simple to use. Easy to view float from side. Molded PVC one-piece body. 1/4" hose barb. Direct reading scales — liquid or air (STP). Ideal for small spaces or retrofitting. Accuracy ±10% FS. Custom models available. Valve models available. Compact — 101 x 25 x 16 mm; 3" (75 mm) Ctr-Ctr

FM10 ORDERING INFORMATION Part No. Calibration Float Mat. Price       APFM10.001 10 to 100 ml/min Teflon $33.00 APFM10.002 10 to 150 ml/min Glass $33.00 APFM10.005 50 to 750 ml/min Teflon $33.00 APFM10.025 1 to 14 SCFH(air) Glass $33.00 APFM10.026 1.0 to 1.5 SCFM(air) Glass $33.00 APFM10.028 0.2 to 2 SCFM (air) Ceramic $33.00
