Accessories Cable Plugs DIN 43650

	Accessories Cable Plugs
	2506 - DIN 43650, Form C
	2507 - DIN 43650, Form B
	2508 - DIN 43650, Form A
	PDF File List

Miniature-Cable Plug to DIN 43650, Form C

	Width: 0.62 inch; 0 - 250V
	Optional configurations with LED, rectifier, supressor diode, pole protection or varistor
	Modular design allows flexibility in restricted space applications
	Easy wiring, simple installation

Select to view or print catalog page DIN 43650 Form A

Plug-in connection for electrical devices and components, eg. single and multiple miniature valves according to DIN 43 650, form C.

	View PDF File for Cable Plug to DIN 43650, Form C / Width: 15.8 mm

Select to enlarge view

ORDERING CHART - 2506
P/N	Description
BU 008353P	Type 2506 Burkert BU 008353P Miniature Cable Plug to DIN 43650, Form C, std cable plug, 0-250V AC/DC
BU 008402A	Type 2506 Burkert BU 008402A Miniature Cable Plug to DIN 43650, Form C, with LED, 12-24 V AC/DC
BU 008403B	Type 2506 Burkert BU 008403B Miniature Cable Plug to DIN 43650, Form C, with LED, 110-120 V AC/DC
BU 008404C	Type 2506 Burkert BU 008404C Miniature Cable Plug to DIN 43650, Form C, with LED, 200-240 V AC/DC
BU 008408Q	Type 2506 Burkert BU 008408Q Miniature Cable Plug to DIN 43650, Form C, with LED + varistor, 12-24 V
BU 008409R	Type 2506 Burkert BU 008409R Miniature Cable Plug to DIN 43650, Form C, with LED + varistor, 110-120
BU 008410D	Type 2506 Burkert BU 008410D Miniature Cable Plug to DIN 43650, Form C, with LED + varistor, 200-240

Miniature-Cable Plug to DIN 43650, Form B

	Width: 20.8 mm; 0 - 250V
	Optional versions with LED, rectifier and/or varistor
	Modular design allows flexibility in restricted space
	Easy wiring connection

	View PDF File Cable plug to DIN 43650, Form B / Width: 20.8 mm

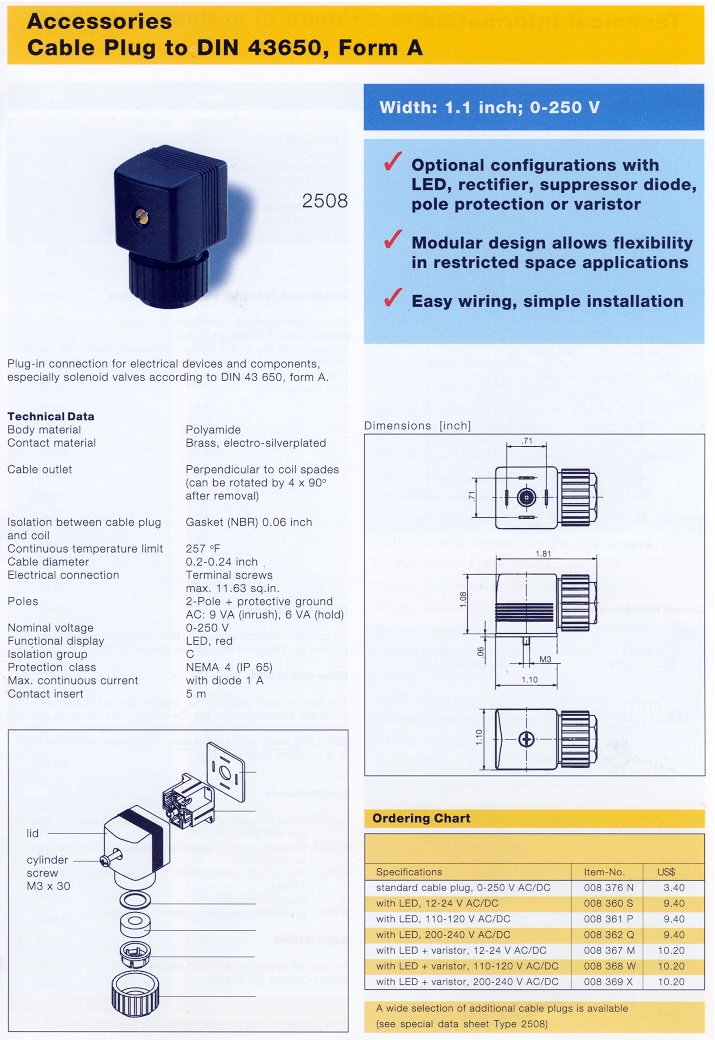

Cable Plug to DIN 43650, Form A

	Width: 1.1 inch; 0 - 250 V
	Optional configurations with LED, rectifier, suppressor diode, pole protection or varistor\
	Modular design allows flexibility in restricted space applications
	Easy wiring, simple installation

Select to view or print catalog page for DIN 43650 Form A Plug

Plug-in connection for electrical devices and components, especially solenoid valves according to DIN 43 650, form A.

	View PDF File Cable Plug to DIN 43650, Form A / Width: 28,0 mm

Select to enlarge view

PDF FILE LIST
(Select to view or print)

	TYPE	DESCRIPTION
	2506	Cable Plug to DIN 43650, Form C / Width: 15.8 mm
	2507	Cable plug to DIN 43650, Form B / Width: 20.8 mm
	2508	Cable Plug to DIN 43650, Form A / Width: 28,0 mm
	2509	Class H Cable Plug - 1/2"Conduit Connection, UR, UL, FM Approved, 1.28" Width, 0.70" Contact Clearance, 0-250V
	2510	Cable Plug to DIN 43650, Form C, EaseOn Technology, EaseOn
	2510/11	Cable Plug to DIN 43650, Form C and A, EaseOn Technology, EaseOn, AS-i Bus version
	2511	Cable Plug to DIN 43650, Form A, (HL) High power electronic version, (HL) High power electronic version
	2512	Cable Plug to DIN 43650, Form A, EaseOn Technology, EaseOn
