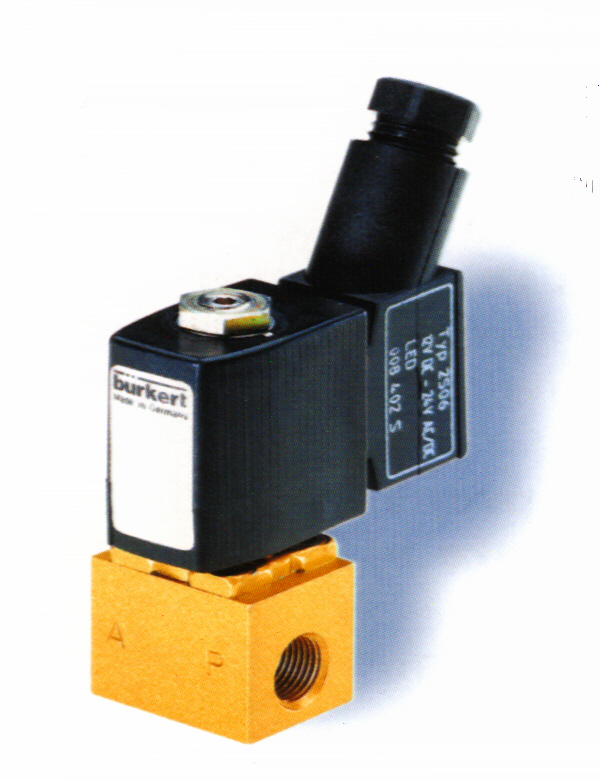

6011 Miniature Solenoid Valve with threaded port connection |
 |
 |
2/2-Way,
Miniature Solenoid Valve NPT 1/8, 0 -170 PSI Normally Closed |
|||||||
|
||||||||
| Direct acting. Brass body valve for neutral gases and liquids such as compressed air, water, hydraulic oil. Stainless steel valve for more difficult and slightly aggressive media. Suitable for technical vacuum. | ||||||||
| Technical Data | |
| Pressure Range | 0 - 170 PSI |
| Temperature media | +14°F ... +212°F |
| Ambient temperature | +131°F, max. |
| Body material | Brass, Stainless steel |
| Seat material | FKM |
| Coil material | Polyamide |
| Power consumption | DC: 4W; AC: 9W (inrush), 6 VA (hold) |
| Protection class with cable plug | IP 65 (standard delivery: cable plug DIN 43 650 C, 0-250V) |
| Options | |
| - Wide range of cable plug options, Type 2506 with LED and varistor | |
| Specifications | |||||
| Port
Connection [inch] |
Orifice [inch] | Cv | Pressure Range (AC) [PSI] | Pressure Range (DC) [PSI] | Weight [oz.] |
| Brass valve body | |||||
| NPT 1/8 | 1/16 | 0.07 | 0-170 | 0-85 | 4.62 |
| NPT 1/8 | 5/64 | 0.13 | 0-115 | 0- | 4.62 |
| NPT 1/8 | 3/32 | 0.15 | 0-85 | 0- | 4.62 |
| Stainless steel valve body | |||||
| UNF 1/8 | 1/16 | 0.07 | 0-170 | 0-85 | 4.62 |
| UNF 1/8 | 5/64 | 0.13 | 0-115 | 0-65 | 4.62 |
| UNF 1/8 | 3/32 | 0.15 | 0-85 | 0-42 | 4.62 |
| ORDERING CHART | ||
| Part Number |
Description |
Order
Now!
|
| BU 456780D | Type
6011 Burkert BU 456780D 2/2-Way Miniature Solenoid Valve NPT 1/8, 24VDC, N.C. Brass Body |
 |
| BU 456781S | Type
6011 Burkert BU 456781S 2/2-Way Miniature Solenoid Valve NPT 1/8, 24V/60Hz, N.C. Brass Body |
|
| BU 456782T | Type
6011 Burkert BU 456782T 2/2-Way Miniature Solenoid Valve NPT 1/8, 120V/60Hz, N.C. Brass Body |
|
| BU 456783U | Type
6011 Burkert BU 456783U 2/2-Way Miniature Solenoid Valve NPT 1/8, 240V/60Hz, N.C. Brass Body |
|
| BU 456784V | Type
6011 Burkert BU 456784V 2/2-Way Miniature Solenoid Valve NPT 1/8, 24VDC, N.C. Brass Body |
|
| BU 456785W | Type
6011 Burkert BU 456785W 2/2-Way Miniature Solenoid Valve NPT 1/8, 24V/60Hz, N.C. |
|
| BU 456786X | Type
6011 Burkert BU 456786X 2/2-Way Miniature Solenoid Valve NPT 1/8, 120V/60Hz N.C. Brass Body |
|
| BU 456787Y | Type
6011 Burkert BU 456787Y 2/2-Way Miniature Solenoid Valve NPT 1/8, 240V/60Hz, N.C. Brass Body |
|
| BU 456788H | Type
6011 Burkert BU 456788H 2/2-Way Miniature Solenoid Valve NPT 1/8, 24VDC, N.C. Brass Body |
|
| BU 456789A | Type
6011 Burkert BU 456789A 2/2-Way Miniature Solenoid Valve NPT 1/8, 24V/60Hz, N.C. Brass Body |
|
| BU 456790F | Type
6011 Burkert BU 456790F 2/2-Way Miniature Solenoid Valve NPT 1/8, 120V/60Hz, N.C. Brass Body |
|
| BU 456791U | Type
6011 Burkert BU 456791U 2/2-Way Miniature Solenoid Valve NPT 1/8, 240V/60Hz N.C. Brass Body |
|
