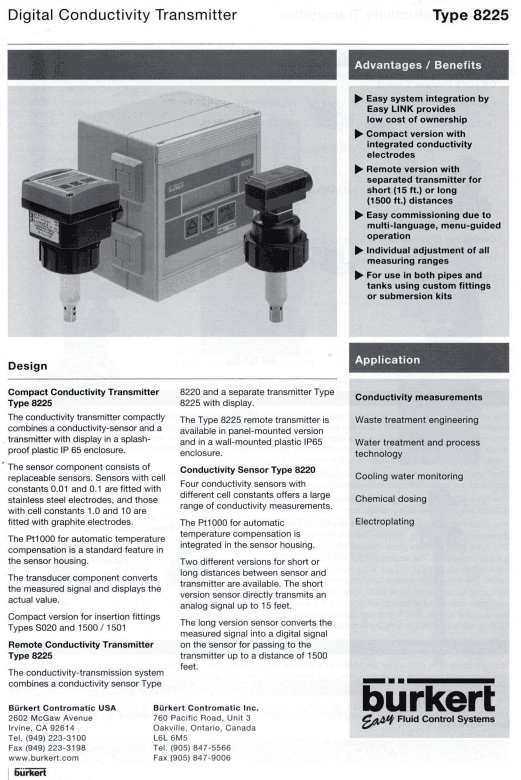

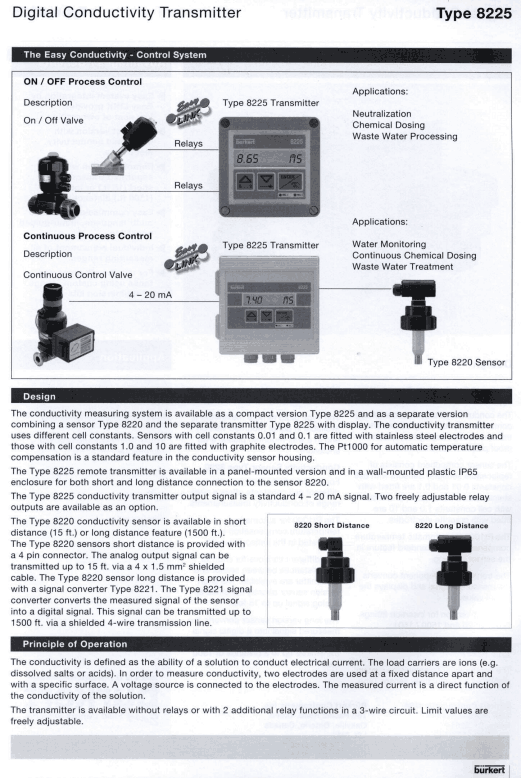

| DESIGN |
 |
|
Compact Conductivity
Transmitter Type 8225
The conductivity transmitter compactly combines an conductivity
sensor and electronics and a transmitter with display in
a splash-proof plastic IP 65 enclosure.
The sensor component

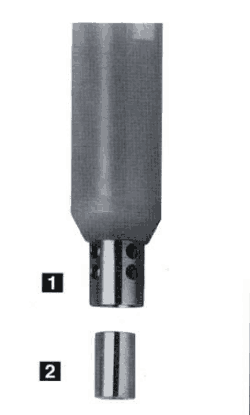

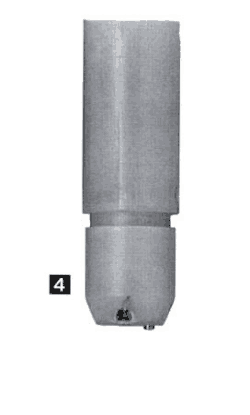

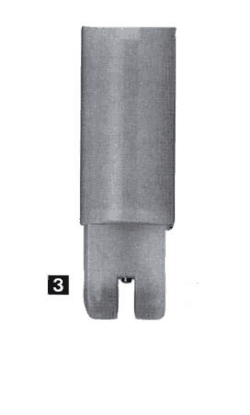

consists of a replaceable sensors. Sensors with cell constants
0.01 and 0.1 are fitted with stainless steel electrodes,
and those with cell constants 1.0 and 10 are fitted with
graphite electrodes.
The Pt1000 for
automatic temperature compensation is a standard feature
in the sensor housing.
The transducer
component converts the measured signal and displays the
actual value.
Compact version
for fitting Types S020 and 1500 / 1501.

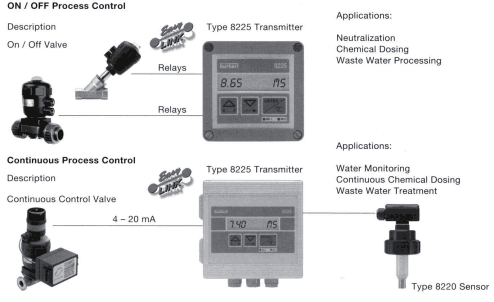

Remote Conductivity
Transmitter Type 8225
The conductivity transmission system combines a conductivity
sensor Type 8200 and a separate transmitter Type 8225 with
display. The 8225 remote transmitter is available in a panel-mounted
version and in a wall-mounted plastic IP 65 enclosure.
Conductivity
Sensor Type 8200
Four conductivity sensors with different cell constants
offers a large range of conductivity measurements.
 The
Pt1000 for automatic temperature compensation is integrated
in the sensor housing.
Two different
versions for short or long distances between sensor and

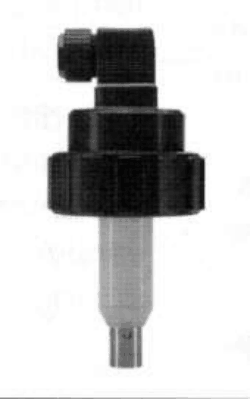

transmitter are available. The short version sensor directly
transmits an analog signal up to 15 feet.

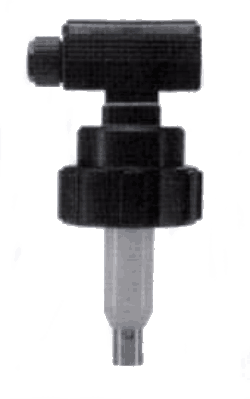

The long version
sensor converts the measured signal into a digital signal
on the sensor for passing to the transmitter up to a distance
of 1500 feet.
|
| APPLICATIONS
|
|
| •
Conductivity measurements |
•
Water treatment and process technology |
| •
Waste treatment engineering |
•
Cooling water monitoring |
| •
Chemical dosing |
•
Electroplating |
|
| |
|
|

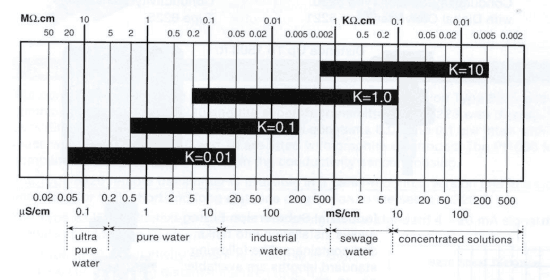

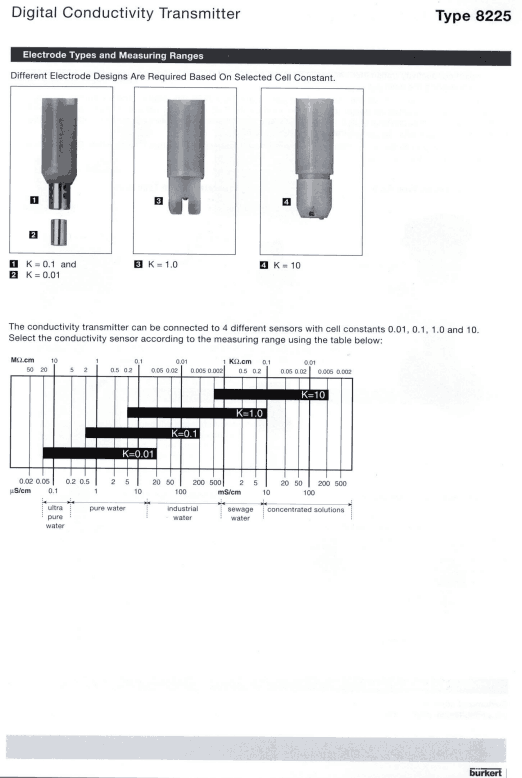

| Electrode
