Shielded
Level Switch ES10-795-PP
Series
10 Product Group
|
|
Hundreds of thousands
of 10-782s are being used in many ways that touch your everyday
life. How about soft drink dispensers, RO water dispensers,
ice cream machines, food warmers, coffee makers, chemical etching
machines, film processors, poultry feeders, copy machines, dishwashers,
equipment lubricators, fuel tanks... |
| Vertical
Mounted Level Switches |
|
|
 ES10-795
Shielded Level Switch

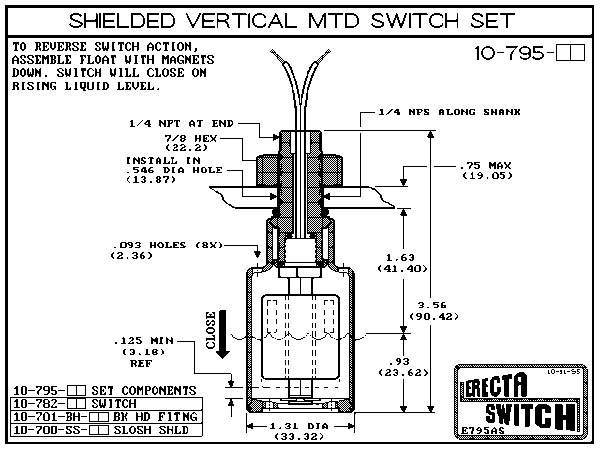

The ES10-795 Shielded
Verticle Mounted Switch Set adds a 1/4" bulk head fitting
and slosh shield to the ES10-782 switch. This protects the
switch from wave motion and allows mounting through a hole
in a bulk head up to 3/4" thick or connection to NPT
pipe fittings or threaded boss. All ERECTA SWITCH solutions
are manufactured in Polypropylene, Acetal and PVDF Kynar offering
compatibility across the broadest range of applications. The
ES10-795 mates with other ERECTA SWITCH accessories to enable
many other custom assemblies.
|
| ORDERING
INFORMATION |
|
|
Erecta Switch ES10-795-PP
Polypropylene Shielded Vertical Level Switch |
|
|
|
Erecta Switch ES10-795-AC
Acetyl Shielded Vertical Level Switch |
|
|
|
Erecta Switch ES10-795-KR
Shielded Kynar Vertical Level Switch |
|
|
| FLOAT
BUOYANCY IN SPECIFIC GRAVITY 1.0 |
| Float |
|
|
Medium
|
| Exposed |
|
|
Air
|
| Submerged |
|
|
Water
|
| Height |
|
|
---
|
| ELECTRICAL
RATINGS |
| Contact
rating |
0.8
AMP, 120V, 60 Hz, Resistive
0.4 AMP, 240V, 60 Hz, Resistive
3.36 VA, 240V, 60 Hz
Pilot Duty |
| DC |
1
AMP Max @ 24 VDC Resistive |
| APPLICATION
ENVIRONMENT |
| Pressure
(Hollow Float) |
100
PSI MAX @ 20°C |
Derate,
Zero @ 90°C |
| Temperature |
90°C
MAX |
---
|
| Specific
Gravity |
0.8
MIN |
Clear
Liquid |
| Position
Extreme |
30°
Cant MAX |
Off
Vertical |
| MATERIALS
OF CONSTRUCTION |
| All
Models [PP] |
Polypropylene
(Gray, blue & black) |
| All
Models [AC] |
Acetal
(Red) |
| All
Models [KR] |
Kynar,
PVDF (Natural) |
|
| |
| |
|
|
|
| |
| |
