Custom
Pump Control System
Series
20 Product Group
|
|
The ERECTA SWITCH
Series 20 Pump Control System is designed to handle industrial
control jobs like switching contactors, motor starters and
solenoid valves. 20s use the Yaskawa Control Bestact™
hermetically sealed switch element.
20s use a common

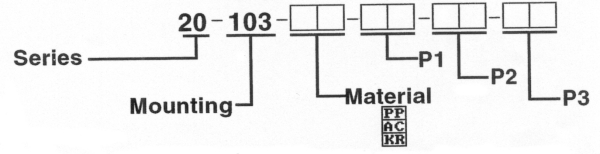

parts set and assembly style. Complementary ERECTA SWITCH
components make length, switch action, switch position, mounting
and electrical interface a matter of choice. Disciplined assemblies
and precision parts make field repairs practical.
20s switches and
pump control configurations are valuable in AC and DC industrial
control applications where compact size, corrosion resistance,
long life and repairability are important for high-low pump
control, electroplating, semiconductor processing, diesel
day tanks, etc...
|
|
Heavy
Duty Switch Configurations
|
|
ES20-101-PP
|
ES20-101-PP One Level
Polypropylene Multi-Level Switch with Relay Housing
|
 |
| ES20-101-AC |
ES20-101-AC
One Level Acetyl Multi-Level Switch with Relay Housing |
|
| ES20-101-KR |
ES20-101-KR
One Level Kynar Multi-Level Switch with Relay Housing |
|
|
ES20-102-PP
|
ES20-102-PP
One Level Polypropylene Multi-Level Switch with Relay Housing
|
|
| ES20-102-AC |
ES20-102-AC
One Level Acetyl Multi-Level Switch with Relay Housing |
|
| ES20-102-KR |
ES20-102-KR
One Level Kynar Multi-Level Switch with Relay Housing |
|
|
ES20-103-PP-PP
|
ES20-103-PP-PP
Two Level Polypropylene Multi-Level Switch with Relay Housing
|
|
| ES20-103-AC-AC |
ES20-103-AC-AC
Two Level Acetyl Multi-Level Switch with Relay Housing |
|
| ES20-103-KR-KR |
ES20-103-KR-KR
Two Level Kynar Multi-Level Switch with Relay Housing |
|
|
ES20-104-PP-PP
|
ES20-104-PP-PP
Two Level Polypropylene Multi-Level Switch with Relay Housing
|
|
| ES20-104-AC-AC |
ES20-104-AC-AC
Two Level Acetyl Multi-Level Switch with Relay Housing |
|
| ES20-104-KR-KR |
ES20-104-KR-KR
Two Level Kynar Multi-Level Switch with Relay Housing |
|
|
ES20-105-PP-PP-PP
|
ES20-105-PP-PP-PP
Three Level Polypropylene Multi-Level Switch with Relay Housing
|
|
| ES20-105-AC-AC-AC |
ES20-105-AC-AC-AC
Three Level Acetyl Multi-Level Switch with Relay Housing |
|
| ES20-105-KR-KR-KR |
ES20-105-KR-KR-KR
Three Level Kynar Multi-Level Switch with Relay Housing |
|
|
ES20-106-PP-PP-PP
|
ES20-106-PP-PP-PP
Three Level Polypropylene Multi-Level Switch with Relay Housing
|
|
| ES20-106-AC-AC-AC |
ES20-106-AC-AC-AC
Three Level Acetyl Multi-Level Switch with Relay Housing |
|
| ES20-106-KR-KR-KR |
ES20-106-KR-KR-KR
Three Level Kynar Multi-Level Switch with Relay Housing |
|
|
These
high value control instruments are designed for industrial
control circuits, featuring a housing for relay / components
and conduit connections.
|
|
| Pump
Control Configurations |
|
ES20-201-PP
|
ES20-201-PP
2" Mount 1 Station Polypropylene 120 VAC Pump Control |
|
| ES20-201-AC |
ES20-201-AC
2" Mount 1 Station Acetyl 120 VAC Pump Control |
|
| ES20-201-KR |
ES20-201-KR
2" Mount 1 Station Kynar 120 VAC Pump Control |
|
|
ES20-202-PP
|
ES20-202-PP
2" Mount 1 Station Polypropylene
240
VAC Pump Control |
|
| ES20-202-AC |
ES20-202-AC
2" Mount 1 Station Acetyl
240
VAC Pump Control |
|
| ES20-202-KR |
ES20-202-KR
2" Mount 1 Station Kynar
240
VAC Pump Control |
|
|
ES20-203-PP
|
ES20-203-PP
Flange Mount 1 Station Polypropylene
120
VAC Pump Control |
|
| ES20-203-AC |
ES20-203-AC
Flange Mount 1 Station Acetyl
120
VAC Pump Control |
|
| ES20-203-KR |
ES20-203-KR
Flange Mount 1 Station Kynar
120
VAC Pump Control |
|
|
ES20-204-PP
|
ES20-204-PP
Flange
Mount 1 Station Polypropylene
240
VAC Pump Control |
|
| ES20-204-AC |
ES20-204-AC
Flange
Mount 1 Station Acetyl
240
VAC Pump Control |
|
| ES20-204-KR |
ES20-204-KR
Flange
Mount 1 Station Kynar
240
VAC Pump Control |
|
|
ES20-205-PP
|
ES20-205-PP
2" Mount 120 VAC 2 Station Polypropylene
High-Low
Pump Control |
|
| ES20-205-AC |
ES20-205-AC
2" Mount 120 VAC 2 Station Acetyl
High-Low
Pump Control |
|
| ES20-205-KR |
ES20-205-KR
2" Mount 120 VAC 2 Station Kynar
High-Low
Pump Control |
|
|
ES20-206-PP
|
ES20-206-PP
2" Mount 240 VAC 2 Station Polypropylene
High-Low
Pump Control |
|
| ES20-206-AC |
ES20-206-AC
2" Mount 240 VAC 2 Station Acetyl
High-Low
Pump Control |
|
| ES20-206-KR |
ES20-206-KR
2" Mount 240 VAC 2 Station Kynar
High-Low
Pump Control |
|
|
ES20-207-PP
|
ES20-207-PP
Flange Mount 120 VAC 2 Station Polypropylene
High-Low
Pump Control |
|
| ES20-207-AC |
ES20-207-AC
Flange Mount 120 VAC 2 Station Acetyl
High-Low
Pump Control |
|
| ES20-207-KR |
ES20-207-KR
Flange Mount 120 VAC 2 Station Kynar
High-Low
Pump Control |
|
|
ES20-208-PP
|
ES20-208-PP
Flange Mount 240 VAC 2 Station Polypropylene
High-Low
Pump Control |
|
| ES20-208-AC |
ES20-208-AC
Flange Mount 240 VAC 2 Station Acetyl
High-Low
Pump Control |
|
| ES20-208-KR |
ES20-208-KR
Flange Mount 240 VAC 2 Station Kynar
High-Low
Pump Control |
|
|
Pump
control configurations provide single point and start latch
—>stop—>unlatch control of pumps, and valves
or high low alarm. These high value control instruments feature
a relay housing containing a high quality 20 amp 1-1/2 HP
industrial relay and includes a manual overide circuit.
|
|
| FLOAT
BUOYANCY IN SPECIFIC GRAVITY 1.0 |
|
pp
|
AC
|
KR
|
|
| Float |
Inches
|
MM
|
Inches
|
MM
|
Inches
|
MM
|
Medium
|
| Exposed |
1.0
|
25.4
|
0.65
|
16.5
|
0.30
|
7.6
|
air
|
| Submerged |
1.05
|
26.7
|
1.40
|
35.6
|
1.75
|
44.5
|
Water
|
| Height |
2.05
|
52.1
|
2.05
|
52.1
|
2.05
|
52.1
|
---
|
| ELECTRICAL
RATINGS |
| Contact
life |
240
VAC MAKE 5, BREAK .5 100K OPERATIONS
115 DC MAKE .3, BREAK .3, 300K OPERATIONS |
| Contact
rating |
120
VA, 240 VAC Inductive |
| Class
1, Division 2, Groups A,B,C,D. |
| AC |
240V
.5 AMP, 10 AMP MAX MAKE, 24V 1 MA MIN |
| DC |
115V
.3 AMP, .5 AMP MAX MAKE, 24V 1 MA MIN |
| APPLICATION
ENVIRONMENT |
| Pressure
(Hollow float) |
80
PSI MAX @ 20°C |
Derate,
Zero @ 90°C |
| Temperature |
90°C
MAX |
---
|
| Specific
Gravity, pp |
.80
MIN |
Clear
Liquid |
| Specific
Gravity, AC |
.75
MIN |
Clear
Liquid |
| Specific
Gravity, KR |
.95
MIN |
Clear
Liquid |
| MATERIALS
OF CONSTRUCTION |
| All
Models [PP] |
Polypropylene
(Gray, blue & black) |
| All
Models [AC] |
Acetal
(Red) |
| All
Models [KR] |
Kynar,
PVDF (Tan) |
