FINNED TUBULAR HEATERS

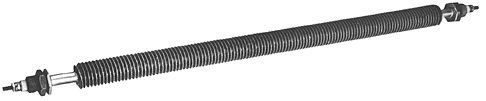

Finned Tubular Heater
Fins increase heat transfer surface area allowing higher wattage in the same space requirement of non-finned units Available in .312",.375",.430",.475"and.625" element diameter 2 fin diameter selections Continuous spiral fins of steel with rust and corrosion protection to 850F/455C Five turns per linear inch of element 38, 50 and 67 watts per square inch Standard terminal is Fig.1 - any terminal design available Stainless steel fins and Stainless steel element available for operation to 1200F/650C. Incoloy sheath and fins are available in some diameters for additional protection in high temperature processes

Finned Tubular Heater - Straight
Element Diameter
Standard Fin Outside Diameter
Small Fin Outside Diameter
.312" .
1.0312"
.830"
375"
1.093"
.890"
.430"
1.156"
.948"
.475"
1.1875"
.993"
.625"
1.375"
1.14"
