Type F - High Temperature Leads 12" long 850°F/450°C insulated lead wires are standard. Specify longer length. Also available with full length fiberglass sleeveing.



Type C - Armor Cable Leads Armor cable is the best protection for abrasion. 12" cable and 14" overall leads are standard.

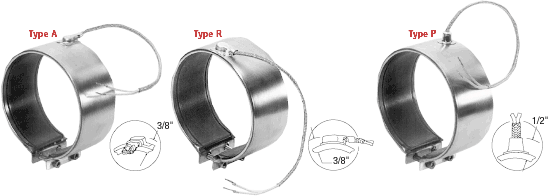

Type A / Type R / Type P - Metal Braided Leads
Double conductor metal braid provides excellent abrasion protection and flexibility. Standard Length is 12" braid with 14" overall lead wires. Specify additional length if required. Type P and Type R are available without metal braid.



Type H - Hole or Cut-out Mighty-Tuff Band Heaters can be manufactured with thermocouple holes, slots or notches. Consult Ogden.



Mighty-Tuff with Insulated Shroud Mighty-Tuff Band Heaters are available with an insulated shroud. Similar in effect to Ceramic Band Heaters, heat losses to the environment are greatly reduced. However, because of the thin profile and compressed design, the Mighty-Tuff transfers heat to the cylinder rapidly. The Insulated Mighty-Tuff is also much less susceptible to the problem of contamination than a Ceramic Band Heater. Consult Ogden for information and designs based upon a specific requirement.



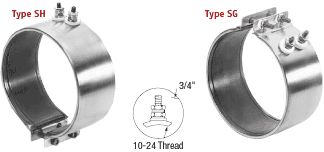

Type E - One Piece Expandable (Shown with Type SG terminals) Specify termination, terminal location and other options.



Type T - Two Piece Construction (Shown with Type A leads and optional spring loaded screws) Specify termination, terminal location and other options.

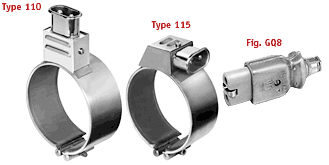

European Style High Temperature Plugs Type 110: 2-1/2" H x 1-3/16" L x 2-1/8" W Type 115: Dimensions - 1-1/4" H x 3-1/4"L x 1-11/16"W Fig. GQ8: Receptacle PC4396-3 Other plugs attached to leads are available.

MOUNTING

Type L - Mounting Flange Standard on all Mighty-Tuff Band Heaters. Supplied with Socket Head Cap Screw.

Type S Mighty-Tuff Band Heaters are available with 5/8" wide straps. Some dimensional restrictions may apply based on lead type, position and width.



Type BL Low Profile Barrel Nut Assembly Welded to Sheath.

Type BW 1-1/4" Wide Barrel Nut Assembly Welded to Sheath.



Type BN Standard Profile Barrel Nut Assembly Welded to Sheath.

Type BT Quick Release Barrel Nut Assembly Welded to Sheath.



Type BR Quick Release Assembly with Spring Loaded Screw Welded to Sheath.

Other Options · Full length fiberglass sleeving · Ground Wire · Ceramic Terminal Covers · Standard NEMA Plugs · Built-in Thermocouple



Recommended Maximum Watt Density for 1-1/2" Wide Mighty-Tuff Band Heaters: · Cycled moderately. · Tightly clamped on a · smooth surface. · For units over 2" in width, · multiply watt density by 0.8. · Where insulating blankets are · used, multiply watt density · by 0.7. · See the technical section for · estimating watt density.



	Diameter		Minimum Width
	Minimum	Maximum
Full Band	1"	14"	1"
One Piece  Expandable (Type E)	3"	14"	1"
Two Piece Type T	3"	26"	1"
Type SG Terminals	1-1/2"	--	2"
Type SH Terminals	1-1/2"	--	1-1/2"
Type F Leads	1"	14"	1"
Type A Leads	1"	--	1"
Type P Leads	1"	--	1"
Type R Leads	1"	--	1"
Type C Leads	1"	--	1"
Terminal Box	3-1/2"	--	1-1/2"
Type 110	3-1/2"	--	1-1/8"
Type 115	4"	--	2"

Minimum width: 1", maximum width: 6".
Standard gap: 1/4" - 1" depending upon I.D.
