ITW Vortec
products use innovative compressed air technologies to increase equipment
efficiency, improve manufacturing productivity, and eliminate more
costly methods for spot and enclosure cooling, |
Air
Knife / Airflow Amplifier
|
|
Air
Knives and Airflow Amplifiers deliver a powerful, uniform high velocity
air flow to blow off wide flat surfaces, moving webs & large objects |
|
|
Curtain
Transvectors use a small amount of filtered compressed air to produce
a powerful, high velocity, uniform air flow. |
|
|
Curtain Transvector 6" (152mm) |
|
|
Curtain Transvector 12" (305mm) |
|
|
Curtain Transvector 18"
(457mm) |
|
|
Curtain Transvector 24" (610mm) |
| |
|
|
|

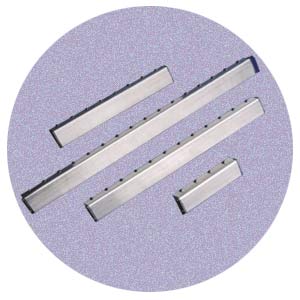

Curtain
Transvectors produce a powerful sheet of air for use in applications
where high temperatures, purity or corrosion resistance is a concern. |
|
|
Curtain Transvector 6" (152mm) |
|
|
Curtain Transvector 12" (305mm) |
|
|
Curtain Transvector 18"
(457mm) |
|
|
Curtain Transvector 24" (610mm) |
| |
|
| Aluminum
Body Air Knife / Airflow Amplifiers |
| Model
# 921-6 Curtain
Transvector 6" (152mm) |
 |
Model # 921-6
6" (152mm) Curtain Transvector
1/4" NPT(F)
inlet
Recommended
products: 701S-24A,
|
 |
|
|
Model
# 921-12
Curtain Transvector 12" (305mm) |
 |
Model #: 921-12
12" (305mm) Curtain Transvector
1/4" NPT(F)
inlet
Recommended
products: 701S-36A,
|
 |
|
|
| Model
# 921-18
Curtain Transvector 18"
(457mm) |
 |
Model
#: 921-18
18" (457mm) Curtain Transvector
(2)1/4"NPT(F)inlets
Recommended
products: 701S-40A,
|
 |
|
|
| Model
#: 921-24 Curtain
Transvector 24" (610mm) |
 |

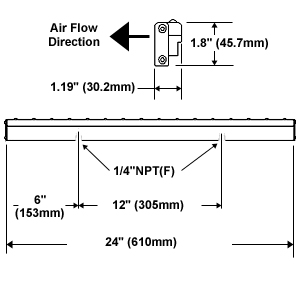

Model #: 921-24
24" (610mm) Curtain Transvector
(2)1/4" NPT(F)
inlets
Recommended
products: 701S-40A,
|
 |
|
|
| Stainless
Steel Body
Air Knife / Airflow Amplifiers |
| Model
# 921SS Curtain
Transvector 6" (152mm) |
 |
Model #: 921SS
6" (152mm) Curtain Transvector
1/4"NPT(F)inlet
Recommended
products: 701S-24A,
|
|
|
|
| Model
# 922SS Curtain
Transvector 12" (305mm) |
 |

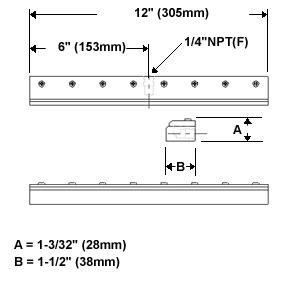

Model #: 922SS
12" (305mm) Curtain Transvector
1/4"NPT(F)inlet
Recommended
products: 701S-36A,
|
|
|
|
| Model
# 924SS Curtain
Transvector 18"
(457mm) |
 |

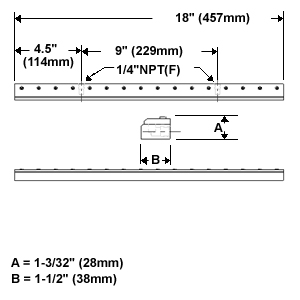

Model
#: 924SS
18" (457mm) Curtain Transvector
(2) 1/4"NPT(F)inlets
Recommended
products: 701S-40A,
|
|
|
|
| Model
# 923SS Curtain
Transvector 24" (610mm) |
 |

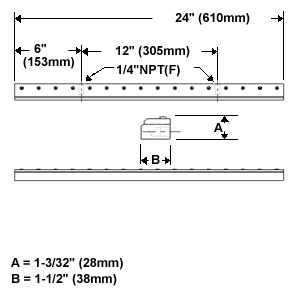

Model #: 923SS
24" (610mm) Curtain Transvector
(2) 1/4"NPT(F)inlets
Recommended
products: 701S-40A,
|
|
|
| |
