ITW Vortec
products use innovative compressed air technologies to increase equipment
efficiency, improve manufacturing productivity, and eliminate more
costly methods for spot and enclosure cooling, |
Cold
Pump Air Conditioner (NEMA 12)
|
Cold
Pump Cooling Systems are thermostatically-controlled, closed-loop
air conditioners that use CFC-FREE R22 or HFC-134A refrigerants.
- UL
Listed / CE Approved
- Maintain NEMA 12 integrity
- Digital thermostat
preset to 75*F (23*C) (clockwise adjustment = cooler temperature
/ counterclockwise adjustment = warmer temperature)
- Flashing high temperature
alarm (125*F / 52*C)
- Automatic reset thermal
overload protection
- Washable aluminum
external air filter
- Continuous evaporative
condensate management system eliminates drain tubes, buckets &
wet slippery floors
- Suction and discharge
compressor access fittings
|
|
|
UL
Listed and CE Approved air conditioners eliminate heat-related downtime
by keeping sensitive electronics/electrical enclosures cool &
clean. Capacities: 1800 BTUH to 6000 BTUH |
|
|
Cold
Pump Air Conditioner (1800 BTUH / 115V) |
|
|
Cold
Pump Air Conditioner (1800 BTUH / 220V) |
|
|
Cold Pump Air Conditioner (2200 BTUH / 115V) |
|
|
Cold Pump Air Conditioner (2200 BTUH / 230V) |
|
|
Cold Pump Air Conditioner (4000 BTUH / 115V) |
|
|
Cold Pump Air Conditioner (4000 BTUH / 230V) |
|
|
Cold Pump Air Conditioner (6000 BTUH / 115V) |
|
|
Cold Pump Air Conditioner (6000 BTUH / 230V) |
| |
| **
Due to the size and weight of the Cold Pump Air Conditioners, they
must be shipped via Roadway freight Collect. Cold Pumps may ship from
ITW Vortec in Cincinnati, Ohio and the freight charges on Roadway
may be calculated as such. |
|
| Model
# 518S

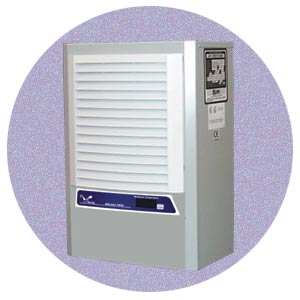

Cold Pump Air Conditioner (1800 BTUH / 115V) |
 |
 Model
# 518S
Cold Pump Air Conditioner (1800 BTUH / 115V)
1800 BTUH (454
kCal/hr)
115V/50-60 Hz (thermostat control)
NEMA 12
|
 |
|
|
Model
# 518SF
Cold Pump Air Conditioner (1800 BTUH / 220V) |
|
Model
# 518SF
Cold Pump Air Conditioner (1800 BTUH / 220V)
1800 BTUH (454
kCal/hr)
220V/ 50-60 Hz (thermostat control)
NEMA 12
|
 |
|
|
| Model
# 518T

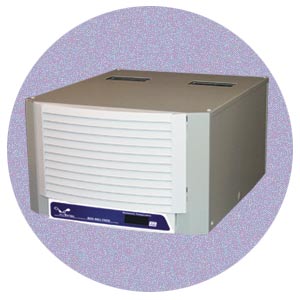

Cold Pump Air Conditioner (2200 BTUH / 115V) |
 |
 Model
#: 518T
Cold Pump Air Conditioner (2200 BTUH / 115V)
2200 BTUH (554
kCal/hr)
115V/50-60 Hz (thermostat control)
NEMA 12
|
 |
|
|
| Model
# 518TF Cold
Pump Air Conditioner (2200 BTUH / 230V) |
|
Model
#: 518TF
Cold Pump Air Conditioner (2200 BTUH / 230V)
2200 BTUH (554
kCal/hr)
220V/ 50-60 Hz (thermostat control)
NEMA 12
|
|
|
|
| Model
# 540S

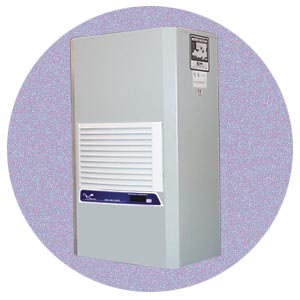

Cold Pump Air Conditioner (4000 BTUH / 115V) |
 |
 Model
#: 540S
Cold Pump Air Conditioner (4000 BTUH / 115V)
4000 BTUH (1008
kCal/hr)
115V/50-60 Hz (thermostat control)
NEMA 12
|
 |
|
|
| Model
# 540SF
Cold Pump Air Conditioner (4000 BTUH / 230V) |
|
Model
#: 540SF
Cold Pump Air Conditioner (4000 BTUH / 230V)
4000 BTUH (1008
kCal/hr)
230V/50-60 Hz (thermostat control)
NEMA 12
|
 |
|
|
| Model
# 560S Cold

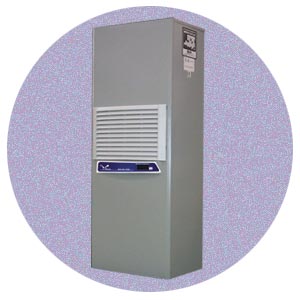

Pump Air Conditioner (6000 BTUH / 115V) |
 |
 Model
#: 560S
Cold Pump Air Conditioner (6000 BTUH / 115V)
6000 BTUH (1512
kCal/hr)
115V/60 Hz (thermostat control)
NEMA 12
|
 |
|
|
| Model
# 560SF
Cold Pump Air Conditioner (6000 BTUH / 230V) |
|
Model
#: 560SF
Cold Pump Air Conditioner (6000 BTUH / 230V)
6000 BTUH (1512
kCal/hr)
230V/50-60 Hz (thermostat control)
NEMA 12
|
 |
|
|
| |
|
|
|
