Round
Airflow Amplifiers (aluminum body)
|
|
Round Transvectors are
used in both ducted and unducted applications. In ducted applications,
they are used at flow rates up to 2400 SCFM (67920 slpm). Transvectors
are excellent for ventilating, air conveying, drying and cooling.
Transvectors wide range of applications include:
- Air conveying any
material that can be moved in an airflow including grain, plastic
pellets, sawdust, powder, capsules, metal chips, paper & cloth
trim, lint, dust, small parts, stamping scrap and lead shot
- Ventilating and exhausting
welding, soldering and machine smoke, auto exhaust, plating tank
fumes and other gases
- Surface cooling of
molded parts, castings, etc.
|
|
|

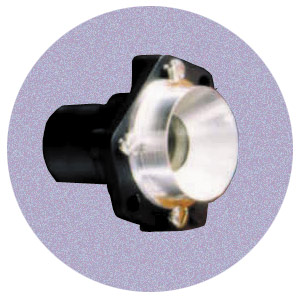

Transvector
Airflow Amplifier (0.79" throat) |
|
|

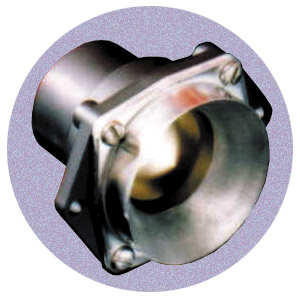

Transvector
Airflow Amplifier (1.57" throat) |
|
|

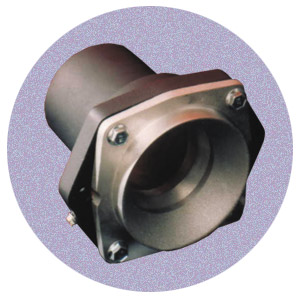

Transvector
Airflow Amplifier (3.00" throat) |
| Click
on Model Number for more details and/or sizing software to assist
in proper Round Airflow Amplifiers (aluminum body) selection. |

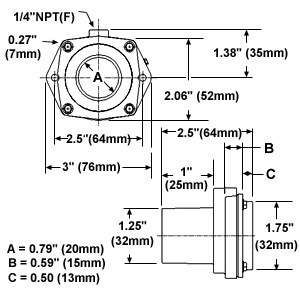

| Model
# 902 Transvector Airflow Amplifier (0.79"
throat) |
 |
Model
# 902
Transvector Airflow Amplifier (0.79" throat)
 19
SCFM (540 SLPM) compressed air usage
204 CFM (5773 LPM) total air flow
1/4"NPT(F) inlet
Available for immediate shipment
Recommended
products: 701S-24A, 701S-48
|
 |
|

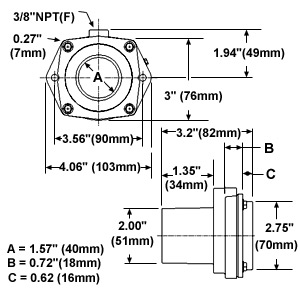

| Model
# 903 Transvector
Airflow Amplifier (1.57" throat) |
 |
Model
# 903 Transvector Airflow Amplifier (1.57"
throat)
 25
SCFM (708 SLPM) compressed air consumption
475 CFM (13443 LPM) total air flow
3/8"NPT(F) inlet
Available for immediate shipment
Recommended
products: 701S-24A, 701S-48
|
 |
|

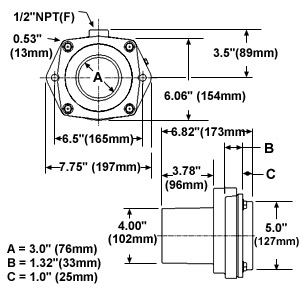

| Model
# 904 Transvector
Airflow Amplifier (3.00" throat) |
 |
Model
#: 904 Transvector
Airflow Amplifier (3.00" throat)
 71
SCFM (2012 SLPM) compressed air consumption
1420 CFM (40186 LPM) total air flow
1/2"NPT(F) inlet
Available for immediate shipment
Recommended
products: 701S-40A, 701S-54
|
 |
|
|
|
|
