Round
Airflow Amplifiers (stainless steel body)
|
Round Transvectors are used in both ducted and unducted applications.
In ducted applications, they are used at flow rates up to 2400 SCFM
(67920 slpm). Transvectors are excellent for ventilating,
air conveying, drying and cooling. Transvectors wide range
of applications include:
- Air conveying any
material that can be moved in an airflow including grain, plastic
pellets, sawdust, powder, capsules, metal chips, paper & cloth
trim, lint, dust, small parts, stamping scrap and lead shot
- Ventilating and exhausting
welding, soldering and machine smoke, auto exhaust, plating tank
fumes and other gases
- Surface cooling of
molded parts, castings, etc.
|
|
|
Transvector
Airflow Amplifier (0.39" throat) |
|
|
Transvector
Airflow Amplifier (0.79" throat) |
|
|
Transvector
Airflow Amplifier (1.57" throat) |
| Click
on Model Number for more details and/or sizing software to assist
in proper Round Airflow Amplifiers (stainless steel body) selection. |
|
| Model

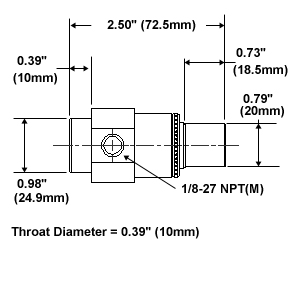

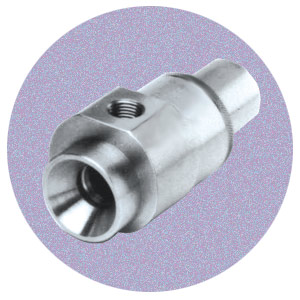

# 901XSS Transvector
Airflow Amplifier (0.39" throat) |
 |
Model # 901XSS
Transvector Airflow
Amplifier (0.39" throat)
 9
SCFM (255 SLPM) compressed air consumption
45 CFM (1358 LPM) total air flow
1/8"NPT(M) inlet
Available for immediate shipment
Recommended
products: 701S-24A, 701S-48,
|
 |
|
| Model

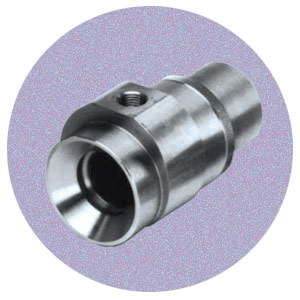

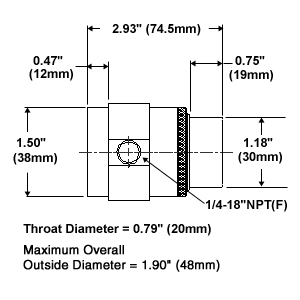

# 902XSS Transvector
Airflow Amplifier (0.79" throat) |
 |
Model # 902XSS
Transvector Airflow
Amplifier (0.79" throat)
 17
SCFM (482 SLPM) compressed air consumption
204 CFM (5773 LPM) total air flow
1/4"NPT(F) inlet
Available for immediate shipment
Recommended
products: 701S-24A, 701S-48,
|
 |
|
| Model

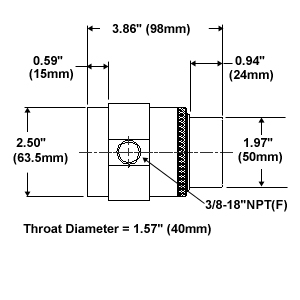

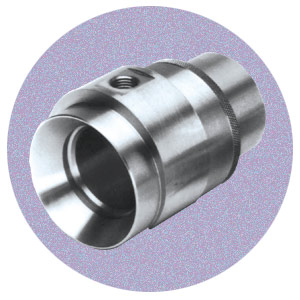

# 903XSS Transvector Airflow Amplifier (1.57" throat) |
 |
Model #: 903XSS
Transvector Airflow
Amplifier (1.57" throat)
 25
SCFM (708 SLPM) compressed air consumption
475 CFM (13443 LPM) total air flow
3/8"NPT(F) inlet
Available for immediate shipment
Recommended products: 701S-24A, 701S-48,
|
 |
|
| |
|
|
|
