ITW Vortec
products use innovative compressed air technologies to increase equipment
efficiency, improve manufacturing productivity, and eliminate more
costly methods for spot and enclosure cooling, |

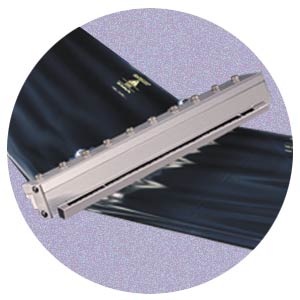

Static
Removal/ Ionizing Curtain Transvectors
|
 |
Ionizing
Curtain/Knife Amplifier
neutralize static & blow off surface areas to eliminate contamination-related
surface quality rejections. Eliminate web roll-up mis-alignment caused
by static electricity. |
|
|
Ionizing
Curtain Transvector (6" lg) |
|
|
Ionizing Curtain Transvector (12" lg) |
|
|
Ionizing Curtain Transvector (18" lg) |
|
|
Ionizing Curtain Transvector (24" lg) |
|
|
Power Supply / 2 cable (AC/ 7.0 kV) |
|
|
Power Supply / 4 cable (AC / 7.0 kV) |
| |
| Click
on Model Number for more details and/or sizing software to assist
in proper Ionizing Curtain/Knife Amplifier selection. |
|
| Model
# 981-6
Ionizing Curtain Transvector (6" lg) |
 |

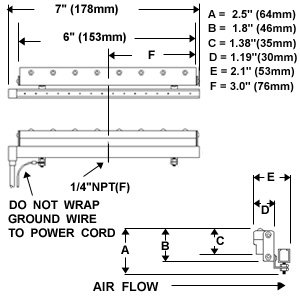

Model
# 981-6
Ionizing Curtain Transvector (6" lg)
requires AC power
supply
1/4" NPT(F)/(1) inlet
Required products:
D167RY OR F167
Recommended products: 701S-36A,
|
 |
|
|
Model
# 981-12
Ionizing Curtain Transvector (12" lg) |
 |

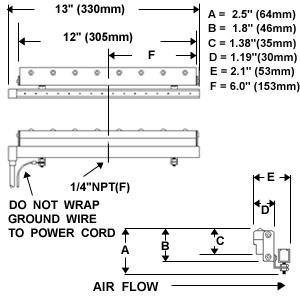

Model # 981-12
Ionizing Curtain Transvector (12" lg)
requires AC power
supply
1/4" NPT(F)/(1) inlet
Required products:
D167RY OR F167
Recommended products: 701S-36A,
|
 |
|
|
| Model
# 981-18
Ionizing Curtain Transvector (18" lg) |
 |
Model # 981-18
Ionizing Curtain Transvector (18" lg)
requires AC power
supply
1/4"NPT(F)/(2) inlets
Required products:
D167RY OR F167
Recommended products: 701S-40A,
|
 |
|
|
| Model
# 981-24 Ionizing
Curtain Transvector (24" lg) |
 |

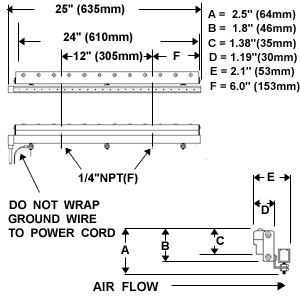

Model # 981-24
Ionizing Curtain Transvector (24" lg)
requires AC power
supply
1/4"NPT(F)/(2) inlets
Required products:
D167RY OR F167
Recommended products: 701S-40A,
|
 |
|
|
| Model
# F167
Power Supply / 2 cable (AC/ 7.0 kV) |
 |

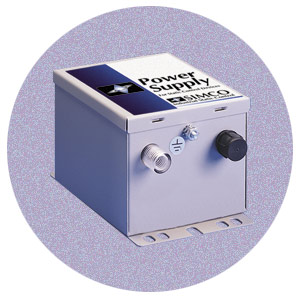

 Model
# F167
Power Supply / 2 cable (AC/ 7.0 kV)
2 cable
[supply (2)
Ionizing Curtain Transvectors]
115V/50-60 Hz (7.0 kV)
Recommended
products: 981-12, 981-18, 981-24, 981-6,
|
|
|
| Model
# D167RY Power
Supply / 4 cable (AC / 7.0 kV) |
 |

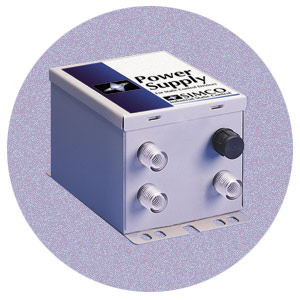

 Model
# D167RY
Power Supply / 4 cable (AC / 7.0 kV)
4 cable
[supply (4) Ionizing Curtain Transvectors]
115V/50-60 Hz
Recommended
products: 981-12, 981-18, 981-24, 981-6,
|
|
|
| |
