Online Industrial Process Equipment   High Quality Products - Long-Term Reliability
ITW Vortec products use innovative compressed air technologies to increase equipment efficiency, improve manufacturing productivity, and eliminate more costly methods for spot and enclosure cooling.
Use filtered compressed air to make cold air (to -40°F) or hot air (to 250°F).

Vortex Tubes (100 BTUH to 6000 BTUH)

A Vortex Tube uses compressed air to produce both cold air and hot air at the same time. A control valve located in the hot exhaust is used to adjust the temperature drop and rise for all Vortex Tubes.

Use filtered compressed air to produce cooling capacities ranging from 100 BTUH to 6000 BTUH without the use of Freon, ammonia or other refrigerants.

  Vortex Tubes are used to:
  • Uses only compressed air-NO FREON USED
  • Maintenance free-no moving parts
  • Exceptionally reliable-compact-lightweight
  • Cycle repeatability within plus/minus one degree
  • Cool machining operations
  • Set solders and adhesives
  • Cool plastic injection molds
  • Dry ink on labels and bottles
  • Dehumidify gas samples
  • Cool plastic and foil bag heat seal operations
  • Cool cutter blades
  • Temperature cycle parts

Click on Model Number or Thumbnail pictures for more details and/or sizing software to assist in proper Vortex Tube selection.

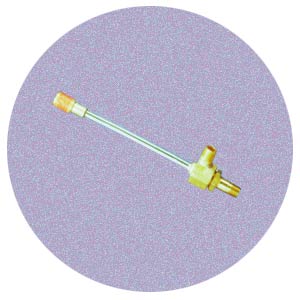

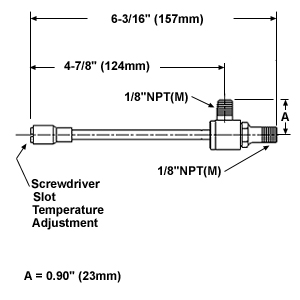

Model # 106-2-H Vortex Tube (100 BTUH)

Model # 106-2-H

Vortex Tube (100 BTUH)

2 SCFM (57 SLPM)/1/8" NPT(M)
100 BTUH (25 kCAL/hr)

Recommended products: 106MC, 208MH, 701S-24A, 701S-48,


Model # 106-4-H Vortex Tube (200 BTUH)

Model # 106-4-H

Vortex Tube (200 BTUH)

4 SCFM (113 SLPM)/1/8"NPT(M)
255 BTUH (64 kCAL/hr)
Available for immediate shipment

Recommended products: 106MC, 208MH, 701S-24A, 701S-48,


Model # 106-8-H Vortex Tube (400 BTUH)
Model #: 106-8-H

Vortex Tube (400 BTUH)

8 SCFM (226 SLPM)/1/8"NPT(M)
400 BTUH (101 k/CAL/hr)

Recommended products: 106MC, 208MH, 701S-24A, 701S-48,

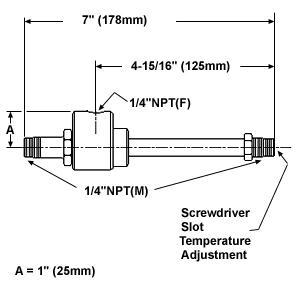

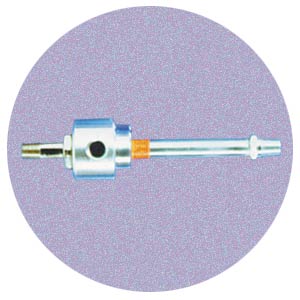

Model # 208-11-H Vortex Tube (640 BTUH)

Model #: 208-11-H
Model #: 208-11-H-SS (Stainless Steel)
Vortex Tube (640 BTUH)

11 SCFM (311 SLPM)/1/4"NPT(F)
640 BTUH (161 kCAL/hr)

Recommended products: 208MC, 208MH, 701S-24A, 701S-48


Model # 208-15-H Vortex Tube (900 BTUH)
Model #: 208-15-H
Model #: 208-15-H-SS (Stainless Steel)
Vortex Tube (900 BTUH)

15 SCFM (425 SLPM)/1/4"NPT(F)
900 BTUH (227 kCAL/hr)

Recommended products: 208MC, 208MH, 701S-24A, 701S-48


Model # 208-25-H Vortex Tube (1500 BTUH)
Model #: 208-25-H
Model #: 208-25-H-SS (Stainless Steel)
Vortex Tube (1500 BTUH)

25 SCFM (708 SLPM)/1/4"NPT(F)
1500 BTUH (378 kCAL/hr)

Recommended products: 208MC, 208MH, 701S-24A, 701S-48,

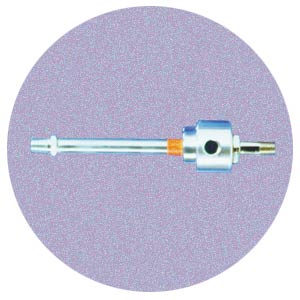

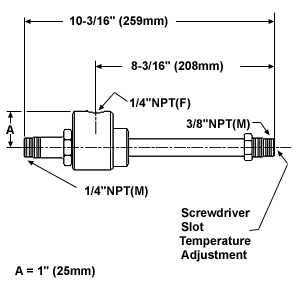

Model # 308-35-H Vortex Tube (2500 BTUH)
Model #: 308-35-H

Vortex Tube (2500 BTUH)

35 SCFM (991 SLPM)/1/4"NPT(F)
2650 BTUH (668 kCAL/hr)

Recommended products: 208MC, 308 MH, 701S-36A, 701S-54,

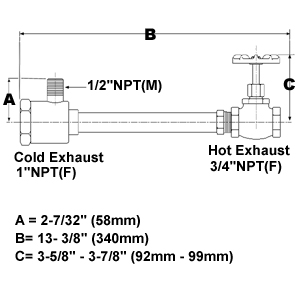

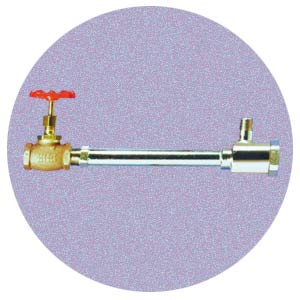

Model # 328-50-H Vortex Tube (3000 BTUH)
Model #: 328-50-H

Vortex Tube (3000 BTUH)

50 SCFM (1415 SLPM)/1/2"NPT(M)
3000 BTUH (756 kCAL/hr)

Recommended products: 328M, 701S-40A, 701S-54


Model # 328-75-H Vortex Tube (4500 BTUH)
Model #: 328-75-H

Vortex Tube (4500 BTUH)

75 SCFM (2123 SLPM)/1/2"NPT(M)
4500 BTUH(1134 kCAL/hr)

Recommended products: 328M, 701S-40A, 701S-54


Model # 328-100-H Vortex Tube (6000 BTUH)
Model #: 328-100-H

Vortex Tube (6000 BTUH)

100 SCFM(2830 SLPM)/1/2"NPT(M)
6000 BTUH(1512 kCAL/hr)

Recommended products: 328M, 701S-40A, 701S-54

Accessories : Ensure clean compressed air and consistent air pressure for optimal Vortex Tube operation.



Download Printable PRODUCT GUIDE in PDF format (3.22 MB)
Sizing And Selection Interactive Excel Worksheet
** You must have Microsoft Excel 97 or 2000 to view worksheet **
If you do not have Excel, fill out and complete this Worksheet.
