RTI Filter Regulator Lubricator Combos
Reading Technologies

Reading Technologies, Inc. - Advanced Air System Technology

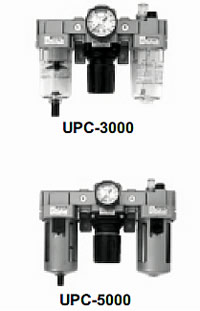

PC Series Filter-Regulator-Lubricator Combos



FRL Combination Units

Datasheet

  • MODULAR DESIGN
  • EASY ASSEMBLY/DISASSEMBLY
  • EASY MAINTENANCE
  • FINE OIL ADJUSTMENT
  • ONE-TOUCH BOWL GUARD (UPC4000 & 5000)
  • REFILL UNDER PRESSURE

Model

UPC-3000 UPC-4000 UPC-5000
Combination Filter UPF-3000 UPF-4000 UPF-5000
Regulator UPR-3000 UPR-4000 UPR-5000
Lubricator UPL-3000 UPL-4000 UPL-5000
Port Size (NPT) 1/4", 3/8" 3/8", 1/2" 3/4", 1"
Max Flow Rate Nℓ/min (scfm) 2000 (70scfm) 4000 (140scfm) 5000 (175scfm)
Supply Pressure Max. 231 PSI (1.5 MPa)
Operating Pressure Max 150 PSI (1034 Kpa)
Regulating Range 7 ~ 125 PSI (48 ~ 850 KPa)
Ambient & Media Temp 40 ~ 140°F (5 ~ 60°C)
Filtration Standard: 10 µm
Recommended Oil Turbine Oil ISO VG32
Bowl Material Polycarbonate
Construction/Regulator Relieving type
-- Conditions Supply PRESSURE-100 PSI (7kgf/cm²), Setting pressure-70 PSI (5kgf/cm²)
