Technologies, Inc. Advanced Air System Technology ELIMINEX |
 |
|
||||||||||||
|
|
|||||||||||||
 |
Eliminex
- Specifications Type of contamination: Water and dirt Flow ranges: 60 SCFM - 5,500 SCFM Filter capacity: 3.0 micron and larger Thread types available: NPT, BSPT, BSPP, SAE, RSFO (FLANGE) Bowl types available: Aluminum, Polycarbonate, Epoxy Coated Steel |
||||||||||||
 |
|||||||||||||
| Part # | Filter Capacity | Max. Temp/Pressure* | Features | Dimensions (in.) | |||
| A | B | C | D | ||||
|
1P-060-P04-Fi |
60scfm,
3 micron |
125F / 150 PSIG |
Poly
bowl, Float drain, Filter change indicator, Washable stainless steel filter element, 1/2" ports |
3.8 | 11.5 | 3.8 | 2.0 |
|
1P-120-M06-Fi |
120scfm,
3 micron |
125F / 150 PSIG |
Metal
bowl, Float drain, Filter change indicator, Washable stainless steel filter element, 3/4" ports |
4.6 | 15.0 | 4.6 | 2.4 |
|
1P-175-M08-Fi |
175scfm,
3 micron |
125F / 150 PSIG |
Metal
bowl, Float drain, Filter change indicator, Washable stainless steel filter element, 1" ports |
4.6 | 16.5 | 4.6 | 2.4 |
|
1M-300-M16-Fi |
300scfm,
3 micron |
125F / 150 PSIG |
Metal
bowl, Float drain, Filter change indicator, Washable stainless steel filter element, 2" ports |
7.8 | 27.0 | 7.8 | 3.9 |
|
1M-400-M16-F |
400scfm,
3 micron |
175F / 200 PSIG |
Metal
bowl, Float drain, Washable stainless steel filter element, 2" ports |
8.5 | 33.0 | 8.5 | 4.2 |
| 1M-1200-M24-F | 1200scfm,
3 micron <1.0 PSID @ rated flow |
175F / 200 PSIG | Metal
bowl, Float drain, Washable stainless steel filter element, 3" ports |
8.0 | 45.6 | 8.0 | 4.0 |
|

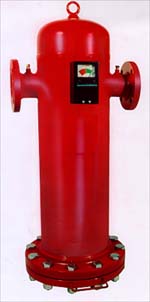

1M-5500-MFF-X |
5500scfm,
3 micron |
125F / 150 PSIG |
Epoxy
coated steel bowl, Float drain, Washable stainless steel filter element, 6" Raised face 150# flanges |
23.37 | 58.0 | 17.85 | |
| Ordering Information | |
|
P/N |
Description |
 |
Select Part Number to order online |
| RE1P-060-P02-Fi | Reading
1P-060-P02-Fi Eliminex 60 scfm 1/4" with Auto Drain (Polycarbonate Bowl Model w/DP Indicator |
| RE1P-060-P03-Fi | Reading
1P-060-P03-Fi Eliminex 60 scfm 3/8" with Auto Drain (Polycarbonate Bowl Model w/DP Indicator) |
| RE1P-060-P04-Fi | Reading
1P-060-P04-Fi Eliminex 120 scfm 1/2" with Auto Drain (Polycarbonate Bowl Model w/DP Indicator)) |
| RE1P-120-P06-Fi | Reading
1P-120-P06-Fi Eliminex 120 scfm 3/4" with Auto Drain (Polycarbonate Bowl Model w/DP Indicator) |
| RE1P-120-P08-Fi | Reading
1P-120-P08-Fi Eliminex 120 scfm 1" with Auto Drain (Polycarbonate Bowl Model w/DP Indicator) |
| RE1P-175-P04-Fi | Reading
1P-175-P04-Fi Eliminex 175 scfm 1/2" with Auto Drain (Polycarbonate Bowl Model w/DP Indicato |
| RE1P-175-P06-Fi | Reading
1P-175-P06-Fi Eliminex 175 scfm 3/4" with Auto Drain (Polycarbonate Bowl Model w/DP Indicator) |
| RE1P-175-P08-Fi | Reading
1P-175-P08-Fi Eliminex 175 scfm 1" with Auto Drain (Polycarbonate Bowl Model w/DP Indicator) |
| RE1P-060-P02-F | Reading
1P-060-P02-F Eliminex 60 scfm 1/4" with Auto Drain (Polycarbonate Bowl Model) |
| RE1P-060-P03-F | Reading
1P-060-P03-F Eliminex 60 scfm 3/8" with Auto Drain (Polycarbonate Bowl Model) |
| RE1P-060-P04-F | Reading
1P-060-P04-F Eliminex 60 scfm 1/2" with Auto Drain (Polycarbonate Bowl Model) |
| RE1P-120-P04-F | Reading
1P-120-P04-F Eliminex 120 scfm 1/2" with Auto Drain (Polycarbonate Bowl Model) |
| RE1P-120-P06-F | Reading
1P-120-P06-F Eliminex 120 scfm 3/4" with Auto Drain (Polycarbonate Bowl Model) |
| RE1P-120-P08-F | Reading
1P-120-P08-F Eliminex 120 scfm 1" with Auto Drain (Polycarbonate Bowl Model) |
| RE1P-175-P04-F | Reading
1P-175-P04-F Eliminex 175 scfm 1/2" with Auto Drain (Polycarbonate Bowl Model) |
| RE1P-175-P06-F | Reading
1P-175-P06-F Eliminex 175 scfm 3/4" with Auto Drain (Polycarbonate Bowl Model) |
| RE1P-175-P08-F | Reading
1P-175-P08-F Eliminex 175 scfm 1" with Auto Drain (Polycarbonate Bowl Model) |
| RE1P-060-P02-Pi | Reading
1P-060-P02-Pi Eliminex 60 scfm 1/4" with Manual Drain (Polycarbonate Bowl Model w/DP Indicat |
| RE1P-060-P03-Pi | Reading
1P-060-P03-Pi Eliminex 60 scfm 3/8" with Manual Drain (Polycarbonate Bowl Model w/DP Indicat |
| RE1P-060-P04-Pi | Reading
1P-060-P04-Pi Eliminex 60 scfm 1/2" with Manual Drain (Polycarbonate Bowl Model w/DP Indicat |
| RE1P-120-P04-Pi | Reading
1P-120-P04-Pi Eliminex 120 scfm 1/2" with Manual Drain (Polycarbonate Bowl Model w/DP Indicator) |
| RE1P-120-P06-Pi | Reading
1P-120-P06-Pi Eliminex 120 scfm 3/4" with Manual Drain (Polycarbonate Bowl Model w/DP Indicator) |
| RE1P-120-P08-Pi | Reading
1P-120-P08-Pi Eliminex 120 scfm 1" with Manual Drain (Polycarbonate Bowl Model w/DP Indicator) |
| RE1P-175-P04-Pi | Reading
1P-175-P04-Pi Eliminex 175 scfm 1/2" with Manual Drain (Polycarbonate Bowl Model w/DP Indicator) |
| RE1P-175-P06-Pi | Reading
1P-175-P06-Pi Eliminex 175 scfm 3/4" with Manual Drain (Polycarbonate Bowl Model w/DP Indicator) |
| RE1P-175-P08-Pi | Reading
1P-175-P08-Pi Eliminex 175 scfm 1" with Manual Drain (Polycarbonate Bowl Model w/DP Indicator) |
| RE1P-060-P02-P | Reading
1P-060-P02-P Eliminex 60 scfm 1/4" with Manual Drain (Polycarbonate Bowl Model) |
| RE1P-060-P03-P | Reading
1P-060-P03-P Eliminex 60 scfm 3/8" with Manual Drain (Polycarbonate Bowl Model) |
| RE1P-060-P04-P | Reading
1P-060-P04-P Eliminex 60 scfm 1/2" with Manual Drain (Polycarbonate Bowl Model) |
| RE1P-120-P04-P | Reading
1P-120-P04-P Eliminex 120 scfm 1/2" with Manual Drain (Polycarbonate Bowl Model) |
| RE1P-120-P06-P | Reading
1P-120-P06-P Eliminex 120 scfm 3/4" with Manual Drain (Polycarbonate Bowl Model) |
| RE1P-120-P08-P | Reading
1P-120-P08-P Eliminex 120 scfm 1" with Manual Drain (Polycarbonate Bowl Model) |
| RE1P-175-P04-P | Reading
1P-175-P04-P Eliminex 175 scfm 1/2" with Manual Drain (Polycarbonate Bowl Model) |
| RE1P-175-P06-P | Reading
1P-175-P06-P Eliminex 175 scfm 3/4" with Manual Drain (Polycarbonate Bowl Model) |
| RE1P-175-P08-P | Reading
1P-175-P08-P Eliminex 175 scfm 1" with Manual Drain (Polycarbonate Bowl Model) |
| RE1P-060-M02-Fi | Reading
1P-060-M02-Fi Eliminex 60 scfm 1/4" with Auto Drain (Metal Bowl Model w/DP Inidicator) |
| RE1P-060-M03-Fi | Reading
1P-060-M03-Fi Eliminex 60 scfm 3/8" with Auto Drain (Metal Bowl Model w/DP Inidicator) |
| RE1P-060-M04-Fi | Reading
1P-060-M04-Fi Eliminex 60 scfm 1/2" with Auto Drain (Metal Bowl Model w/DP Inidicator) |
| RE1P-120-M04-Fi | Reading
1P-120-M04-Fi Eliminex 120 scfm 1/2" with Auto Drain (Metal Bowl Model w/DP Inidicator) |
| RE1P-120-M06-Fi | Reading
1P-120-M06-Fi Eliminex 120 scfm 3/4" with Auto Drain (Metal Bowl Model w/DP Inidicator) |
| RE1P-120-M08-Fi | Reading
1P-120-M08-Fi Eliminex 120 scfm 1" with Auto Drain (Metal Bowl Model w/DP Inidicator) |
| RE1P-175-M04-Fi | Reading
1P-175-M04-Fi Eliminex 175 scfm 1/2" with Auto Drain (Metal Bowl Model w/DP Inidicator) |
| RE1P-175-M06-Fi | Reading
1P-175-M06-Fi Eliminex 175 scfm 3/4" with Auto Drain (Metal Bowl Model w/DP Inidicator) |
| RE1P-175-M08-Fi | Reading
1P-175-M08-Fi Eliminex 175 scfm 1" with Auto Drain (Metal Bowl Model w/DP Inidicator) |
| RE1P-060-M02-F | Reading
1P-060-M02-F Eliminex 60 scfm 1/4" with Auto Drain (Metal Bowl Model) |
| RE1P-060-M03-F | Reading
1P-060-M03-F Eliminex 60 scfm 3/8" with Auto Drain (Metal Bowl Model) |
| RE1P-060-M04-F | Reading
1P-060-M04-F Eliminex 60 scfm 1/2" with Auto Drain (Metal Bowl Model) |
| RE1P-120-M04-F | Reading
1P-120-M04-F Eliminex 120 scfm 1/2" with Auto Drain (Metal Bowl Model) |
| RE1P-120-M06-F | Reading
1P-120-M06-F Eliminex 120 scfm 3/4" with Auto Drain (Metal Bowl Model) |
| RE1P-120-M08-F | Reading
1P-120-M08-F Eliminex 120 scfm 1" with Auto Drain (Metal Bowl Model) |
| RE1P-175-M06-F | Reading
1P-175-M06-F Eliminex 175 scfm 3/4" with Auto Drain (Metal Bowl Model) |
| RE1P-175-M08-F | Reading
1P-175-M08-F Eliminex 175 scfm 1" with Auto Drain (Metal Bowl Model) |
| RE1P-060-M02-Pi | Reading
1P-060-M02-Pi Eliminex 60 scfm 1/4" with Manual Drain (Metal Bowl Model w/DP Indicator) |
| RE1P-060-M03-Pi | Reading
1P-060-M03-Pi Eliminex 60 scfm 3/8" with Manual Drain (Metal Bowl Model w/DP Indicator) |
| RE1P-060-M04-Pi | Reading
1P-060-M04-Pi Eliminex 60 scfm 1/2" with Manual Drain (Metal Bowl Model w/DP Indicator) |
| RE1P-120-M04-Pi | Reading
1P-120-M04-Pi Eliminex 120 scfm 1/2" with Manual Drain (Metal Bowl Model w/DP Indicator) |
| RE1P-120-M06-Pi | Reading
1P-120-M06-Pi Eliminex 120 scfm 3/4" with Manual Drain (Metal Bowl Model w/DP Indicator) |
| RE1P-120-M08-Pi | Reading
1P-120-M08-Pi Eliminex 120 scfm 1" with Manual Drain (Metal Bowl Model w/DP Indicator) |
| RE1P-175-M04-Pi | Reading
1P-175-M04-Pi Eliminex 175 scfm 1/2" with Manual Drain (Metal Bowl Model w/DP Indicator) |
| RE1P-175-M06-Pi | Reading
1P-175-M06-Pi Eliminex 175 scfm 3/4" with Manual Drain (Metal Bowl Model w/DP Indicator) |
| RE1P-175-M08-Pi | Reading
1P-175-M08-Pi Eliminex 175 scfm 1" with Manual Drain (Metal Bowl Model w/DP Indicator) |
| RE1P-060-M02-P | Reading
1P-060-M02-P Eliminex 60 scfm 1/4" with Manual Drain (Metal Bowl Model) |
| RE1P-060-M03-P | Reading
1P-060-M03-P Eliminex 60 scfm 3/8" with Manual Drain (Metal Bowl Model) |
| RE1P-060-M04-P | Reading
1P-060-M04-P Eliminex 60 scfm 1/2" with Manual Drain (Metal Bowl Model) |
| RE1P-120-M04-P | Reading
1P-120-M04-P Eliminex 120 scfm 1/2" with Manual Drain (Metal Bowl Model) |
| RE1P-120-M06-P | Reading
1P-120-M06-P Eliminex 120 scfm 3/4" with Manual Drain (Metal Bowl Model) |
| RE1P-120-M08-P | Reading
1P-120-M08-P Eliminex 120 scfm 1" with Manual Drain (Metal Bowl Model) |
| RE1P-175-M04-P | Reading
1P-120-M08-P Eliminex 120 scfm 1" with Manual Drain (Metal Bowl Model) |
| RE1P-175-M06-P | Reading
1P-175-M06-P Eliminex 175 scfm 3/4" with Manual Drain (Metal Bowl Model) |
| RE1P-175-M08-P | Reading
1P-175-M08-P Eliminex 175 scfm 1" with Manual Drain (Metal Bowl Model) |
|
|
|
|
|
