Level Gauge Specification Sheet |
|
|
 General
Specifications |
|
| Material: | All wetted parts and external metal parts are stainless steel. Indicator tube is glass or, optionally, polycarbonate. Many other optional materials are available. |
| Float Chamber: | 2-1/2 inch pipe with RF slip-on/blind drain flange. |
| Scale: | Feet and inches are standard with 1/2 inch scale divisions; resolution is approximately 1/4 inch. Custom scales for elevation, volumetric and other calibrations are available. |
| Indicator: | 7/8 inch diameter by 1-1/4 inch long. Brightly colored for long-distance viewing. Optional Flipper/Roller is available. |
| Pressure: | Up to 4000 psig. |
| Temperature: | From -200 to 1100 Deg F continuous. |
|
DIMENSIONS (in inches) |
||||

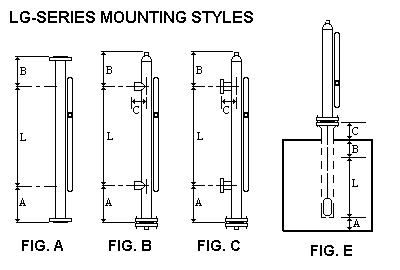

| Dimension | A | B | C | L (measured length) |
| Fig. A | 8 | 6 | -- | Specify |
| Fig. B | 8 | 6 | 4 | Specify |
| Fig. C | 8 | 6 | 4 | Specify |
| Fig. E | 4 | Specify | 4 | Specify |
| PROCESS CONNECTIONS |
| Fig. A | 2-1/2 inch RF flanges. |
| Fig. B | 3000#
threaded coupling; available in 1/2 in., 3/4 in., 1 in. 1-1/2 in., and 2 in. FNPT. |
| Fig. C | 1/2 inch and up lap-joint flanges (other flange styles are available). |
| Fig. E | 3 inch mounting flange. |
| NOTES: | 1)
All flange bolts straddle center lines unless otherwise specified. 2) 1/2 inch NPT top vent and bottom drain plugs are standard. |
| Specifications are subject to change without notice. |
|
|
|
|
