P311 Handheld Laser Particle Counter
Model P311 Laser Particle Counter

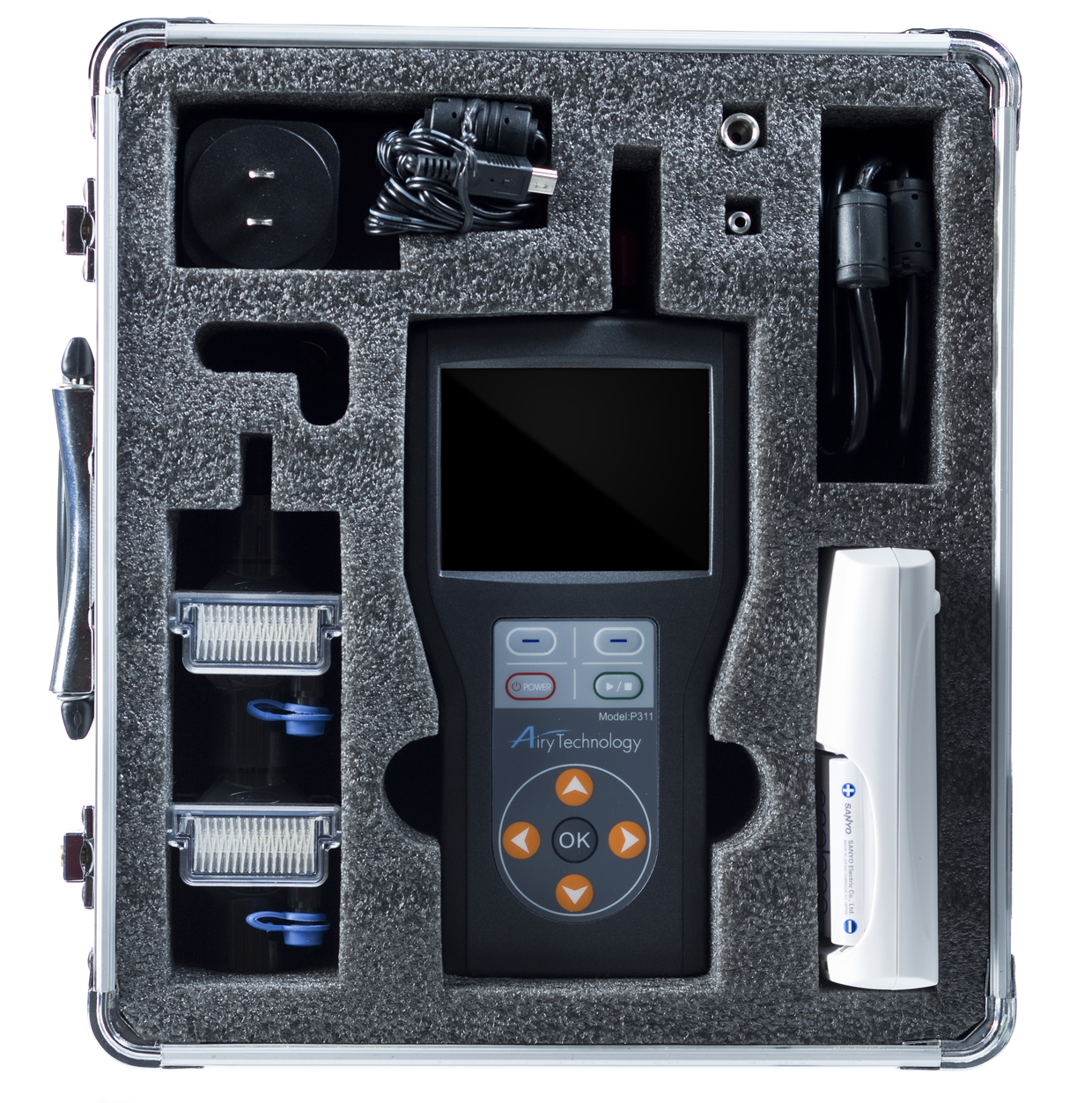

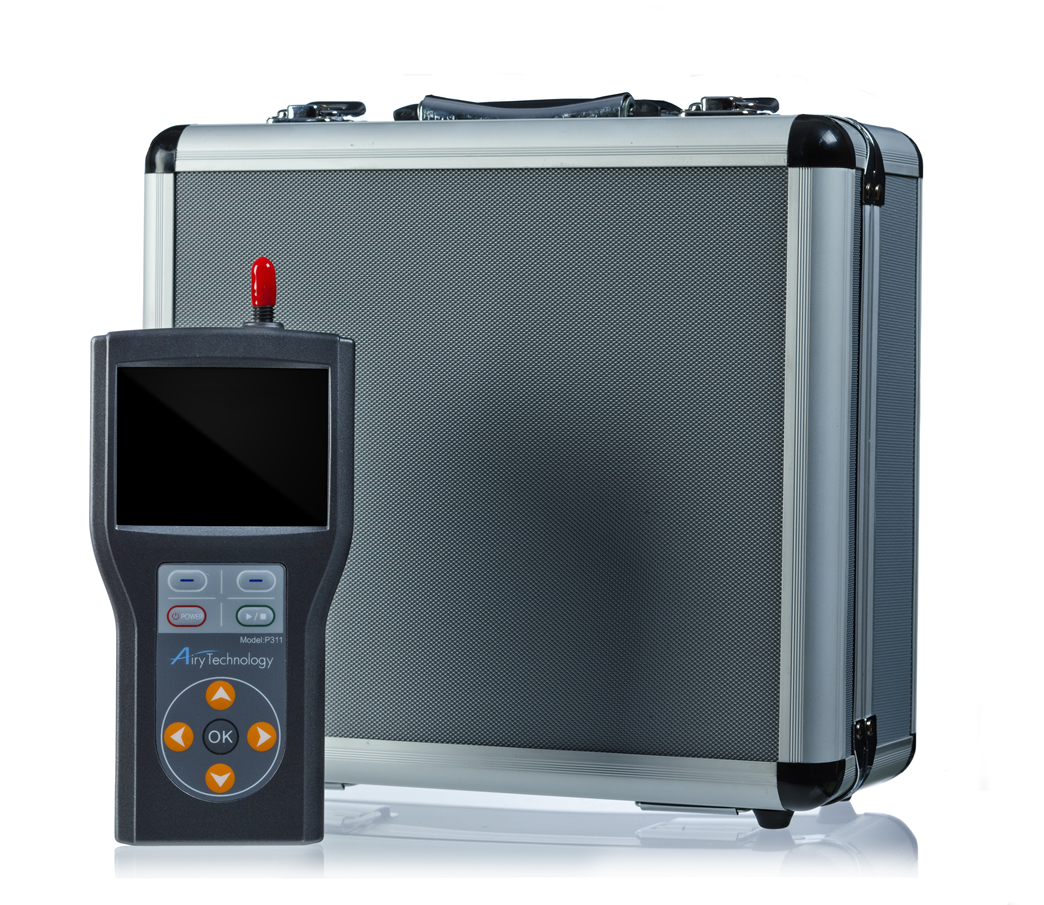

P311 with Case P311 inside Case


Airy Technology P311’ s large color display shows cumulative and differential particle counts of 3 particle sizes simultaneously. The middle particle range can easily be changed by a user. P311’s maximum concentration of 4,000,000 particles/ft3 and up to 8,000 data set record capabilities is the highest in the market. Data can be checked on the unit display and/or easily downloaded to your PC via USB cable and saved as a CVS file which is transferable to Excel.
The P311 is accurate, dependable, user friendly, easy operation, compact and light weight.

Features:

Applications:
  • Selectable Range: 0.3 µm and 5.0 µm fixed 0.5, 1.0, 2.0, or 2.5 µm selectable middle channel
  • Superior Maximum Concentration; 4,000,000p/cf
  • Large LCD Color Display
  • Cumulative and Differential Count
  • Data Download Software
  • USB for Data Download and Power
  • Great Energy Conservation
  • ISO Cleanroom Certification (ISO Class 4>)
  • Point Measurements at Cleanrooms
  • Particle Source Investigation
  • Filter Testing
  • Indoor Air Quality Investigations
  • Quality Control

Included Accessories:

Optional Accessories:

  • AC Adaptor, Isokinetic Inlet, USB Cable, Zero Filter, Software
  • 4 x AA Batteries with Charger, Calibration Certificate, Quick Guide
  • Operating Manual on CD
  • Aluminum Carrying Case
  • Tripod Stand


Front View Side View Rear View

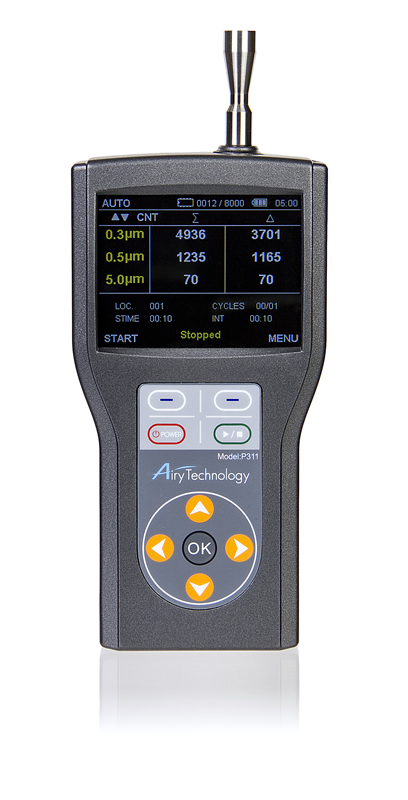

Front View

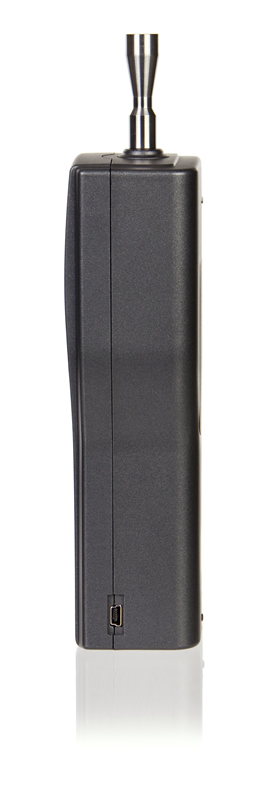

Side View

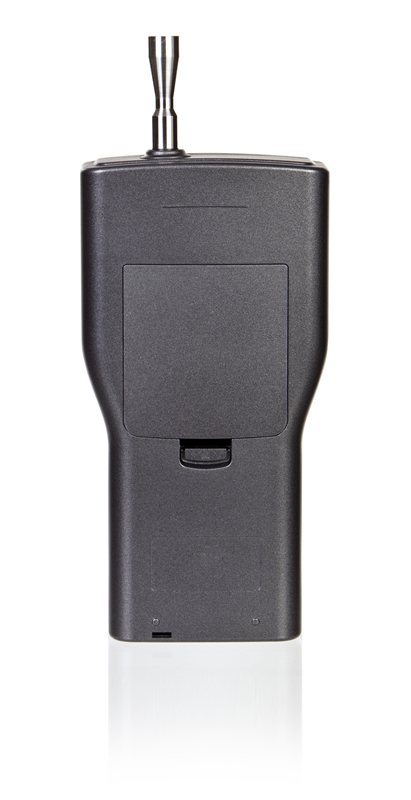

Rear View

Large Display Software Screen
Large LCD Display
Software Screen

Adobe PDF File
Technical Brochure

Watch Video

Specifications:

  • Size Range: 0.3-5.0 µm
  • Channel Sizes: 0.3 µm and 5.0 µm fixed; 0.5, 1.0, 2.0, or 2.5 µm selectable middle channel
  • Counting Efficiency: 50% at 0.3 µm; 100% for particles > 0.45 µm (per JIS)
  • Concentration Limits: 4,000,000 particles / ft3 at 5% coincidence loss
  • Light Source: Laser diode
  • Zero Count Level: <1 count / 5 minutes Meets JIS B9921
  • Flow Rate: 0.1 CFM (2.83 LPM)
  • Calibration: NIST traceable / certified
  • Sample Probe/Tubing: Isokinetic sampling probe, Probe for tubing
  • Sampling Modes: Manual, Automatic, ISO Class 4>
  • Sampling Time: 1 second to 99 minutes 59 seconds (Configurable)
  • Sampling Frequency: 1 to 2000 cycles or continuous(Configurable)
  • Sample Output: Internal HEPA filter
  • Vacuum Source: Internal pump
  • Communication Mode: USB
  • Data Storage: 8000 sample records
  • Display: 3.5-inch 320 x 240 Color LCD
  • Power: DC 5V 0.7A (Mini USB TYPE-B)
  • Battery: 4 x AA
  • Battery Life: Up to 4.5 hours of continuous use (LCD Backlight low, 2400mAh Ni-MH Battery)
  • Dimensions (L x W x H): 178 x 90 x 47mm (7" x 3.54" x 1.85") without isokinetic inlet
  • Weight: 480g (without battery)
  • Standards: JISB9921, ISO 21501-4
  • Operating Conditions: 5° to 35°C, 20% to 95%RH non-condensing
  • Storage Conditions: -20° to 50°C Up to 98%RH non-condensing
  • Warranty: 1 year limited warranty
