Model
MC6
Multi-Cal Benchtop Calibrator
Interchangeable Ranges, ± 0.05% Accuracy, Datalogging Capability, NIST Traceable

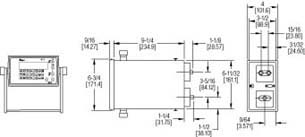

Dimensional Enlargement


Model MC6 Multi-Cal Benchtop Calibrator performs a wide variety of simple and complex pressure based measurement, test, and calibration operations. Modular sensor design allows user to select pressure measurement range for application flexibility. Calibrator can accommodate up to two interchangeable pressure modules (sold separately below) in any combination of range or accuracy.

Simultaneously display two separate measurements on the two line, alphanumeric display. Readings can be displayed in a choice of twelve preprogrammed engineering units or any single user-defined unit. Calibrator features min/max recall, hi/lo alarm, percentage of full scale pressure readings, mA/voltage measurement, leak rate and pressure decay measurement, switch testing capabilities, including trip point and dead band, and velocity/volume flow rates.

Quickly document calibration procedures using the data logging feature which stores up to 384 sets of pressure and time/date stamped measurements. The automatic % error calculation simplifies transmitter calibration. Easily upload stored data to an IBM compatible computer via the RS232 two-way communications port. Calibrators and modules include certification to NIST traceability--ideal as a secondary standard for calibrating pressure equipment.

Multi-Cal Pressure Calibrator includes utility software, test leads, protection module, adjustment handle, AC adapter, and instruction manual.

Multi-Cal Pressure Modules are interchangeable and available in a wide selection of pressure ranges and accuracies. Benchtop calibrator accepts up to two pressure modules. Modules include NIST calibration certification.



PHYSICAL DATA
ACCURACY: Differential Pressure Modules: ± 0.06% FS,
Gauge Pressure Modules: ± 0.05% FS,
Voltage Input: ± 0.025% FS @ 0/10 VDC, ± 0.10% FS @ 0/30 VDC,
Current Input: ± 0.03% FS @ 0/20 mA, ± 0.05% FS @ 0/50 mA.

REPEATABILITY: Ranges < 0/2 psi: ± 0.05% of span,
Ranges > 0/5 psi: ± 0.02% of span.

SENSITIVITY: ± 0.002% of span with dampening 1 part in 50,000 (max).

OVERPRESSURE: Differential Pressure Modules: 50 psi positive direction,
15 psi negative direction, Gauge Pressure Modules: 2 x range (0/5 psi to 0/1000 psi).

MEDIA: Clean, dry, nonconductive, noncorrosive gases.

OUTPUT: RS232 serial interface, 9-pin.

BAUD RATE: 300, 1200, 2400, or 9600, selectable.

ALARM OUTPUT: SPST from C 110 VDC, 120 VDC (max), 1 A (max), 30 W,
62.5 VA (resistive).

DAMPENING: (Measurement averaging) programmable from 0 to 16 consecutive readings.

TEMPERATURE COMPENSATION: 20 to 120°F (-7 to 49°C).

TEMPERATURE ERROR: Maximum of ± 0.004% of span per °F over compensated range
for zero and span.

TEMPERATURE EFFECT ELECTRICAL MEASUREMENT: ± 0.001% of span per °F
over compensated range.

AMBIENT OPERATING TEMPERATURE: 32 to 120°F (0 to 49°C).

STORAGE TEMPERATURE: -4 to 158°F (-20 to 70°C).

POWER SUPPLY: 110 VAC/60 Hz adapter, 500 mA.

ENGINEERING UNITS: inH2O, psi, inHg, kPa, mbar, bar, cmH2O,
mmHg, ftSW, MPa, mmH2O, kgcm2 and user-defined.

DISPLAY: Alphanumeric LCD, 0.37" (9.5 mm) height per line, 2 lines, 16 characters/line.

DISPLAY UPDATE: 100 msec.

COMPUTER REQUIREMENTS: IBM compatible 386 or above and
WindowsTM 3.1 or later with 2mB RAM and 2mB hard drive disk space, one serial port.

PROCESS CONNECTION: 1/8" NPT(F).

ELECTRICAL CONNECTIONS: Standard banana jacks.

HOUSING: ABS plastic.

WEIGHT: Calibrator: 3.0 lb (1.4 kg), Pressure Module: 0.5 lb (0.3 kg).




STOCKED MODELS
Model
Number
Range
MC1000 0.25" H2O Differential Pressure, ± 0.07
MC1001 0.50" H2O Differential Pressure, ± 0.07
MC1004 5.00" H2O Differential Pressure, ± 0.06
MC1006 25" H2O Differential Pressure, ± 0.06
MC2010 5.0 psig Gauge Pressure, ± 0.05
MC2012 15.0 psig Gauge Pressure, ± 0.05
MC2016 100.0 psig Gauge Pressure, ± 0.05
APPLICATIONS:
Pressure measurement for clean room control, filter performance monitoring, HVAC testing and setup, draft measurement, airflow measurement control, differential pressure measurement in laminar flowhoods, paint booths, industrial ovens and fume hoods. Use as a secondary standard for calibrating pressure equipment.
