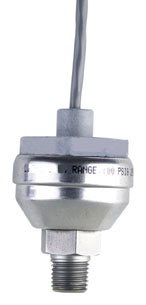

| The low cost Series 673
Pressure Transmitter is a fixed range transmitter designed for
harsh environments and suitable for high shock and vibration
applications. Constructed for stainless steel, the Series 673 provides
a 4 to 20 mA output signal with 0.25% accuracy. Use the Series 673 in
industrial OEM equipment, hydraulic systems, HVAC equipment,
industrial engines and compressor control. |
| PHYSICAL
DATA GENERAL  Media Compatibility: Liquid, gas, or vapor. Accuracy: ±0.25% FS (RSS), (includes non-linearity, hysteresis, and non-repeatability). Maximum Overpressure: 2 x maximum range. Output: 4-20mA, 2-wire. Supply Voltage:9-30 VDC. Loop Resistence: 0 to 800 Ohms Response Time: Less than 60msec. Stability: 0.5% FS/year. Shock: 200g. Vibration: 20 g. Operating Temperature Range: -40 to 260°F (-40 to 125°C). Storage Temperature Range: -40 to 260°F (-40 to 125°C). Compensated Temperature Range: 4 to 212°F (-20 to 100°C). Thermal Errors: Zero: ±2.0% FS/100°F (100°C); Span: ±1.5% FS/100°F (100°C). Zero and Span Adjustment: Fixed. Wetted Parts: 17-4 PH Stainless Steel. Enclosure: Stainless Steel and Valox. Electrical Connections: 2 ft (61 cm) multiconductor cable. Conduit Connection: 1/4" -18 (22.3 mm) knockout.. Weight: 2.3 oz (65 g). |
||||||||||||||||||||||
