MOLDED NYLON RAPID SHUT OFF TUBING CONNECTORS |
 |

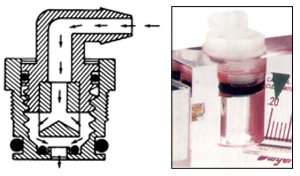

Fig. 5-3. Exclusive Dwyer leak-proof,
corrosion-proof, virtually unbreakable molded nylon connector requires
just one counter clockwise turn to open, one clockwise turn to close.
Rotating connector seats on O-ring for absolute closure and is O-ring
sealed at top. Connector body is also O-ring sealed and is easily
removed for cleaning or adding fluid.
|
| MAGNECLIPS
FOR SPLIT SECOND MOUNTING ON ANY STEEL SURFACE |
 |

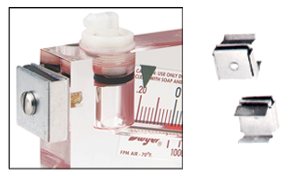

Fig. 5-4. Dwyer mounting magnets are attached
to all Dwyer solid plastic inclined portable gages (left, above) and
furnished as clips that can be attached to all Dwyer solid plastic
vertical portable gages (right, above). Just touch the magnets to any
vertical steel surface; gage will "stay put" until it is
forcibly detached.
|
|
HIGH
DENSITY POLYETHYLENE FOAM LINED CARRYING CASES |
 |

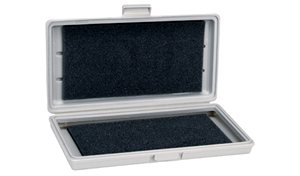

Fig. 5-5. Most Dwyer portable gages are
furnished with carrying cases of high density polyethylene. Models 104-3
& 104-10 have steel cases. For protection of the gage and
accessories, both plastic and steel cases are lined with resilient
polyurethane plastic foam. Nos. 170, 171 & 172 include plastic
pouch.
|
|
NO. 400 AIR VELOCITY METER KIT |
|
Dual scale inclined-vertical manometer reads in feet per minute from 500 FPM and inches of water with 0.01" W.C. minor divisions. Furnished as a complete kit. |
| NO. 102-AV and No. 115-AV AIR VELOCITY KITS | |
|
Complete kits include solid plastic gages No. 102 or No. 115 described above with dual scales in feet per minute and inches of water and all accessories necessary for measurement of air velocity. |
| SERIES VT - 170 AIR VOLUME GAGE KITS | |
|
Complete kits for use in determining air volume by reading differential pressure across air conditions coils use gages. No. VT-170, No. VT-171 and No. VT-172 described above. |
