Ogden Manufacturing - Electric Heaters and Controls MINI-TUBULAR HEATERS
With the capability to be formed into many shapes, the Mini-Tubular is adaptable to a variety of applications. Swaged or drawn Alloy cable, compacted magnesium oxide and a helical or straight resistance element are the assembled components of the Mini-Tubular. Small diameters and cross-sections allow a quick response, providing heat in tight spaces where most heaters cannot be installed. The typically spiral design allows heat to be applied to the full circumference of the part. The small diameter Mini-Tubular Band Heaters at 3/4" and 7/8" inside diameter are exact OEM replacements. Many are available from stock. Also available is a square profile design that increases surface contact for improved conductive heat transfer. An internal thermocouple in some sizes allows for precise temperature monitoring and control. Mini-Tubular Heaters can also be supplied straight for field bending.
  • 360° heated area
  • Readily conforms to surface
  • Fast response and quick heat transfer
  • Helical coil design for superior performance
  • Shock, vibration, contamination
    and corrosion resistant
  • Available with thermocouple
    grounded at end
  • Sheath diameters: .040", .062",
    .093", .125" and .188"

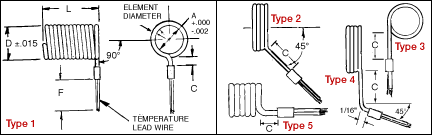

Above items standard with built-in thermocouple and 36" cable, "C" = 1" in straight position (Type 5)
Catalog
Number
I.D. Length
(L)
Watts Volts
MTC826 7/8" 2-5/8" 780 240
MTC831 7/8" 3-1/8" 650 240
MTC836 7/8" 3-5/8" 630 240
MTC842X 7/8" 4-5/16" 760 240
MTC852X 7/8" 5-5/16" 950 240
MTC861X 7/8" 6-3/16" 1120 240
MTC872X 7/8" 7-5/16" 1200 240
MTC882X 7/8" 8-15/16" 1260 240
MTC520 1/2" 2" 340 120
MTC525 1/2" 2-1/2" 325 120
MTC530 1/2" 3" 350 120
MTC535 1/2" 3-1/2" 400 120
MTC545 1/2" 4-1/2" 450 120
MTC555 1/2" 5-1/2" 550 120
MTC565 1/2" 6-1/2" 650 120
Above items standard with built-in thermocouple and 48" armor cable, "C" = 1" at 45° (Type 2).
Catalog
Number
DIA.
(D)
Length
(L)
Watts Volts
MTC546 1/2" 4-5/8" 300 120
MTC546 1/2" 4-5/8" 300 240

TERMINATIONS

Mini-Tubular Heaters are available with standard high temperature leads (450°F/250°C), teflon leads, flexible stainless steel braided lead protection or with stainless steel armor cable.




MINI-TUBULAR BAND HEATERS

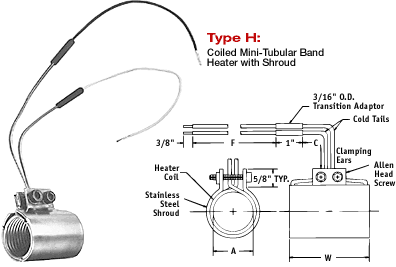

Mini-Tubular with Shroud
Catalog
Number
Dia.
(A)
Width
(W)
Watts Volts
MTB7E10 3/4" 1" 165 120
MTB7E12 3/4" 1-1/4" 125,250,275,300 120,240
MTB8E12 7/8" 1-1/4" 250,300 120,240
MTB10E10 1" 1" 300 120,240
MTB10E30 1" 3" 450 240
MTB12E12 1-1/4" 1-1/4" 350 120,240
MTB15E15 1-1/2" 1-1/2" 225,275,375 120,240
MTB15E25 1-1/2" 2-1/2" 425,650 240
MTB15E30 1-1/2" 3" 425,650 240


Operating Characteristics
 Watts/Sq. Inch 10 20 30 40 50 60 70 80 90 100
 Surface Temp. In °F 550 810 1000 1130 1260 1380 1500 1525 1550 1575
Measured in still air at 70°F ambient, in straight length on 120 volts.


Mini-Tubular Specifications:
Standard Diameters:
.040"; .062"; .093"; .125"; .188"

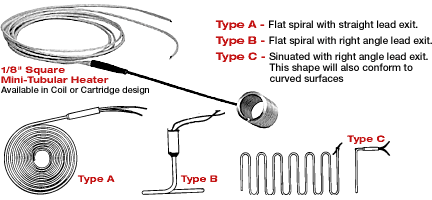

Square Profile: .050" minimum to .160" maximum, Typically 18"
Resistance Tolerance: ±10%; ±5% on Type H @ 34" and 78" diameter
  Ordering Information:
Formation or straight length­or provide drawing
Watts and Volts
Straight wound or special wound coil­Type D or Type E
Inside or Outside Diameter­"A" or "D" dimension
Length or width­"L" or "W"
Cold tail dimension­"C"
Lead Type and length "F"­Standard high temperature fiberglass, Teflon or Stainless steel braid
Thermocouple: Type J or K and lead length (F)
