Specifications | Downloads

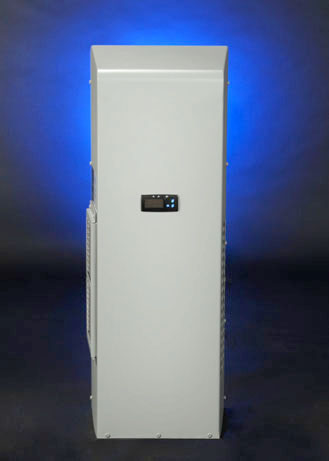

Indoor/Outdoor, NEMA Types 12, 4 & 4X Available
4000 BTUH 32" x 11.8" x 9.5"
Engineered & manufactured to endure the most difficult of environments and applications. Thermal Edge air conditioners will exceed environmental requirements in applications like Steel, Food Processing, Petro-Chemical, Cement, Paper & Pulp and Plastics.
TECHNICAL DATA:
Order
Model
BTU/Hour
Voltage/Hz.
Running Amps
Ambient Max
Temperature
Shipping Weight
(lbs)
NE040126
4000
120/60
5.53
125°F or 131°F
70
NE040226
4000
230/60
TBA
125°F or 131°F
70
DIGITAL TEMPERATURE CONTROLLER:
Programmable set point and temperature operating controls
Visible error and/or alarm messaging
System status indication
Password protection Independent Condensate Management System
CONDENSATE CONTROL:
Complete elimination of condensate
Eradicates condensate without corrosive contact with coils
UNIT EFFICIENCY:
Pressure operated blower control reduces power inrush and saves energy
High efficiency Non-CFC refrigerant
Fully insulated & sealed cabinet
Temperature Control Valve to provide a broad temperature range while maintaining cooling capacity
INDUSTRIAL CONSTRUCTION:
Free standing rigid chassis eases installation and maintenance
COMPRESSOR PROTECTION SYSTEM:
High Low refrigerant cutouts with fault indication
Compressor anti short cycle protection
Compressor run capacitors reduce power inrush, save energy and increase compressor life
OPTIONS:
External Alarm Capabilities
Extended Warranty
Corrosive Environment Package
High and Low Ambient Package
Dry Contact Remote Monitoring Options
Enclosure Heater System
Low Ambient Protection Options
Inlet & Exhaust Hoods
NEMA 4X Available
Air Diversion Inlet and/or Outlet
Cooling Capacity's of 1000 to 30,000 BTUH
