Line Vac™

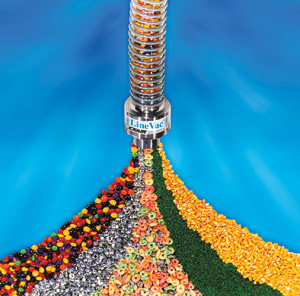

Convey parts, materials, waste - with no moving parts!

What is the Line Vac?
A fast, low cost way to convey:

Plastic pellets

Paper

Scrap trim

Pills/tablets

Textiles

Small parts

Bulk Solids

Shavings

Food products

Sawdust

Chips

Granules

In-Line Conveying

EXAIR's compressed air operated Line Vac connects to standard hose or pipe to create a powerful in-line conveyor. The compact design features large throat diameters for maximum throughput capacity. Eight sizes in stainless steel and aluminum are suited to a wide variety of transfer applications.

The Line Vac injects a small amount of compressed air through directed nozzles to produce a vacuum on one end and high output flows on the other with instantaneous response. The material flow rate is easily controlled with a pressure regulator. An optional bracket permits easy mounting. No moving parts or electricity assures maintenance-free operation.

A Model 6083 1-1/2" Aluminum Line Vac conveys plastic caps from a barrel to an assembly station.

Applications

Advantages

Hopper loading

Compact

Fiber tensioning

Quiet

Material conveying

No moving parts

Waste/trim removal

Fits standard hose or tube

Chip removal

Aluminum or stainless steel

Part transfer

Eight sizes

Filling operations

High throughput capability

How Line Vac Works

Compressed air flows through the inlet (1) into an annular plenum chamber (2). It is then injected into the throat through directed nozzles(3). These jets of air create a vacuum at the intake (4) which draws material in and accelerates it through the unit (5) at long vertical or horizontal distances.

Selecting the Right Model
Line Vac is available in a wide range of sizes to fit your application.
Some of the criteria used to select the proper model are:

	Diameter of parts being conveyed
	Diameter of hose or pipe
	Stainless steel or aluminum

Stainless steel models are ideal for food service, abrasive or corrosive applications. Aluminum is the economical choice for general purpose applications. For assistance with product selection, contact an application engineer at 1-510-352-8199, or email us at tecsmart@iprocessmart.com

Dimensions

SS Models	Alum. Models		A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P
6060	6080	in	.75	.50	1.88	3.88	1.88	1.0	2.0	1.0	.76	1.52	.25	1.38	.06	1.44	.20	1/4 NPT
6060	6080	mm	19	13	48	99	48	25	51	25	19	39	6	35	2	37	5	1/4 NPT
6061	6081	in	1.0	.75	2.13	3.88	1.88	1.0	2.0	1.0	.65	1.3	.26	1.32	.06	1.56	.20	1/4 NPT
6061	6081	mm	25	19	54	99	48	25	51	25	17	33	7	34	2	40	5	1/4 NPT
6062	6082	in	1.25	1.0	2.38	3.88	1.88	1.0	2.5	1.25	1.0	2.0	.31	1.61	.06	1.68	.28	1/4 NPT
6062	6082	mm	32	25	61	99	48	25	64	32	25	51	8	41	2	43	7	1/4 NPT
6063	6083	in	1.5	1.25	2.75	4.38	2.13	1.25	2.5	1.25	.86	1.73	.25	1.44	.06	1.88	.28	3/8 NPT
6063	6083	mm	38	32	70	111	54	32	64	32	22	44	6	37	2	48	7	3/8 NPT
6064	6084	in	2.0	1.75	3.25	4.38	2.13	1.25	3.0	1.5	1.17	2.34	.28	1.48	.06	2.13	.28	3/8 NPT
6064	6084	mm	51	45	83	111	54	32	76	38	30	59	7	38	2	54	7	3/8 NPT
6065	6085	in	2.5	2.25	3.75	4.38	2.13	1.25	3.0	1.5	1.0	2.0	.31	1.44	.06	2.38	.28	3/8 NPT
6065	6085	mm	64	57	95	111	54	32	76	38	25	51	8	37	2	60	7	3/8 NPT
6066	6086	in	3.0	2.75	4.25	5.63	2.75	1.75	3.25	1.63	1.20	2.41	.41	1.44	.06	2.63	.28	1/2 NPT
6066	6086	mm	76	70	108	143	70	45	83	41	31	61	10	37	2	67	7	1/2 NPT
6067	6087	in	4.0	3.75	5.25	5.63	2.75	1.75	3.25	1.63	1.34	2.7	.31	1.59	.06	3.13	.28	1/2 NPT
6067	6087	mm	102	95	133	143	70	45	83	41	34	69	8	40	2	80	7	1/2 NPT

Performance

80 PSIG (5.5 BAR)	Air Consumption		Vacuum
Model#	SCFM	SLPM	"H₂O	kPa
6060 and 6080	10.7	303	-72	-18
6061 and 6081	14.7	501	-42	-11
6062 and 6082	25.9	733	-42	-11
6063 and 6083	27.5	778	-30.7	-8
6064 and 6084	45	1274	-28.5	-7
6065 and 6085	58.5	1656	-23.5	-6
6066 and 6086	68.5	1939	-14.7	-4
6067 and 6087	80.2	2270	-11.5	-3

Line Vacs are available in eight sizes in both
stainless steel and aluminum.

Ordering Information
Code	Description	Order Now!
EX6080	Exair 6080 3/4" (19mm) Aluminum Line Vac
EX6081	Exair 6081 1" (25mm) Aluminum Line Vac
EX6082	Exair 6082 1-1/4" (32mm) Aluminum Line Vac
EX6083	Exair 6083 1-1/2" (39mm) Aluminum Line Vac
EX6084	Exair 6084 2" (51mm) Aluminum Line Vac
EX6085	Exair 6085 2-1/2" (64mm) Aluminum Line Vac
EX6086	Exair 6086 3" (76mm) Aluminum Line Vac
EX6087	Exair 6087 4" (102mm) Aluminum Line Vac
EX6980	Exair 6980 3/4" (19mm) Aluminum Line Vac Kit
EX6981	Exair 6981 1" (25mm) Aluminum Line Vac Kit
EX6982	Exair 6982 1-1/4" (32mm) Aluminum Line Vac Kit
EX6983	Exair 6983 1-1/2" (38mm) Aluminum Line Vac Kit
EX6984	Exair 6984 2" (51mm) Aluminum Line Vac Kit
EX6985	Exair 6985 2-1/2" (64mm) Aluminum Line Vac Kit
EX6986	Exair 6986 3" (76mm) Aluminum Line Vac Kit
EX6987	Exair 6987 4" (102mm) Aluminum Line Vac Kit
EX6060	Exair 6060 3/4" (19mm) Stainless Steel Line Vac
EX6061	Exair 6061 1" (25mm) Stainless Steel Line Vac
EX6062	Exair 6062 1-1/4" (32mm) Stainless Steel Line Vac
EX6063	Exair 6063 1-1/2" (38mm) Stainless Steel Line Vac
EX6064	Exair 6064 2" (51mm) Stainless Steel Line Vac
EX6065	Exair 6065 2-1/2" (64mm) Stainless Steel Line Vac
EX6066	Exair 6066 3" (76mm) Stainless Steel Line Vac
EX6067	Exair 6067 4" (102mm) Stainless Steel Line Vac
EX6960	Exair 6960 3/4" (19mm) Stainless Steel Line Vac Kit
EX6961	Exair 6961 1" (25mm) Stainless Steel Line Vac Kit
EX6962	Exair 6962 1-1/4" (32 mm) Stainless Steel Line Vac Kit
EX6963	Exair 6963 1-1/2" (38mm) Stainless Steel Line Vac Kit
EX6964	Exair 6964 2" (51mm) Stainless Steel Line Vac Kit
EX6965	Exair 6965 2-1/2" (64mm) Stainless Steel Line Vac Kit
EX6966	Exair 6966 3" (76mm) Stainless Steel Line Vac Kit
EX6995	Exair 6995 Mounting Bracket for 3/4" (19mm) and 1" (25mm) Line Vac Units
EX6996	Exair 6996 Mounting Bracket for 1-1/4" (32mm) and 1-1/2" (38mm) Line Vac Units
EX6997	Exair 6997 Mounting Bracket for 2" (51mm) and 2-1/2" (64mm) Line Vac Units
EX6998	Exair 6998 Mounting Bracket for 3" (76mm) and 4" (102mm) Line Vac Units
EX6190	Exair 6190 Drum Vac System
EX6191	Exair 6191 Reversible Drum Vac System
EX6192	Exair 6192 Vac-u-Gun Collection System
EX6193	Exair 6193 Chip Vac System
EX6292	Exair 6292 Vac-u-Gun Transfer System
EX6392	Exair 6392 Vac-u-Gun All Purpose System
