Pentek Water

Bag Vessel Filter Assemblies

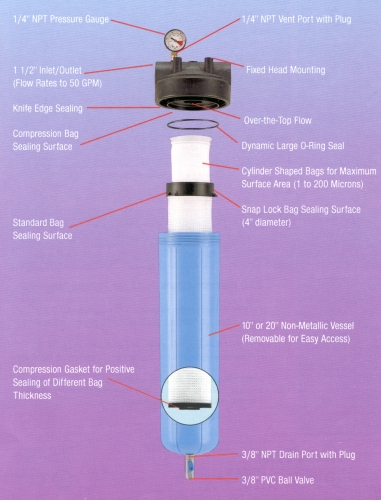

Pentek PBH Bag Vessel

PENTEK's standard bag vessel assemblies keep your system on stream longer by reducing bag filter change time. They are made of lightweight corrosion resistant polypropylene to give you all the strength you need without the weight.
Install as a duplex system for totally uninterrupted flow rates.
All PBH Series vessels come complete with gauge, wrench, and 3/8" drain valve. The single large Acme thread closure ensures quick opening and positive sealing.

  • Lightweight corrosion resistant polypropylene construction gives you strength without weight
  • Choice of 10" or 20" housings
  • Available in 1" and 1-1/2" NPT sizes
  • Come complete with gauge, wrench, and 3/8" drain valve
  • Light enough to be portable
  • Order Online Adobe Pdf Files Bag Vessel Product Brochure Adobe Pdf Files Bag Vessel Installation Manual
    Click to enlarge!

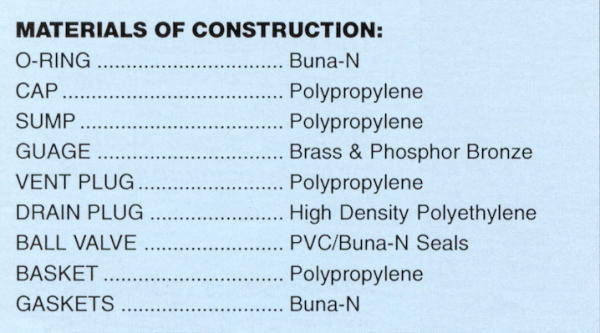

    Materials of Construction:
    O-RING Buna-N
    CAP Polypropylene
    SUMP Polypropylene
    GAUGE Brass & Phosphor Bronze
    VENT PLUG Polypropylene
    DRAIN PLUG High Density Polyethylene
    BALL VALVE PVC/Buna-N Seals
    BASKET Polypropylene
    GASKETS Buna-N
    Click to enlarge!

    BAG INFORMATION (For Bags Without Top-Rings):

    • PBH-410 accepts a standard 4" diameter by 9 1/2" long bag. (Dimensions allow for 1" overlap on basket.)
    • PBH-420 accepts a standard 4" diameter by 19 1/2" long bag. (Dimensions allow for 1" overlap on basket.)
