8045
Insertion Magmeter
with solid state technology |
| |
|
|
|
Flow Control
of liquids with or without solid particles |
|
|
|

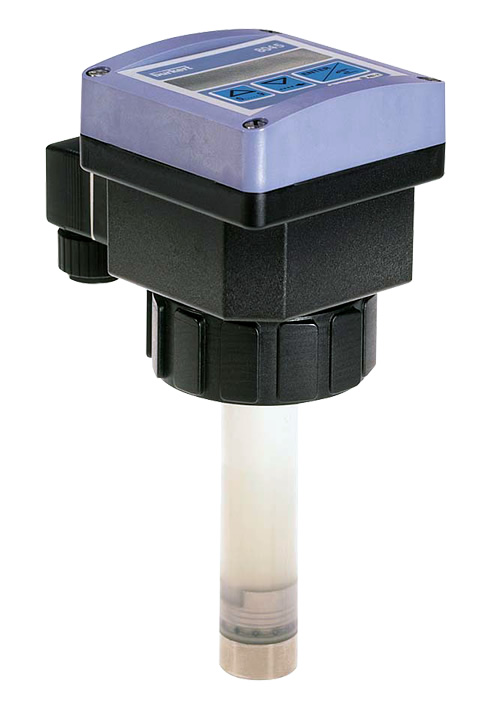

8045 Magmeter
is an insertion flow meter for pipes 1/2" through 2".
Typical applications are liquids having a conductivity >
20µS.
For commissioning
a simulation-mode is available providing a simulation of
all output signals as if there was real flow. So, the user
can first simulate all flow conditions safely including
alarm conditions before putting the hydraulics into action.
Calibration is done by either using the standard calibration
factors or the unique Teach-in function. In the latter case
the unit will do an auto-calibration once installed on the
particular application.
For wastewater
treatment, surface treatment, laundries and food industry
applications.
|
| PROCESS
SPECIFICATIONS |
| Measuring
Range |
0.16
- 32.81 ft/s |
Sensor
material |
Body
in PVDF, electrodes 316L SS |
| Measuring
error |
With
individual works calibration (on request) or Teach-in: <
±2% o.R. (3.28-32.81 ft/s)
|
O-rings |
FPM
(Viton) standard |
| |
With
standard mean K-factor: < ±4% o.R. (3.28-32.81
ft)
|
Housing |
PC |
| Linearity |
<
±(1%
o.R. + 0.1% o.F.S.) |
Front
plate foil |
Polyester |
| Repeatability |
±
0.25% o.R. |
Fittings |
Stainless
steel and Brass |
| Temp.
coefficient |
DN9/16
DN3/4, DN1 |
=
+0.2% /K*
= +0.1% /K* |
Pipe
Diameters |
1/2"
to 16" |
| |
>
DN1 |
=
+0.05% /K* |
Power
Supply |
18...32
VDC, 3-wire |
| |
* Reference
temperature
|
Cable
Connector |
1
x 1/2" conduit entry |
| Display |
0.59x2.360",
8-digit LC-display, |
Output
Signal |
4...20
mA |
| |
alphanumeric,
15 segments, 0.35" large. |
Load |
max.
900 ohms at 30V
max. 500 ohms at 24V
Max. 100 ohms at 15V |
| Fluid
conductivity |
>
20 µS (Micro-Siemens) |
|
| Fluid
temperature max. |
0
to 176 °F |
Pulse
Output |
Open
Collector NPN and PNP
0...30V, 100 mA, protected |
| Ambient
temperature |
0
to 140 °F |
Option
|
Reed
relay closing 0.1 s, opening depending from flow rate 0.1
s. min. |
| Storage
temperature |
0
to 140 °F |
|
Switches
max. 34V, 0.2A
|
| Pressure
class |
85
PSI (PN6) |
Relay
Output (Option)
|
2
relays, freely programmable, 3A,
230V |
| Enclosure |
Nema
4 (IP65) |
|
|
| |
 |
 |
|
|

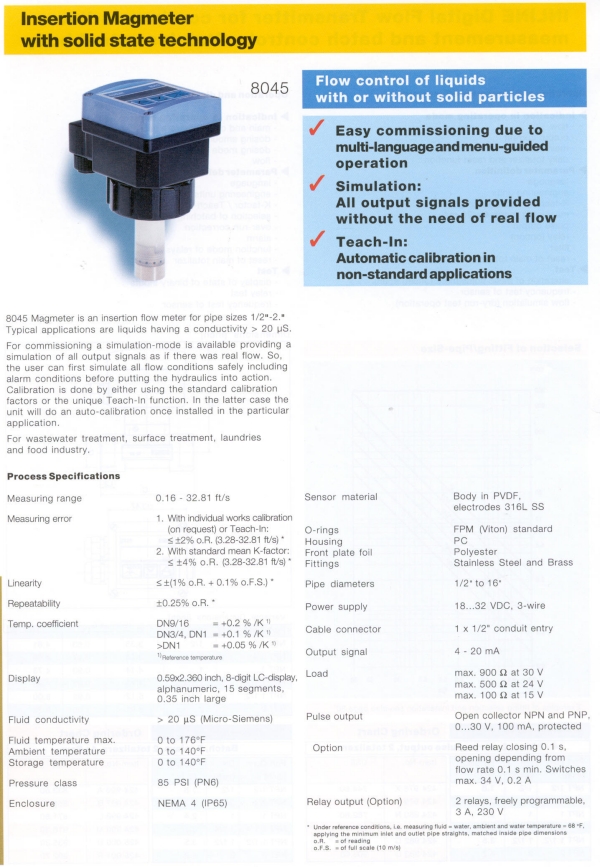

| Select
to view Page 1 |

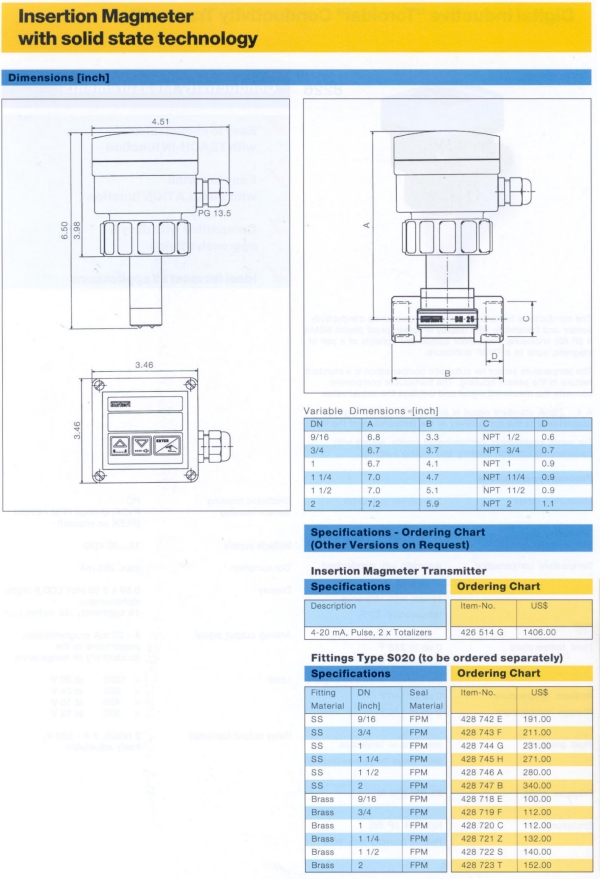

Select
to view Page 2 |

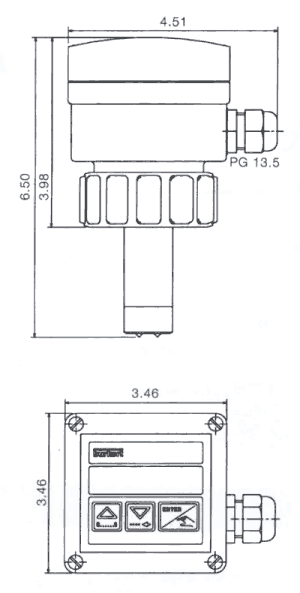

Magmeter
Dimensions
|
Variable
Dimensions
|
|
| Insertion
Magmeter Transmitter |
| BU
426514G |
Burkert
426514G Insertion Magmeter transmitter, 4...20 mA output, Pulse,
2 x Totalizers |
|
| Fittings
Type 020 (ordered separately) |
| Stainless
Steel |
|
|
| BU
428742E |
Bukert
428742E SS 1/2"-9/16" Fitting (Threaded Conn.) |
|
| BU
428743F |
Burkert
428743F SS 3/4" Fitting |
|
| Brass |
|
|
| BU
428 718E |
Burkert
428718E Brass 1/2"-9/16" Fitting (Threaded Conn.) |
|
| BU
428719F |
Burkert
428719F Brass 3/4" Fitting |
|
| PVC |
|
|
| BU
428682T |
Burkert
42868T PVC 1/2" Fitting (Threaded Conn.) |
|
| BU
428694X |
Burkert
428694X PVC 1/2" Fitting (Weld Ends) |
|
| |
|
|
| |
|
|
|
| |
