Ogden ETR Process and Temperature Controllers
Ogden ETR-9090 1/16 DIN Microprocessor Based Smarter Logic® Temperature Control |
|||||
 |
48mm x 48mm - Dual Display - Smarter Logic for Superior Control - Selectable Input - Selectable Alarm Modes - °F or °C Display - Sealed Mylar Front Panel - External Lockout - All Control Parameters Adjustable from Front Panel - Automatic/Manual Mode Operation - 3 Year Warranty The ETR-9090 has been available for many years and is the workhorse of 1/16 DIN Microprocessor Based Controls. Using Smarter Logic technology, the ETR-9090 provides better than ever control results. SMT and microprocessor technology allows advanced features plus economy and reliability. All parameters are front panel configurable for easy set up. A ramp to set point function prevents rapid temperature changes that could damage the product being heated. The ramp function used with the dwell timer can provide two ramp and soak segments. The ETR-9090 in-panel depth is only 3-3/8". In use in a wide variety of industrial and commercial applications, the ETR-9090 is the control to rely on. |
||||
 |
|||||
|
|||||
ETR-9100 Series - Auto-Tune PID Temperature Controller |
|||||
 |
Easy-to-Use Operator Interface - Fuzzy Logic PID Heat & Cool Control - Fast A-D Sampling Rate (5 times/sec.) - Universal Input PT100, Themocouple with High Accuracy 18-bit A-D - Analog Output (Linear Current or voltage) Uses High Accuracy 15-bit D-A - RS-485 or RS-232 Interface - Programming Port - Manual Control & Auto-Tune Functions - Six Alarm Mode Selections - Lockout Protection - Bumpless Transfer During Failure Mode - Soft-Start Ramp and Dwell Timer - Bright LED Display Stabilized with Digital Filter - SEL Function Allows User to Rearrange Menu-UL Recognized, CSA, IEC1010-1 The ETR Fuzzy Logic plus PID microprocessor-based controller series incorporates two bright, easy-to-read, 4-digit LED displays, indicating process value and set point value. The Fuzzy Logic technology enables a process to reach a predetermined set-point in the shortest possible time, with minimum overshoot during powerup or external load disturbance. ETR-9100 is a 1/16 DIN size panel mount controller powered by universal 90-250 VDC/VAC supply. Up to three outputs are available for control and alarm. The second output may be used as cooling control, or an alarm. Output selections are relay, triac, 5 V logic output, linear current, or linear voltage to drive an external device. There are six types of alarms, plus a dwell timer may be configured for the third output. The units provide universal input selection of RTD’s and thermocouple types J, K, T, E, B, R, S, N, L without modification of the unit. The input signal is digitized by using an 18-bit A to D converter. Its fast sampling rate enables the unit to control fast processes. Digital communications RS-485 or RS-232 are available as an additional option. These options allow the units to be integrated with a supervisory control system and software. A programming port is available for automatic configuration, calibration and testing without the need to access the keys on front panel. By using proprietary Fuzzy Logic PID auto tuning technology, temperature overshoot and undershoot is minimized. Figure 1 control diagram is a comparison of a typical system response with and without Fuzzy technology. |
||||
|
|||||
| ETR-8120 OBSOLETE, replace with ETR-8100 | |||||
ETR-8100 1/8 DIN Auto-Tune PID Temperature Controller |
|||||
 |
Easy-to-Use Operator Interface - Fuzzy Logic PID Heat & Cool Control - Fast A-D Sampling Rate (5 times/sec.) - Universal Input PT100, Themocouple with High Accuracy 18-bit A-D - Analog Output (Linear Current or voltage) Uses High Accuracy 15-bit D-A - RS-485 or RS-232 Interface - Programming Port - Manual Control & Auto-Tune Functions - Six Alarm Mode Selections - Lockout Protection - Bumpless Transfer During Failure Mode - Soft-Start Ramp and Dwell Timer - Bright LED Display Stabilized with Digital Filter - SEL Function Allows User to Rearrange Menu-UL Recognized, CSA, IEC1010-1 The ETR Fuzzy Logic plus PID microprocessor-based controller series incorporates two bright, easy-to-read, 4-digit LED displays, indicating process value and set point value. The Fuzzy Logic technology enables a process to reach a predetermined set-point in the shortest possible time, with minimum overshoot during powerup or external load disturbance. ETR-8100 is a 1/8 DIN size panel mount controller powered by universal 90-250 VDC/VAC supply. Up to three outputs are available for control and alarm. The second output may be used as cooling control, or an alarm. Output selections are relay, triac, 5 V logic output, linear current, or linear voltage to drive an external device. There are six types of alarms, plus a dwell timer may be configured for the third output. The units provide universal input selection of RTD’s and thermocouple types J, K, T, E, B, R, S, N, L without modification of the unit. The input signal is digitized by using an 18-bit A to D converter. Its fast sampling rate enables the unit to control fast processes. Digital communications RS-485 or RS-232 are available as an additional option. These options allow the units to be integrated with a supervisory control system and software. A programming port is available for automatic configuration, calibration and testing without the need to access the keys on front panel. By using proprietary Fuzzy Logic PID auto tuning technology, temperature overshoot and undershoot is minimized. Figure 1 control diagram is a comparison of a typical system response with and without Fuzzy technology. |
||||
|
|||||

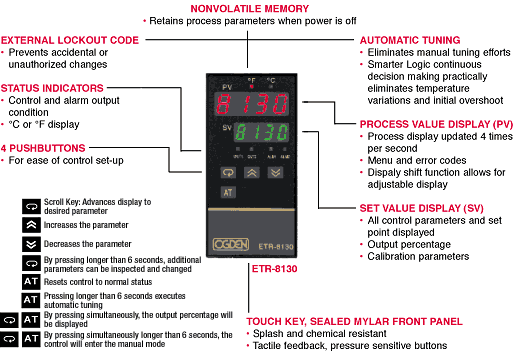

| ETR-8130 OBSOLETE, replace with ETR-8300 | |||||
ETR-8300 1/8 DIN Microprocessor Based Smarter Logic® Temperature Control |
|||||
 |

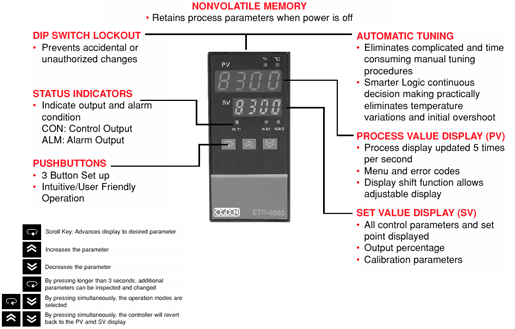

48mm x 96mm - Smarter Logic for Superior Control - Universal Sensor Input - 4 Independent Simultaneous Outputs - Analog Input for Remote Set Point Adjustment - Second Set Point - Loop Break Alarm - Heater Break Alarm - Differential Control - Auxiliary Power Supply Option - 5 Per Second Sample Rate - 18 Bit A/D Converter - Digital Communications - Value Retransmission - Bumpless Transfer - 3 Year Warranty - UL, CSA. CE Agency Approvals - The ETR-8300 offers the latest in control and safety features with few limitations in a single zone controller. Inputs feature a completely field-programmable selection of 9 Thermocouple sensors, 2 standard RTD curves, and 6 linear process inputs. Output options feature standard modules plus 3 optional auxiliary power supplies for powering external transmitters, various sensors or small devices. If that isn't enough, utilizing the Heater break alarm feature, the ETR-8300 can additionally be used to monitor heater current using the CT-94-1 current transformer accessory as offered below. With a comprehensive communications package, the RS-232 or RS-485 option offers remote historical trending, control, recipe loads and complete monitoring capabilities with the right software package. Included with each order is our comprehensive full-page 8-1/2x11" ETR-8300 instruction manual that requires no squinting. Packed full of power, this 1/8th DIN controller leaves nothing to be desired. |
||||
 |
|||||
|
|||||
|
