	Adjustable Spot Cooler
	Cold air to -30°F (-34°C) from your compressed air supply for spot cooling!

What is the Adjustable Spot Cooler?
A low cost, reliable, maintenance free solution to a variety of industrial spot cooling problems. With the turn of a knob, you can select the temperature best suited to your application. The Adjustable Spot Cooler provides a precise temperature setting from -30°F (-34°C) to room temperature.

The Adjustable Spot Cooler incorporates a vortex tube that converts an ordinary supply of compressed air into cold air. The Adjustable Spot Cooler can produce:

Temperatures from -30° to +70°F (-34°C to 21°C)
Flow rates from 15 to 30 SCFM (425 to 850 SLPM)
Refrigeration up to 2000 Btu/hr. (504 Kcal/hr.)

Flexible tubing that holds its position directs the cold air. A swivel magnetic base provides easy mounting and portability. No moving parts or CFC's assures maintenance free operation.

Why Use The Adjustable Spot Cooler?
The Adjustable Spot Cooler is quiet (less than 75 dBA), easily set with a thermometer and holds the temperature setting. It's ideal for applications where mist or liquid cooling cannot be used due to part contamination or cost. Tolerances, product finish and production rates can improve dramatically.

The Adjustable Spot Cooler is available with either a single point or dual point hose kit.

The single point system (Model 3825) is recommended for cooling a small surface like solder joints, hot melts or drilled plastics. The dual point system (Model 3925) is recommended when heat is generated over a larger surface area.

The Adjustable Spot Cooler Maintains tolerances on machined plastic parts.

Electronic components stay cool during a soldering operation.

The Adjustable Spot Cooler quickly cools heat shrink tubing.

Applications

Advantages

	Adjusting thermostats
	Cooling solder
	Cooling machined plastics
	Setting hot melts
	Cooling welding horns
	Cooling molded plastics
	Electronic component cooling
	Cooling gas samples
	Cooling environmental chambers

	No moving parts
	No electricity or chemicals
	Small, lightweight
	Low cost
	Maintenance free
	Instant cold air
	Quiet - less than 75 dBA
	Swivel magnetic base
	Interchangeable generators

How the Adjustable Spot Cooler Works

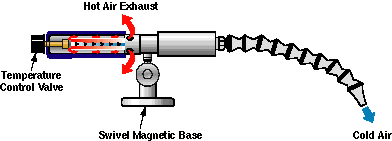

The Adjustable Spot Cooler incorporates a vortex tube to convert an ordinary supply of compressed air into two low pressure streams, one hot and one cold. With the turn of a knob, the temperature control valve allows some hot air to flow through a muffling sleeve and out the hot air exhaust. The opposite end provides a cold airstream that is muffled and discharged through the flexible hose, which directs it to the point of use. The swivel magnetic base provides easy mounting and portability.

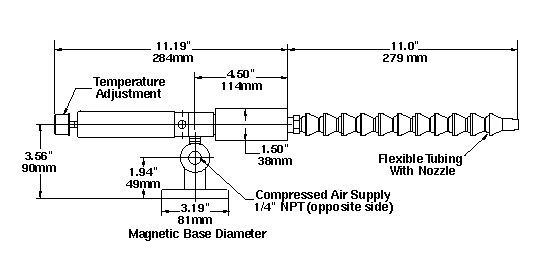

Dimensions

Adjusting the Spot Cooler
The Adjustable Spot Cooler System can produce a full range of airflows and temperatures as determined by the knob setting and a small internal part called a generator. The generators control the SCFM (SLPM) of airflow and are easily interchangeable.

The Adjustable Spot Cooler has a 25 SCFM (708 SLPM) generator installed that will produce up to 1,700 Btu/hr. (429 Kcal/hr.). If less cooling is desired, the 15 SCFM (425 SLPM) generator which delivers 1,000 Btu/hr. (252 Kcal/hr.) can be easily installed. If more cooling is needed, the 30 SCFM (850 SLPM) generator can be installed for up to 2,000 Btu/hr. (504 Kcal/hr.).

Adjustable Spot Cooler Systems

Model 3825: includes the Adjustable Spot Cooler, single point hose kit with cone and fan nozzle, swivel magnetic base, filter separator and (2) additional generators.

Model 3925: includes the Adjustable Spot Cooler, dual point hose kit with cone and fan nozzles, swivel magnetic base, filter separator and (2) additional generators .

(The Adjustable Spot Cooler with dual point hose kit is recommended when heat is generated over a larger surface area)

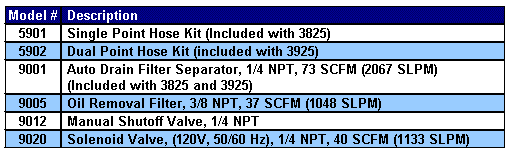

Accessories
