Air Jet Selection Guide |
|
|
|
|
Model
6010 |
|
| Provides maximum flow and moderate thrust at minimum air consumption. Best choice for light blowoff applications and part cooling. | |
| Material:
Brass Force: 6.5 oz.* Force measured at 80 PSIG (5.5 BAR), 12" (30cm) from target  |
|
|
|
|
|
Model
6013 |
|
| Provides maximum thrust. Confined, directed air stream. Best choice for part ejection, chip removal and part drying. | |
| Material:
Brass Force: 13.9 oz. Force measured at 80 PSIG (5.5 BAR), 12" (30cm) from target |
|
|
|
|
|
Model

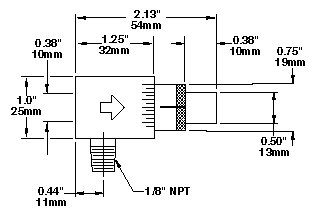

6019 |
|
| Adjustable version of the Model 6013 High Velocity Air Jet. Airflow and thrust are easily adjusted using micrometer gap indicator. | |
| Material:
Brass Force: 12.9 oz.* [.006" (.15mm) gap setting] Force measured at 80 PSIG (5.5 BAR), 12" (30cm) from target |
|
| P/N | Description | Order Now! |
| Exair 6010 High Flow Air Jet, 3/4" (19mm) diameter outlet |
|
|
| Exair 6013 High Velocity Air Jet, 1/2" (13mm) diameter outlet |
|
|
| Exair 6019 Adjustable Air Jet, 1/2" (13mm) diameter outlet |
|
|
| Exair 6310 Air Jet Shim Set |
|
|
|
|
||||
|
