Ion Air Cannon™
Concentrated flow of ionized air removes static and dust!

What is the Ion Air Cannon?

EXAIR's Ion Air Cannon neutralizes static electricity and cleans at distances up to 15 feet (4.6m) with no moving parts. It is ideal for those hard to reach spaces or confined areas that require a concentrated flow of static eliminating ions. With an optional pressure regulator, the air volume and velocity are infinitely adjustable over a wide range, for light to heavy duty applications.

Why the Ion Air Cannon?

The Ion Air Cannon will maximize ionized airflow while minimizing compressed air consumption. A small amount of compressed air is used to entrain a high volume flow of surrounding air. This combined stream is ionized by an emitter point (shockless) and delivered to the charged surface. A hose or tube can be connected to the air intake of the Ion Air Cannon to draw quality air from another area. It requires only 10 PSIG (0.7 BAR) for most applications.

The compact design saves bench space and allows mounting in confined areas. The sturdy stand is pre-drilled and can be wall, bench or machine mounted. It incorporates a swivel adjustment for directing the airflow.


A Model 7292 Ion Air Cannon System removes static and dust from glove box inserts prior to flocking or painting.

Applications

Advantages

	Bag opening - form and fill
	Clean and neutralize 3D parts
	Neutralizing shrink wrap
	Cleaning molded parts
	Removing static on electronic assemblies
	Pre-paint dust removal
	Neutralizing slitting operations
	Package cleaning
	Container neutralization

	Low air consumption
	Rapid static decay
	Quiet
	Effective up to 15' (4.6m)
	Shockless, non-radioactive
	Compact, rugged, easy to install
	Intake can be ducted
	No moving parts - low maintenance
	Variable force and flow

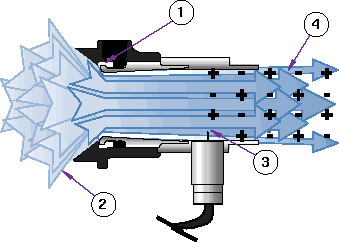

How the Ion Air Cannon Works


The Ion Air Cannon incorporates a Super Air Amplifier* and ionizing collar, energized by a power supply. A small amount of compressed air is injected into the barrel of the cannon (1) inducing a high volume flow of surrounding air to flow through it (2). An emitter point at the discharge end of the cannon (3) ionizes the entire airstream. The result is a high volume, conical flow of ionized air (4) capable of eliminating static and cleaning at distances up to 15 feet (4.6m). Because more than 90% of the ionized air is induced, the Ion Air Cannon produces maximum airflow at minimum air consumption.

* Patent #5402938

Performance

Supply Pressure		Air Consumption		Sound Level	Dissipates 5kV*
PSIG	BAR	SCFM	SLPM	dBA	SECONDS

20	1.4	5.7	161	58	0.75
40	2.8	9.0	255	64	0.60
60	4.1	12.2	345	70	0.50
80	5.5	15.5	439	72	0.43
100	6.9	18.7	529	74	0.37

* 12" (30.5cm) from target

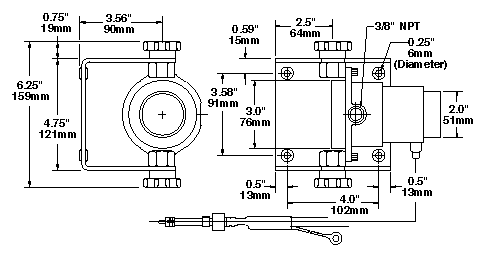

Dimensions

Specifications

EXAIR Model 7901 or 7907 Power Supply (5 kV) is required for operation.
Power supplies are equipped with a 6' (1.83m) power cord, lighted power switch and (2) high voltage outlets.

Compressed Air:
3/8" NPT inlet provided

Electrical:
For use with 5 kVrms, 5 milliamperes (max.) power supply, Model 7901 (115V) or 7907 (230V). Power Supplies are UL Listed, CSA Certified.

Electrical Hazard:
Shockless (less than 40 microamperes short circuited).
Do not use near flammable materials or gases!

Materials of Construction:
Air Cannon: Aluminum
Ionizing Collar: Aluminum
Plastic Parts: UL rated 94 HB
Emitter: Stainless Steel

Maximum Ambient Temperature: 165°F (74°C)

Shims: Thicker shims can be installed easily if additional hard-hitting velocity is required.


The Model 7901 or 7907 Power Supply
has a lighted power switch and
(2) 5kV outlets.

Ordering Information
P/N	Description	Order Now!
EX7192	Exair 7192 Ion Air Cannon Only
EX7193	Exair 7193 Ion Air Gun Only
EX7292	Exair 7292 Ion Air Cannon and Power Supply
EX7293	Exair 7293 Ion Air Gun and Power Supply
EX7492	Exair 7492 Ion Air Cannon Kit
EX7493	Exair 7493 Ion Air Gun Kit
EX7901	Exair 7901 Power Supply Only (115V, 50/60Hz)
EX7902	Exair 7902 Extension Cable, 5' (1.52m) length
EX7905	Exair 7905 Static Meter
EX7907	Exair 7907 Powere Supply Only (230V, 50/60Hz, 2 outlets)
