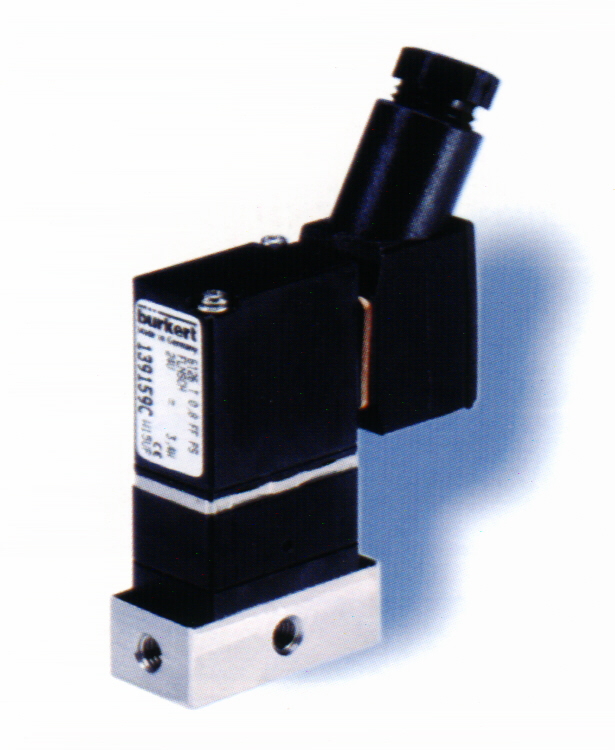

6125 Miniature Rocker Solenoid Valve with isolating diaphragm |
 |
 |
2/2-Way,
Miniature Solenoid Valve UNF1/4, Vacuum-140 PSI Normally Closed |
|||||||||
|
||||||||||
| Rocker solenoid valve with separating diaphragm provides high reliability and long service life. For difficult and slightly aggressive media. Heat transfer is virtually eliminated as the coil is not directly in contact with the diaphragm. High accuracy and the control of critical fluids is possible. | ||||||||||
| Technical Data | ||
| Pressure Range | Vacuum - 140 PSI | |
| Temperature media | 14°F ... +122°F | |
| Ambient temperature | +131°F, max. | |
| Body material | Stainless steel 360L, brass | |
| Isolating plate body/coil | Stainless steel 301 | |
| Seat material | FKM | |
| Coil material | Polyamide | |
| Power consumption | DC: 3.4W; UC: 4W | |
| Protection class | IP
65 with cable plug type 2506. IP 20 without cable plug. |
|
| Cable plug | Type 2506, DIN 43 650 C, 0-250 V (standard delivery with the valve) | |
| Electrical connection | -Side or top tag connector to DIN 43 650. | |
| Options | ||
| With
diagnostics: - Flow / low flow signal with adjustable level. - Valve position signal. - LED's and binary outputs. |
|

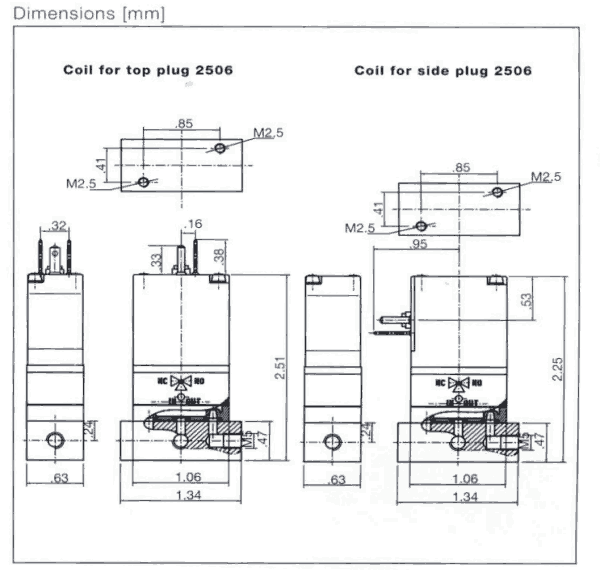

< Select to view dimensions > |
| Specifications | ||||||
| Port C. | Orifice [inch] | Cv | Pressure Range1) [PSI] | Seal Material | Electrical Connection | Weight [oz.] |
| Brass valve body | ||||||
| UNF 1/4 | 1/32 | 0.017 | Vac.-140 | FKM | cab.plug 2506 | 4.23 |
| Stainless steel valve body | ||||||
| UNF 1/4 | 1/32 | 0.017 | Vac.-140 | FKM | cab.plug 2506 | 4.23 |
| 1) back pressure 140 PSI | ||||||
| ORDERING CHART | |||
|
P/N |
Description |
Order Now! |
|
| BU 431745U | Type
6125 Burkert BU 431745U 2/2-Way, SS Miniature Solenoid Valve, UNF1/4, 24VDC, N.C. |
 |
|
| BU 431571N | Type
6125 Burkert BU 431571N 2/2-Way, SS Miniature Solenoid Valve, UNF1/4, 120V/UC, N.C. |
|
|
| BU 431572P | Type
6125 Burkert BU 431572P 2/2-Way, SS Miniature Solenoid Valve, UNF1/4, 240V/UC, N.C. |
|
|
| BU 431746V | Type
6125 Burkert BU 431746V 2/2-Way, SS Miniature Solenoid Valve, UNF1/4, 24VDC, N.C. |
|
|
| BU 431578V | Type
6125 Burkert BU 431578V 2/2-Way, SS Miniature Solenoid Valve, UNF1/4, 120V/UC, N.C. |
|
|
| BU 431579W | Type
6125 Burkert BU 431579W 2/2-Way, SS Miniature Solenoid Valve, UNF1/4, 240V/UC, N.C. |
|
|
| 1)
Side spade connector 2) Top spade connector, universal coil (UC) with integrated rectifier |
