8175 Ultrasonic Level Transmitter |
|
|
• Teach-In function for easy commissioning provides low Total Cost of Ownership | |||||||||||||||||
|
• Simulation function for system tests under dry run conditions |
||||||||||||||||||
|
• Easy Link with 4 - 20 mA current output for continuous control and two relay outputs for ON/OFF control and fail-safe logic |
||||||||||||||||||
|
• Easy commissioning due to multi-language, menu-guided operation with 8 digit alphanumeric display |
||||||||||||||||||
|
• Intelligent echo filter for automatic rejection for pertubating echoes |
||||||||||||||||||
 |
||||||||||||||||||
|

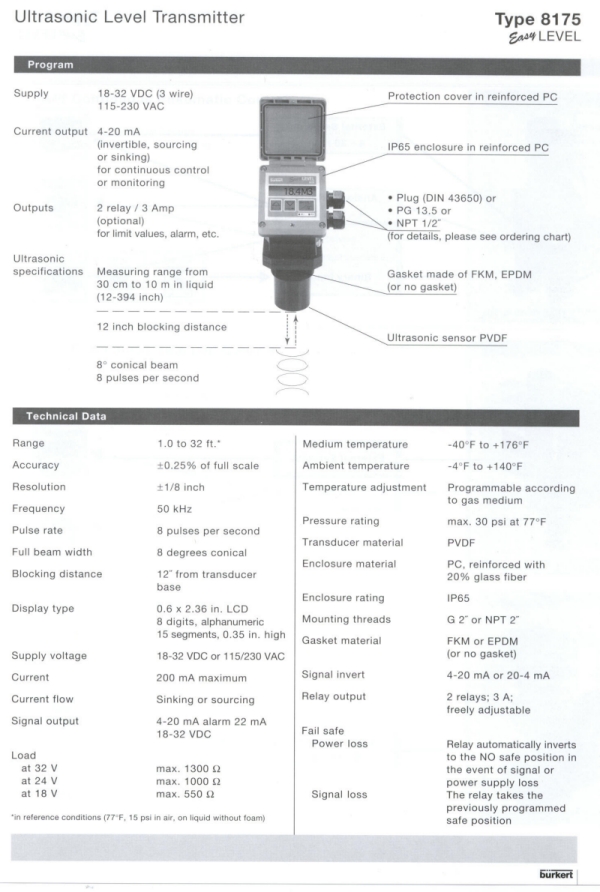

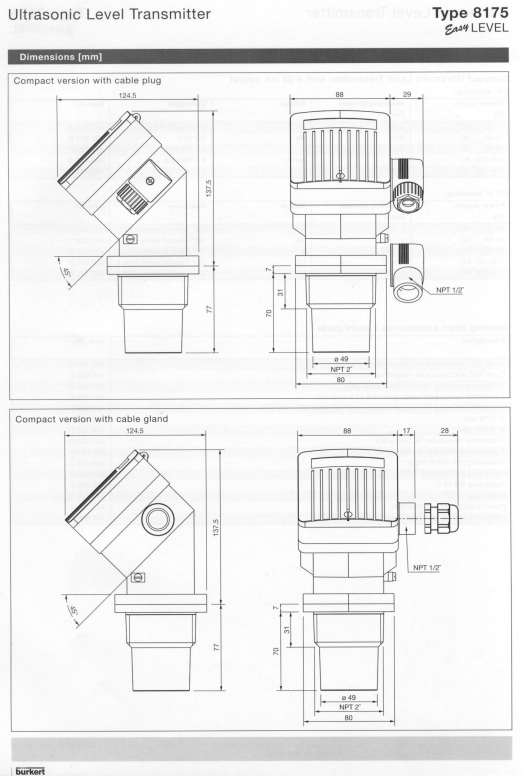

DESIGN / FUNCTION The Ultrasonic Level Transmitter Type 8175 combines an ultrasonic sensor and a transducer with a large 8-digit multi-language display in a splash-proof plastic NEMA 4 enclosure. The transmitter is powered with 18-32 VDC (optionally 115/230 VAC) and features a three-wire 4-20 mA output for direct controlling a continuous control valve, a PLC, or for monitoring. Two optional 3A relays can be configured as alarms or latched for automatic fill or empty operations. The transmitter Type 8175 includes a range of fail-safe features. Signal loss, power supply failure, level or temperature alarm can be activated with an adjustable time delay. A range of filter functions control the return echoes and automatically eliminate all interference due to elements of the vessel. Easy and fast commissioning is guaranteed with the “Teach-In” and “Simulation” functions. Different tank shapes (cylindrical, cubic, spherical) can be easily programmed via fixed default shapes or at complex tank shapes step by step. The measured value can be shown as a level, a distance (in cm, m, inch or feet), or direct as a volume (liter, m 3 , imp. gal, U.S. gal). The simulation functions allow the system to be tested under dry-run conditions. Burkert offers the Ultrasonic Level Transmitter together with process control valves as a complete, easy to control system. Easy commissioning, installation and operation makes the Burkert level control system number one in cost of ownership. APPLICATIONS • Non-contact continuous
level or volume measurement with all liquids in open or closed
vessels
|
||||||||||||||||||
| ORDERING CHART - Compact Ultrasonic Level Transmitter with 4 - 20 mA output (NPT 2" mounting) | |||||||||
|
P/N
|
Description
|
Order
Now!
|
|||||||
| BU403827J | Burkert Type 8175 Ultrasonic Level Transmitter, 4-20mA output, 18-32VDC Power, 2"NPT mounting, No Relays, 1/2" Conduit plug.(1ea.) |
 |
|||||||
| BU430828T | Burkert Type 8175 Ultrasonic Level Transmitter, 4-20mA output, 18-32VDC Power, 2"NPT mounting, No Relays, 1/2" Conduit entry. (1ea.) |
|
|||||||
| BU430829U | Burkert Type 8175 Ultrasonic Level Transmitter, 4-20mA output, 18-32VDC Power, 2"NPT mounting, 2 Relays, 1/2" Conduit entry. (2ea.) |
|
|||||||
| BU430830Z | Burkert Type 8175 Ultrasonic Level Transmitter, 4-20mA output, 115-230VAC Power, 2"NPT mounting, No Relays, 1/2" Conduit entry. (2ea.) |
|
|||||||
| BU430831N | Burkert Type 8175 Ultrasonic Level Transmitter, 4-20mA output, 115-230VAC Power, 2"NPT mounting, 2 Relays, 1/2" Conduit entry. (2ea.) |
|
|||||||
| ACCESSORIES / SPARE PARTS | |||||||||
| BU430834R | Burkert Cover with electronics for transmitter without relay for Type 8175 | ||||||||
| BU430835J | Burkert Cover with electronics for transmitter with relay for Type 8175 | ||||||||
| BU427050X | Burkert Transmitter housing for DIN 43650 cable plug for Type 8175 | ||||||||
| BU430832P | Burkert Transmitter housing for cable gland 13.5 or G 1/2" for Type 8175 | ||||||||
| BU430833Q | Burkert Transmitter housing for for two cable glands PG 13.5 or G 1/2" for Type 8175 | ||||||||
| BU430749K | Burkert 2" FPM seal for Type 8175 | ||||||||
| BU430750Q | Burkert 2" EPDM seal for Type 8175 | ||||||||
| BU427053N | Burkert Transmitter transducer for fitting G 2" (Type 8175) | ||||||||
| BU427054P | Burkert Transmitter transducer for fitting NPT 2" (Type 8175) | ||||||||
| BU424205Z | Burkert Cable Plug DIN 43650 PG9 for Type 8175 | ||||||||
| BU424206S | Burkert Cable Plug DIN 43650 G 1/2" for Type 8175 | ||||||||
| BU418339G | Burkert Cable Plug PG 13.5 for Type 8175 | ||||||||
| BU418340M | Burkert Cable Plug G 1/2" for Type 8175 | ||||||||
| BU427435A | Burkert Power Supply card 115/230 VAC for Type 8175 | ||||||||
| BU427998P | Burkert Instruction manual for transmitter Type 8175 - D/GB/F | ||||||||
|
|||||||||
|
|
|
|
|
|
|
|
|
|
