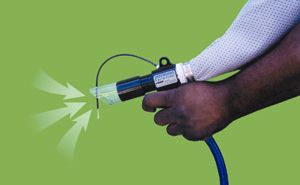

Deep
Hole Vac-u-Gun™
Blow chips loose
and vacuum them away in one step!
Ideal
for cleaning cavities and drilled holes!
|
| |
|
| What
Is The Deep Hole Vac-u-Gun? |
 |
| A low cost
solution to quickly removing chips and contaminants from grooves,
containers and drilled holes. The Deep Hole Vac-u-Gun replaces dangerous
blow guns that can cause chips or debris to fly in all directions.

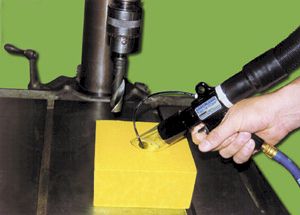

Simply position the Deep Hole Vac-u-Gun over the hole and press
the trigger. A small blow tube dislodges and lifts the chips while
the large suction tube vacuums them away. The operator is protected
from flying debris since all contaminants are contained within the
clear suction tube. It is perfect for cleaning holes up to 1-1/4"
(32mm) diameter at a depth of 18" (46cm). |
| How
the Deep Hole Vac-u-Gun Works |
 |

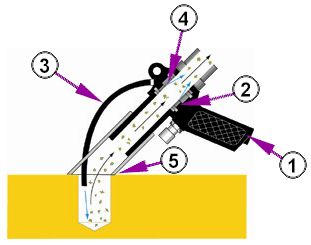

Compressed
air, normally 80-100 PSlG (5.5 - 6.9 BAR), flows through the inlet
(1) into an annular plenum chamber (2) when the trigger is depressed.
A small amount of air is injected into the blow tube (3) to provide
lift for the chips or debris. The larger airflow is injected into
the throat of the gun through directed nozzles (4). These jets of
air create a vacuum at the intake (5) which draws material in and
accelerates it through the unit. The chips or other particulate can
be exhausted into a filter bag or hose. |
Specifications
|
PRESSURE
SUPPLY
|
AIR
CONSUMPTION
|
|
PSIG
|
BAR
|
SCFM
|
SLPM
|
"H20
|
KPA
|
INLET
|
|
80
|
5.5
|
15
|
425
|
32
|
8
|
1/4
NPT
|
|
| Deep
Hole Vac-u-Gun Systems
|
|
|
|
|
|
Model
6094 Deep Hole
Vac-u-Gun Only
|
Model
6194 Deep Hole
Vac-u-Gun with Bag
|
Model
6394 Deep Hole
Vac-u-Gun All Purpose System
|
|
|
includes
Deep Hole Vac-u-Gun
and re-usable bag.
|
includes
Deep Hole Vac-u-Gun,
re-useable bag and 10' vacuum hose.
|
|
Accessories
| Model # |
|
Description |
| 9001 |
|
Auto Drain Filter Separator,
1/4 NPT, 73 SCFM (2067 SLPM) |
| 9005 |
|
Oil Removal Filter, 3/8 NPT,
1/4 NPT, 37 SCFM (1048 SLPM) |
|
|
|
|
| |
| |
| |
