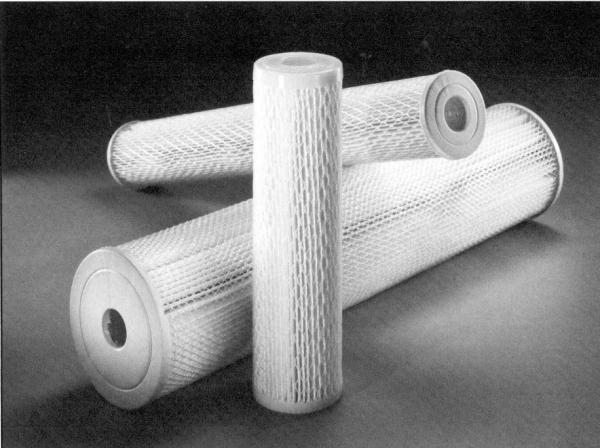

S1-Series Pleated Sediment Cartridges

S1 Series cartridges are manufactured from a pleated cellulose media and are designed for general water filtration purposes.

The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket.

• Pleated design maximizes dirt-holding capacity
• Designed for general water filtration purposes
• Recommended for chlorinated water supplies
• Economically priced
• Nominal 20-micron rating

S1 Product Brochure

ECP Series Pleated Cellulose Polyester Cartridges

ECP Series cartridges are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers.

This unique blend of materials provides a higher wet strength that regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop.

• Replaces CP and HFCP Series cartridges
• Special formulation of resin-impregnated cellulose and polyester fibers
• Provides higher wet strength than regular cellulose cartridges
• Minimal unloading and media migration

ECP Product Brochure

R Series Sediment Cartridges

R Series cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses.

The media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency.

• Pleated design maximizes dirt-holding capacity
• Versatile and reusable, allowing for a variety of uses
• Durable polyester media is bacteria- and chemical-resistant
• Nominal 30-micron rating (R30) and nominal 50-micron rating (R50)

R Series Product Brochure

P Series Spun-Bonded Polypropylene Cartridges

P Series cartridges are manufactured from pure 100% polypropylene fibers. The fibers have been carefully spun together to form a true gradient density from out to inner surfaces.

P Series cartridges are designed for purity. They will not impart taste, odor or color to the liquid being filtered when used within the recommended temperature limit. Additionally, the polypropylene construction provides superior chemical resistance and is not prone to bacterial attack.

P Series Product Brochure

PS Series Spun-Bonded Polypropylene Cartridges

PS Series cartridges are manufactured from poly spun-bonded filter cartridges are manufactured from pure 100% polypropylene fibers.

• Manufactured from pure 100% polypropylene
• Designed for purity and chemical compatibility
• Spun fibers form a true gradient density from outer to inner surfaces

PS Series Product Brochure

Polydepth® Series Polypropylene Cartridge

The Polydepth® filtration cartridge is constructed of thermally-bonded polypropylene microfibers to ensure high efficiency. The filter incorporates a rigid polypropylene center core for increased collapse strength and durability. This thermal bonded micro-fiber construction has minimal fiber release, consistent flow rate and superior filtration performance. It also is not brittle or prone to breakage problems like resin-bonded cartridges.

• Thermally-bonded polypropylene micro-fiber construction for higher filtration efficiency
• Consistent flow rate superior filtration performance
• Available in wide range of micron ratings and lengths
• Will not impart taste, odor or color to water being filtered
• Ideal for a wide variety of commercial filtration applications

Polydepth Series Product Brochure

DGD Series Gradient Density Cartridges

DGD Series cartridges are manufactured from 100% pure polypropylene and are sized for use in our Big Blue® Filter Housings.

DGD Series cartridges are designed for purity and will not impart taste, odor or color to the liquid being filtered. Additionally, the polypropylene construction provides superior chemical resistance and is not prone to bacterial attack.

• Manufactured from pure 100% polypropylene
• Designed for purity and chemical compatibility
• Spun fibers form a gradient density from outer to inner surfaces

DGD Series Product Brochure

CW/WP Series Polypropylene Wound Cartridges

CW and WP Series cartridges are manufactured from a durable polypropylene cord that is wound around a rigid polypropylene core. They are an economical solution to reduce fine sediment including sand, silt, rust and scale particles.

• String-wound design reduces fine sediment from a variety of fluids
• Withstands temperatures up to 165°F (73.9°C)
• Economically priced
• Nominal 10-, 30-, 50-micron rating (CW) and nominal 5-, 30-micron rating (WP)

CW/WP Series Product Brochure

CRE-1 Ceramic Cartridges

CRE-1 cartridges are manufactured from a sintered ceramic filtration media. They are designed and tested for the reduction of Cryptosporidium and Giardia cysts, and are ideal for fine sediment filtration applications.

• Specially designed for cyst reduction and fine sediment filtration applications
• 1/2" thick ceramic wall allows for many cleanings, extending cartridge life
• Nominal 1-micron rating

CRE Series Product Brochure
