| STAINLESS STEEL ARMOR CABLE LEAD PROTECTION |
 |
| Stainless
steel armor cable is the best protection for use where lead wires
experience abrasion. See chart below for the additional dimension

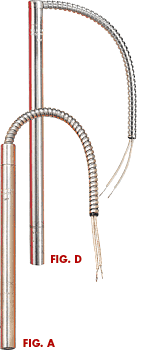

the Mighty Watt Plus Figure A and D add to the sheath length of stock
items. When ordering non-stock Fig. A and Fig.
D items, specify the overall sheath length. 14" high temperature
(850° F/450° C) leads with 12" cable is standard. Specify additional length. |
| Non-Stock
Armor Cable Protection |
| Dia. |
Minimum
Unheated* |
Cable
O.D. |
| Fig.
A |
Fig.
D |
| 1/8" |
-- |
-- |
-- |
| 1/4" |
1-1/2" |
1-1/2" |
1/4" |
| 5/16" |
1-1/2" |
1-1/2" |
1/4" |
| 3/8" |
1-1/2" |
1-1/2" |
3/8" |
| 1/2" |
1-1/2" |
1-1/2" |
3/8" |
| 5/8" |
1-9/16" |
1-9/16" |
1/2" |
| 3/4" |
1-7/8" |
1-7/8" |
1/2" |
| 15/16" |
1-7/8" |
1-7/8" |
1/2" |
| 1" |
1-7/8" |
1-7/8" |
1/2" |
| 1-1/4" |
1-7/8" |
1-7/8" |
1/2" |
|
| 2
Day Shipment Mighty Watt Plus Armor Cable Protection |
| Dia. |
Adds
to Length |
| Fig.
A |
Fig.
D |
| 1/4" |
1/2" |
5/8" |
| 3/8" |
1/2" |
3/4" |
| 1/2" |
1/2" |
3/4" |
| 5/8" |
1/2" |
13/16" |
| 3/4" |
1/2" |
13/16" |
Add 3/8" to
above dimension for total cold section at lead end. |
* At lead
end. Standard cold sections can be increased. Consult Ogden
for metric diameter dimensions. |
CONDUIT COUPLER PROTECTION
  |
Flexible
conduit is attached with a copper coupler over-lapping
the heater by 1/4". Leads are 14" long and cable
12" unless specified.
Fig. 1B and 1C can be attached to stock items. |
| Diameter |
A |
B |
Cable
O.D. |
| 1/4" |
3/4" |
7/8" |
1/4" |
| 3/8" |
3/4" |
15/16" |
3/8" |
| 1/2" |
1" |
1-3/16" |
3/8" |
| 5/8" |
1-1/16" |
1-7/16" |
1/2" |
| 3/4"
& larger |
1-5/16" |
1-7/8" |
1/2" |
|
| Diameter |
Minimum
Unheated* |
| Fig.
1B |
Fig.
1C |
| 1/4" |
1/8" |
1/8" |
| 3/8" |
7/8" |
7/8" |
| 1/2" |
7/8" |
7/8" |
| 5/8" |
7/8" |
7/8" |
| 3/4"
& larger |
7/8" |
7/8" |
* Standard cold
sections can be reduced or increased |
Ordering Number Example: From Current Stock List:1/2" x 5-3/4" 1000W
240V [MWEJ05N0116] Add 36" Fig. A Leads [MWEJ05N0116-A3]
• (overall length now 6-1/4")
Using the same item, add
48" Fig. D leads
[MWEJ05N0116-D4]
(overall length now 6-1/2") |
| |
|
|
|
