Applications:

• Hot Liquids
• Salt Water Fisheries
• Hot Water
• Toluene/Xylene
• Hydraulic Oils
• Alcohols
• Vegetable Oils
• Gasoline
• Photographic

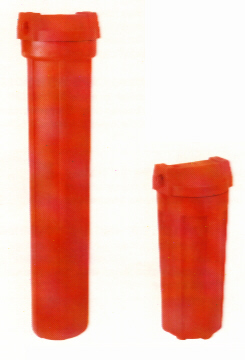

The Hot/High Pressure 3/4" (19 mm) NPT filter housings are manufactured from glass reinforced nylon. Standard sealing and closure are achieved through the use of a 241 silicone 0-ring. Housings are available in two lengths: 10" and 20" (254 and 508 mm). One cap style is available (standard cap, no pressure relief, no mounting bosses).

Extra thick glass reinforced nylon construction allows these housings to be used on a wide range of temperatures and/or pressures. In addition, these housings are excellent for industrial applications involving organic solvents*, sea water, alcohol, petroleum and vegetable oils. High temperature/high pressure combination along with the excellent chemical compatibility makes these filter housings an economical alternative to stainless and carbon steel vessels. For detailed information call for our operating pressure vs. temperature chart.

Two lengths available for flow rates to 40 GPM (151 LPM)

• #20 Hot/High takes a 20" to 201/8" (508 to 511 mm) cartridge with flow rates of 1 io 20 GPM (4 to 76 LPM).
• #10 Hot/High takes a 9 3/4" to 9 7/8" (248 to 251 mm) cartridge with flow rates of 1 to 10 GPM (4 to 38 LPM).

MAXIMUM PRESSURE: 200 psi (13.8 bar)
MAXIMUM TEMPERATURE: 200'F (93.3'C)
