Applications:

• Photographic Equipment
• Std. D.I. Pre/Post Filtration
• Vending Machines
• Main Line Residential Water
• Safety Equipment
• Pre/Post Water Softeners
• Chillers

Standard 3/4" (19mm) NPT Housings are manufactured of polypropylene. Leak-proof sealing is accomplished by cap compression against a top seated 241 Buna-N O-ring in the sump. The Acme square thread closure allows for years of cartridge change outs without failure. Thick walls and multiple ribs make these housings ideal for industrial applications. The clean look, (FDA grade plastic) and light weight make them preferred in residential and commercial uses. Their polypropylene construction has excellent chemical resistance for use with most acids, alcohol, ammonia, oils, plating solutions, beverages and water. Housings without pressure relief buttons are recommended for industrial chemical applications.

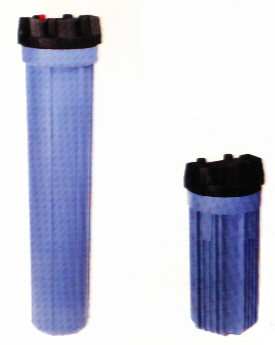

Two body lengths are available for sizing flow rates of 1 to 20 GPM (4 to 76 LPM)

• #10 housings take a 9 3/4" to 9 7/8" (248 to 251mm) long cartridge with flow rates of 1 to 10 GPM (4 to 38 LPM).
• #20 housings take a 20" to 20 1/8" (508 to 511mm) long cartridge with flow rates of 1 to 20 GPM (4 to 76 LPM).

NOTE: Opaque caps and sumps are interchangeable.

MAXIMUM PRESSURE: 125 psi (8.62 bar)
MAXIMUM TEMPERATURE: 125ºF (52ºC)
DIMENSIONS:
#20: 22 3/8" by 5 1/8" (568 by 130mm), 4.40 lbs. (2.0 kg)
#10: 12 1/4" by 5 1/8" (311 by 130mm), 2.94 lbs. (1.3 kg)
