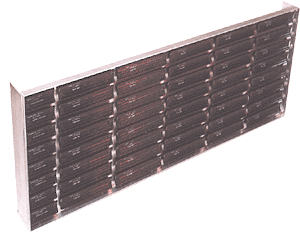

• Modular Panels Modular design allows panels to be grouped for processing larger areas
• The light weight of the individual panels makes installation easy
• Placement of individual units permit uniform radiant heat pattern
• Full 1 inch insulation reduces surface heat loss and lower ambient wiring temperatue.
• Louvered terminal cover maintains low terminal area temperatue Sturdy panel construction
• Housing is supplied with terminal cover and required ceramic terminal blocks

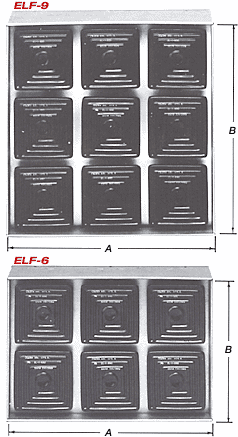

• ELF-6 can be wired for 240V 1 phase, 240V 3 phase, 480V 1 phase or 480V 3 phase. ELF-9 can be wired for 240V 1 phase or 3 phase

Black Body Ceramic Infrared Heaters are sold separately and are mounted and wired at the installation.

Special sized and rated panels can be built using any size and combination of heaters to match specific areas or processes.
