Style 003  Performance Series

Exchanger Housings - Triple pass air flow for improved efficiency and cool outer shell

003 Exchanger Housing
Part# Sylvania # Type A B C D E
CO003-10026

029763

10" Housing 1-1/2" 9" 10" 11/16" 3/8"NPT
CO0031-0027

057088

13" Housing 2-1/8" 11-7/8" 12-7/8" 1-3/8" 3/4"NPT


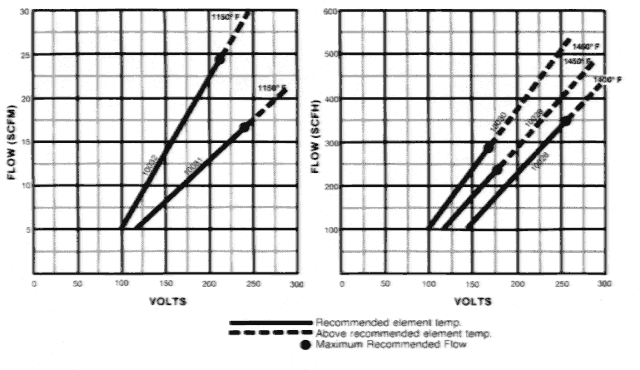

Replaceable Elements - Standard Wattage Tolerances +5%, -10%

003 Replacement Elements
Part# Sylvania # Type A B 60V 120V 240V

10" HOUSING

CO00-310028 029765 2000W 8-3/16" 5/8" 125 500 2000
CO003-10029 029766 2800W 8-3/16" 5/8" 175 700 2800
CO003-10030 029767 3600W 8-3/16" 5/8" 225 900 3600
13" HOUSING
CO003-10031 040291 5000W 10-3/4" 1-1/4" 312 1250 5000
CO003-10032 040292 6000W 10-3/4" 1-1/4" 375 1500 6000


Style 003 Flanged Version


Part#
A
B
C
D
E
F
G
H
Element Part#
Watts
Volts
CO003-10181

11-3/16

8-11/16

1/2

1/4

1-1/2

1/2NPT

3/8NPT

2-1/2

CO00310028 2000 240

CO00310029 2800 240
CO00310030 3600 240
CO003-10182 13-3/16 11-7/16 3/4 1/4 2-1/8 1-1/4NPT 3/4NPT 4 CO00310031 5000 240
  CO00310032 6000 240


Gasketed flanged inlet for strong air tight seal.

  Pipe thread connections at both inlet and outlet end for in-line applications.
  Triple pass heat exchanger housing which maximizes transfer efficiency while maintaining a cool outer shell.
  Replaceable heating elements with wattage choices.


Style 004  Accessories

CO004-10033 Pressure Switch - Adjustable 0-30 psi, Proof 45 psi
00410033.gif (8284 bytes) 10" Exchanger Pressure Switch - Sylvania # 030537
For 10" Heat Exchanger

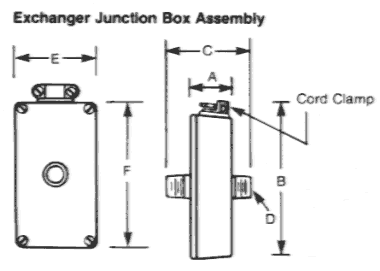

CO004-10042 Exchanger Junction Box Assembly - For 10" Heat Exchanger


Junction Box 10" Exchanger (Junction Box Serp II) - Sylvania # 041462
A=1-7/32", B=4-3/8", C=2-1/2", D=3/8", E=2-3/8" F=4-3/8"

CO004-10034 Pressure Switch - Adjustable 0-2.9 psi, Proof 5 psi
00410033.gif (8284 bytes) 13" Exchanger Pressure Switch - Sylvania # 040303
For 13" Heat Exchanger

CO004-10043 Exchanger Junction Box Assembly - For 13" Heat Exchanger


Junction Box 13" Exchanger - Sylvania # 040293
A=2-3/16", B=4-11/16", C=4-1/2", D=3/4", E=3-11/16" F=4-11/16"

CO004-10035 Relay
00410033.gif (8284 bytes) Relay for 13" Exchanger - Sylvania # 040304
Required for loads 15 - 25 Amps

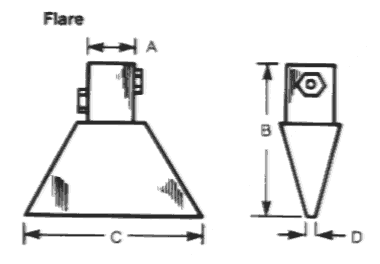

CO004-10044 Flare Fitting Only - For 10" Heat Exchanger


10" Exchanger Flare (for Heater A) - Sylvania # 057086
A=3/4" B=3", C=2-1/2", D=1/16"

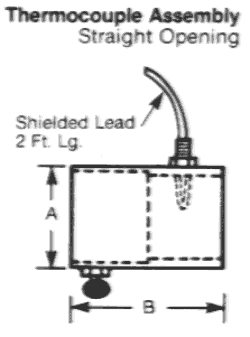

CO004-10036 Thermocouple Assembly - Straight Opening, includes type "K" thermocouple
00410036.gif (6888 bytes) K T/C Assembly for 10" Exchanger - Sylvania # 029485
For 10" Heat Exchanger   A=3/4", B=1-1/2"

CO004-10037 Thermocouple Assembly
  K T/C Probe only - Exch (K T/C Probe only Serp II & IV) - Sylvania # 039272

CO004-10038 Thermocouple Assembly - Straight Opening, includes type "K" thermocouple
00410036.gif (6888 bytes) K T/C Assembly for 13" Exchanger - Sylvania # 040299
For 13" Heat Exchanger  A=1-1/2", B=1-1/2"

CO004-10040 Nozzle
  10" Exchanger Nozzle (Nozzle Serp II) - Sylvania # 046992

CO004-10041 Nozzle
  10" Exchanger Nozzle w/ T/C Port (Nozzle w/ T/C Port Serp II) - Sylvania # 047137

CO004-10045 Flare Fitting with Thermocouple Port - For 10" Heat Exchanger


10" Exchanger Flare with T/C Port = Sylvania # 041612
A=3/4" B=3", C=2-1/2", D=1/16"

CO004-10046 Flare Fitting Only - For 13" Heat Exchanger


13" Exchanger Flare - Sylvania # 040296
A=1-1/2", B=4-3/16", C-4", D=1/4"

CO004-10047 Flare Fitting with Thermocouple Port - For 13" Heat Exchanger


13" Exchanger Flare with T/C Port - Sylvania # 040297
A=1-1/2", B=4-3/16", C-4", D=1/4"

CO004-10149 Base Adaptor Assembly
  Base Adaptor Assembly / 13" Housing - Sylvania # 042339
