Style 001 Flameless Electric Air Heaters

Order Online

Performance Series

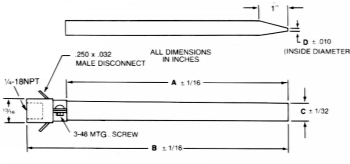

Style 001 Flameless Air Heater

View printable PDF file

Standard Heater Specifications: Wattage at Standard Voltages
Part # Type A B C D 60V 120V 240V
CO001-10001 OPEN
6.875
8.25
.410

-

115 465 1850
CO001-10002 NOZZLE
7.875
9.25
.410
.065 115 465

*

CO001-10003 OPEN
7.75
9.125
.410

-

210 850 *
CO001-10004 NOZZLE
8.75
10.125
.410
.065 210 850 *
CO001-10005 OPEN
3.875
5.25
.410

-

240 960 *
CO001-10006 NOZZLE
4.875
6.25
.410
.065 240 960 *
CO001-10007 OPEN
3.875
5.25
.410

-

480 * *
CO001-10008 NOZZLE
4.875
6.25
.410
.065 480 * *
CO001-10009 OPEN
6.875
8.25
.594
- 290 1150 4650
CO001-10010 NOZZLE
7.875
9.25
.594
.115 290 1150 *

Standard Wattage Tolerances +5%, -10%

*not recommended

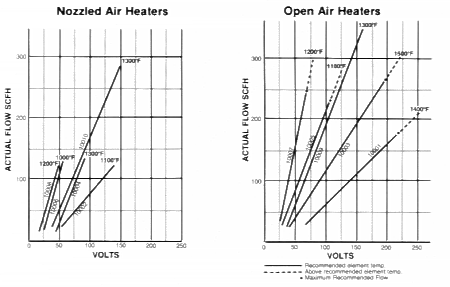

Graph
  • Standard Outer Casing - quartz
  • Standard Air Connection - female 1/4-18NPT.
  • Option - 3/8 OD Tubing Fitting (Add "T" to end of part number)

002 Accessories and Options for Style001 heaters

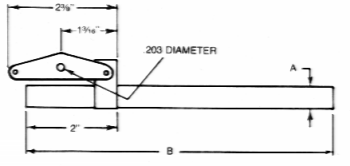

Outer Shield Open - Provides better heating efficiency and protection against accidental breakage.
Part Number
Used With

A

B

CO002-10012
CO001-10001
1/2 6-3/4
CO002-10011
CO001-10003
1/2 7-5/8
CO002-10013
CO001-10005
1/2 3-3/4
CO002-10013
CO001-10007
1/2 3-3/4
CO002-10014
CO001-10009
11/16 6-3/4

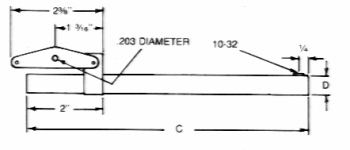

Outer Shield Open with Thermocouple Port
Part Number Used With

C

D

CO002-10082
CO001-10001
7-3/8
1/2
CO002-10083
CO001-10003
8-1/4
1/2
CO002-10084
CO001-10005
4-3/8
1/2
CO002-10084
CO001-10007
4-3/8
1/2
CO002-10085
CO001-10009
7-3/8
11/16

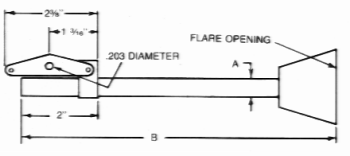

Outer Shield Flare - Provides a wider heat distribution area. For use with open heaters only.

Part Number

Used With

B Flare Opening 001_05.gif (13628 bytes)
C002-10015
001-10001
8-3/8
2 x .062
C002-10016
001-10003
9-1/4
2 x .062
C002-10017
001-10005
5-3/8
2 x .062
C002-10017
001-10007
5-3/8
2 x .062
C002-10018
001-10009
8-3/8
2-1/2 x .062

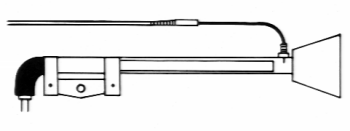

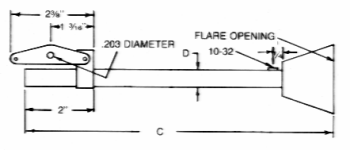

Outer Shield Flare with Thermocouple Port - All shields made with 300 series stainless steel.
Part Number

Used With

B Flare Opening




C002-10077
001-10001
1/2
2 x .062
C002-10078
001-10003
1/2
2 x .062
C002-10079
001-10005
1/2
2 x .062
C002-10079
001-10007
1/2
2 x .062
C002-10080
001-10009
11/16
2-1/2 x .062
Thermoplastic Male Connectors  1/4-18NPT
Elbow
Straight
Part Number Used With Part Number Used With
C002-10022
1/4" Tubing
C002-10021
1/4" Tubing
C002-10024 3/8" Tubing C002-10023 3/8" Tubing
Polyethylene Tubing
Part Number O.D.
C002-10019 3/8"
C002-10020 1/4"
Thermocouples Exposed Junction - 3' Std. length
Part Number Type
C002-10087 "J"
C002-10088 "K"

Metal Shell Air Heaters

These fast responding heaters deliver up to 1400F air temperatures through a protective metal shell. The element design isnures faster response., higher temperature, and longer life than any other heater in this type of package on the market today.
  • Air temperatures up to 1400°F.
  • Choice of wattages up to 1250 watts.
  • Flow rates up to 400 SCFH.
  • Copper tee with 3/8" NPT air connection.
  • Long life performance.
  • Epoxy sealed 2 foot leads.
  • 1/2" diameter 304 SS body.
  • High Temperature ferrous metal alloy element.

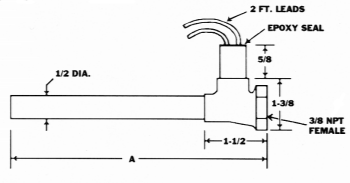

Metal Shell Style 001 Air Heater
Part # Watts Volts A Min. Flow @ 120V
001-10209 450 120 7-1/2" 50 SCFH
001-10210 600 120 7-1/2" 75 SCFH
001-10211 800 120 8-1/2" 110 SCFH
001-10212 1000 120 8-1/2" 130 SCFH
001-10213 1250 120 8-1/2" 180 SCFH
