Style 007 Performance and Style 009 Special Application Heaters |
 |
| Style 007 |
Style
009 |
| Performance Heaters |
Special Application
Heaters |
|
| The Style
007 Fluid Heater uses the same element configuration as the Style
001 and 003, but in a stainless steel pipe. This construction is suited
to in-line applications where pipe threads are required at both inlet
and outlet ports. Electrical terminations are offered in the form
of lead wires and as feedthrus rated up to 150 psi. These heaters
can be used to heat fluids other than air as long as the fluid is
non-conductive and does not chemically react with 300 series stainless
steel, silver solder, nickel, aluminum oxide or the epoxy potting
material used on the leaded model. This product must be properly grounded
and fused. |

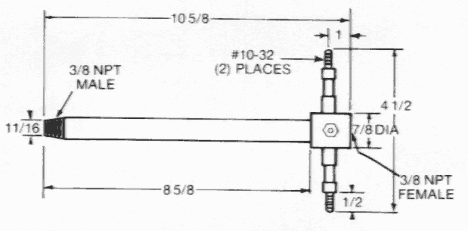

| CO007-10133 |
3/8"
Pipe 800W 120V, Feedthru terminations |
 |
Sylvania
# 038821 |
| |
|

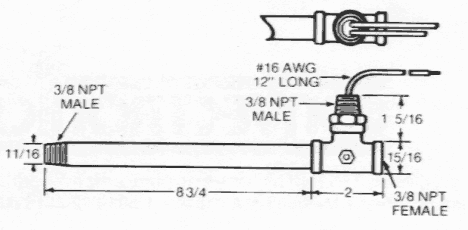

| CO007-10134 |
3/8"
Pipe 800W 120V, Lead wire terminations |
 |
Sylvania
# 038822 |
| |
|

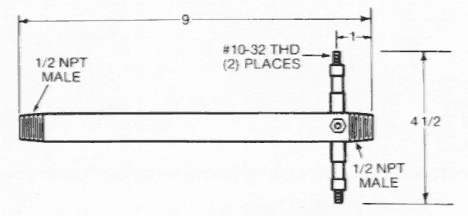

| CO007-10135 |
1/2"
Pipe 4000W 220V, Feedthru terminations |
 |
Sylvania
# 038823 |
| |
|

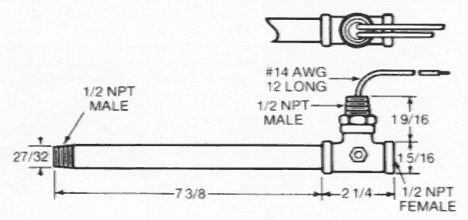

| CO007-10136 |
1/2"
Pipe 4000W 220V, Lead wire terminations |
 |
Sylvania
# 038824 |
| |
|

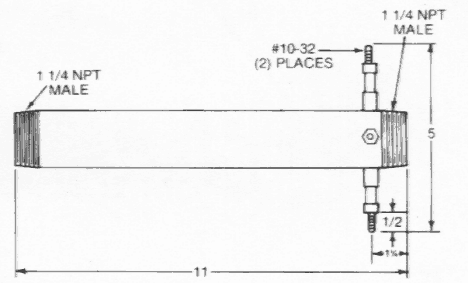

| CO007-10137 |
1-1/4"
Pipe 6000W 220V, Feedthru terminations |
 |
Sylvania
# 038825 |
| |
|

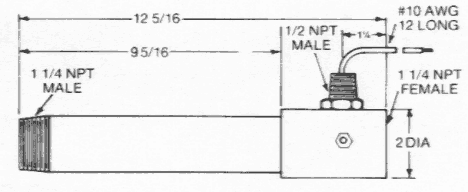

| CO007-10138 |
1-1/4"
Pipe 6000W 220V, Lead wire terminations |
 |
Sylvania
# 038826 |
| |
|
|

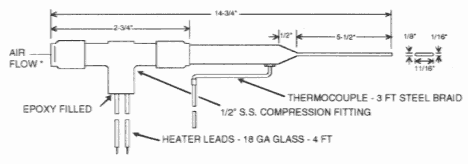

| CO009-11178 |
Special
Application Heater |
 |
Heater
inflation nozzle for twin sheet vacuum forming of plastics
This heater was designed to deliver heated air between two plastic
sheets so that twin sheet forming can be accomplished in a standard
shuttle vacuum former. The input air port is connected to a filtered
regulated air source. The electrical connections are made through
temperature controller #006-10062 to a 120 volt source. The heated
air is delivered between the sheets by means of a rectangular stainless
steel tube 1/8" x 11/16" x 5-1/2" long. The air flow
rate is normally set between 50 - 100 cubic feet per hour and the
temperature is set between 260-330 F,
depending on the material being formed. The performance curves for
this heater show that the required voltage for these conditions is
in the 30-40 volt range. This low operating voltage and the fast response
of the heater (low thermal mass) dictate the need for the controller/power
module package which has a voltage limiting feature. |
| |
|
| CO009-10252 Convectronics
Blower 009-10252, 3/4HP, 115/230V |
| |
Regenerative
Blower 009-10252, 3/4HP, 115/230V Single Phase, Max. Flow - 34 SCFM |
| |
|
| CO009 10253 Convectronics
Pressure Gauge 009-10253, 0-2PSI |
| |
Pressure
Gauge 009-10253, 0-2PSI |
| |
|
| CO009-10254 Convectronics
Filter 009-10254 |
| |
Input
Filter 009-10254 |
|
| |
| |

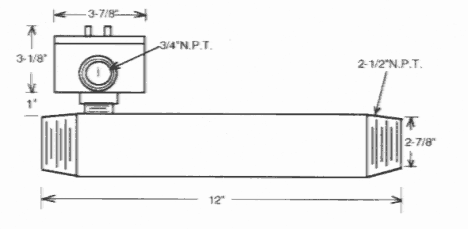

| CO00-710197 |
2-1/2"
NPT 304SS, Cast Alum Junction Box |
 |
This heater
is intended for heating air at high flow rates (up to 60 SCFM) to
1000F
maximum and features threaded inlet and outlet connections.
| |
- High
Volume Flow to 60 SCFM (Pressure drop
across heater is apx. 1.5 psi)
|
| |
- Temperatures
to 1000F
maximum at outlet.
|
| |
- 18
kW at 240 volts 3 phase.
|
| |
- Heating
Element of high temperature ferrous alloy
|
| |
- 304
Stainless Steel Shell, 2-1.2" NPT
|
| |
- Cast
alum junction box with 3/4" hub.
|
|
| |
|
|
|
|
|
