Style 005 Convection Heaters |
 |
||
 |
Convectronics offers the same coil figuration used in the Styles 1 and 3 Air Heaters as a design concept for convection heating applications. This construction is stronger, more efficient, and has a longer life than other types of convection heating elements ** All elements may be run in still air, except for those marked with (*), which require moving air for 230V operation. |
|

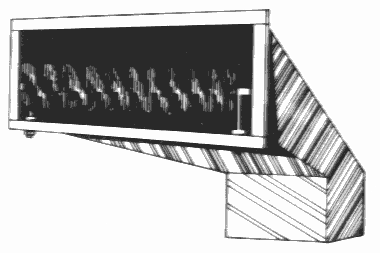

| Single Element - Both connections Same End |
|
|||||
| Part # | A | B | C | 120V | 230V | |
|
CO00510048
|
1-1/2"
|
5-1/2"
|
2"
|
400W
|
1450W
|
|
|
CO00510049
|
1-1/2"
|
5-1/2"
|
2"
|
750W
|
2700W*
|
|
|
CO00510050
|
1-1/2"
|
8-1/4"
|
2"
|
600W
|
2150W
|
|
|
CO00510051
|
1-1/2"
|
8-1/4"
|
2"
|
1150W
|
4250W*
|
|

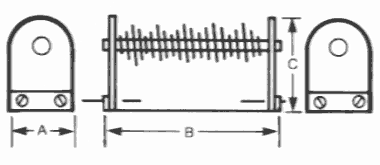

| Single Element - Connections at Opposite Ends |
|
|||||
| Part # | A | B | C | 120V | 230V | |
|
CO00510052
|
1-1/2"
|
5-1/2"
|
2"
|
400W
|
1450W
|
|
|
CO00510053
|
1-1/2"
|
5-1/2"
|
2"
|
750W
|
2700W*
|
|
|
CO00510054
|
1-1/2"
|
8-1/4"
|
2"
|
600W
|
2150W
|
|
|
CO00510055
|
1-1/2"
|
8-1/4"
|
2"
|
1150W
|
4250W*
|
|

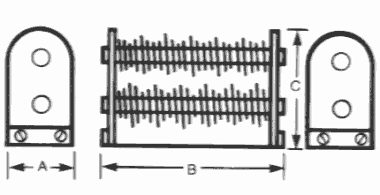

| Dual Element - Both Connections Same End Single Wattage |  |
|||||
| Part # | A | B | C | 120V | 230V | |
|
CO00510056
|
1-1/2"
|
5-1/2"
|
3-3/4"
|
350W
|
1350W
|
|
|
CO00510057
|
1-1/2"
|
8-1/4"
|
3-3/4"
|
600W
|
2150W
|
|
| Dual Element - Three Connections One End, Multiple Wattages (Both in Series or Parallel) | |
|||||
| Part # | A | B | C | 120V | 230V | |
|
CO00510058
|
1-1/2"
|
5-1/2"
|
3-3/4"
|
400W
in Series
|
1350W
in Series
|
|
|
CO00510059
|
1-1/2"
|
5-1/2"
|
3-3/4"
|
600W
in Parallel
|
2150W
in Parallel
|
|
|
CO00510060
|
1-1/2"
|
8-1/4"
|
3-3/4"
|
600W
in Series
|
2150W
in Series
|
|
|
CO00510061
|
1-1/2"
|
8-1/4"
|
3-3/4"
|
2300W
in Parallel
|
8550W
in Parallel*
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
